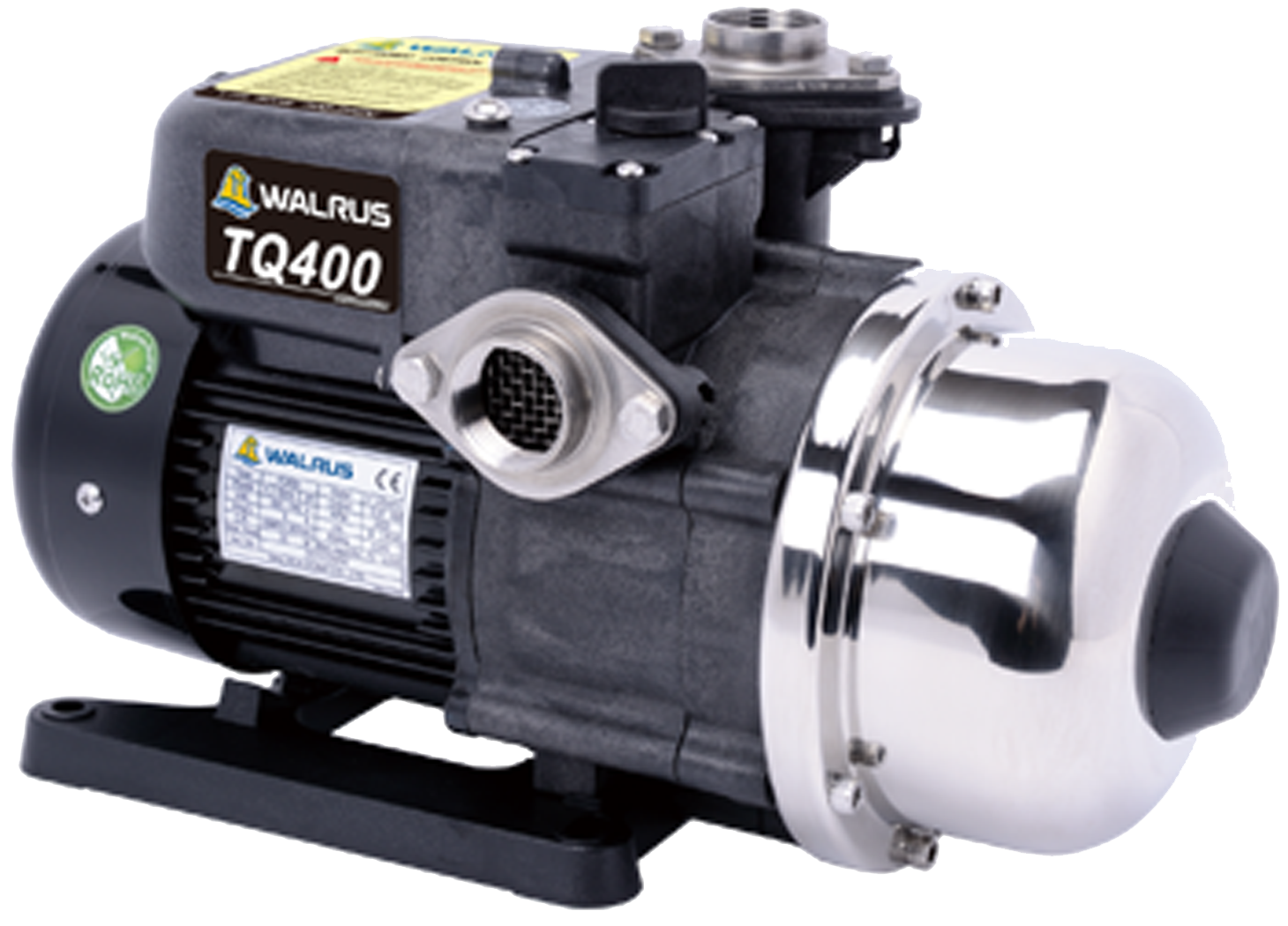

| In residential, commercial and light industrial applications where low or inadequate water pressure exists, WALRUS TQ series pumps are uesd for water supply and pressure boosting. It is suitable for boosting pressure from underground or surface water supplies. |
| |
|
| Operating Conditions |
| |
|
| • |
Ambient temperature: max. +40°C |
| • |
Liquid temperature: +4°C to +40°C |
| • |
System Pressure : max. 8.5 kg/cm² |
| • |
Relative humidity: max. 85% (RH) |
| |
|
| Features |
| |
|
| • |
The TQ is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure
which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required. |
| • |
Compact design and quiet operation make the TQ series suitable for many applications. |
| • |
The TQ is constructed from the top quality corrosion resistant materials. |
| • |
Pump has built-in dry-run shut off with automatic reset function. |
| • |
The motor has built-in thermal overload to protect against high operating temperatures and over current. (Single phase motor only) |
| • |
The TQ has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system. |
| • |
The pumps will lift water up to 7.6 m with foot valve and pump suction piping filled with water. |
| |
|
| |
|
