| Pioneer brand products focus on general purpose pumps for building service and construction industry. The submersible pumps offer different power for different applications at reasonable costs. |
| |
|

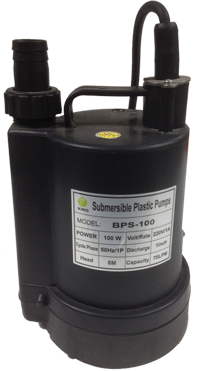

| BPS Series |
| |
|
| The BPS series are light weight and compact for portable residential usage. |
| |
|
| • |
Application: |
| |
| ▸ |
Sump-pit and garden spraying |
| ▸ |
Fountain and waterfall |
| ▸ |
Toilet and laundry |
|
|
| • |
Specification: |
| |
| ▸ |
Maximum flow rate: 70 LPM |
| ▸ |
Maximum head: 6 m |
| ▸ |
Power: 1/6 HP |
|
|
| |
|

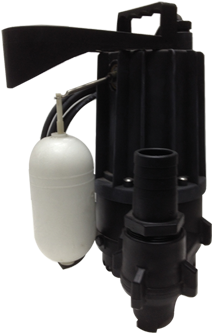

| U-72 |
| |
|
| The U-72 features non-clogging vortex impeller which allows 10mm solids to pass through. |
| |
|
| • |
Application: |
| |
| ▸ |
Sump-pit and garden spraying |
| ▸ |
Fountain and waterfall |
| ▸ |
Toilet and laundry |
|
|
| • |
Specification: |
| |
| ▸ |
Maximum flow rate: 160 LPM |
| ▸ |
Maximum head: 6 m |
| ▸ |
Power: 1/3 HP |
|
|
| |
|

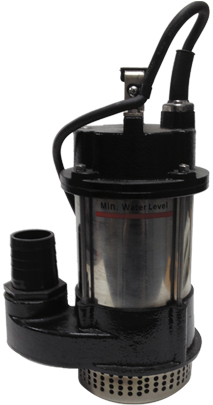

| KS Series |
| |
|
| The KS series are pumps of 110V which are suitable for the construction site applications. |
| |
|
| • |
Application: |
| |
| ▸ |
Cellar drainage and Groundwater effluent |
| ▸ |
Civil engineering and construction |
| ▸ |
Agriculture and irrigation |
|
|
| • |
Specification: |
| |
| ▸ |
Maximum flow rate: up to 420 LPM |
| ▸ |
Maximum head: up to 14 m |
| ▸ |
Power: up to 1 HP |
|
|
| |
|

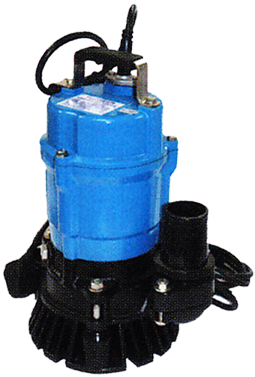

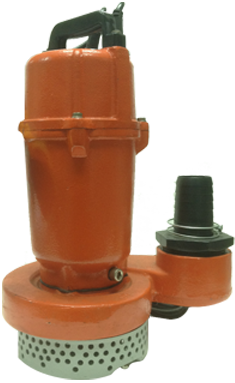

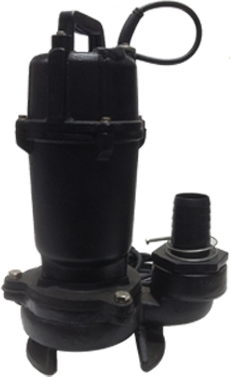

| PM, PME and PMEU Series |
| |
|
| The PM, PME and PMEU series are used for drainage of sand-carrying water in construction and civil engineering works. They have different inlet configuration to allow different sizes of solids to pass through for their applications. |
| |
|
| • |
Application: |
| |
| ▸ |
Civil engineering and construction |
| ▸ |
Tunnel and caisson drainage |
| ▸ |
General pumping purpose |
|
|
| • |
Specification: |
| |
| ▸ |
Maximum flow rate: up to 380 LPM |
| ▸ |
Maximum head: up to 20 m |
| ▸ |
Power: up to 1 HP |
|
|
| |
|

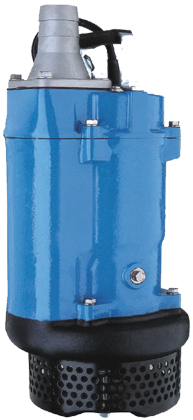

| KBZH Series |
| |
|
| The KBZH series feature rigid cast iron body for long-lasting durability and high-endurance mechanical seal for greater depth application. They are suitable for pumping slurries with low viscosity and small solids. |
| |
|
| • |
Application: |
| |
| ▸ |
Civil engineering |
| ▸ |
Mines, quarries and coal ore |
| ▸ |
Sewage treatment plants |
|
|
| • |
Specification: |
| |
| ▸ |
Maximum flow rate: up to 156 m3/h |
| ▸ |
Maximum head: up to 48.5 m |
| ▸ |
Power: up to 20 HP |
|
|
| |
|

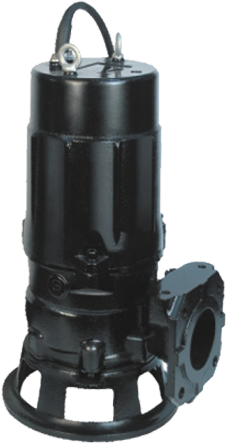

| C Series |
| |
|
| The C series are submersible sewage pumps. The base of the pumps can be chosen as free standing or guide rail fitting configuration. |
| |
|
| • |
Application: |
| |
| ▸ |
Agriculture |
| ▸ |
Mines |
| ▸ |
Building construction |
|
|
| • |
Specification: |
| |
| ▸ |
Maximum flow rate: up to 60 m3/h |
| ▸ |
Maximum head: up to 17 m |
| ▸ |
Power: up to 5 HP |
|
|
| |
|

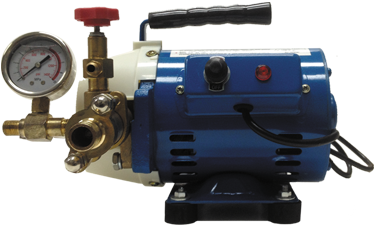

| DQX-35 |
| |
|
| The DQX-35 is an electric high pressure cleaning pump in simple configuration for general purpose cleaning. It is an economical alternative of other high-pressure cleaning machines. |
| |
|
| • |
Specification: |
| |
| ▸ |
Pressure: up to 35 kg/cm2 |
| ▸ |
Power: 0.25kW |
| ▸ |
Flow rate: 174 l/h |
|
|
| |
|
| SY-60A |
| |
|
| The SY-60A is a hand testing pump which provides a handy way of testing leakage in pipes. |
| |
|
| • |
Specification: |
| |
| ▸ |
Maximum pressure: 5 MPa |
| ▸ |
Rate of water suction per stroke: 13 ml |
| ▸ |
Water tank capacity: 5 L |
|
|
| |
|
| |
|
