| The product range of the italian brand Pentax is vast and thus the products are able to meet many different requirements with quality at an affordable price. |
| |
|
| PM Series |
| |
|
| The PM series are peripheral positive displacement pumps for small household systems and simple industrial applications. They have superior performance in view of the required output. |
| |
|
| • |
Features: |
| |
| ▸ |
Impeller: brass |
| ▸ |
Mechanical seal: ceramic-graphite |
| ▸ |
Motor shaft: stainless steel AISI 416 |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow rate: up to 3 m3/h |
| ▸ |
Head: up to 79 m |
| ▸ |
Liquid temperature: 0 °C to 90 °C |
|
| |
|

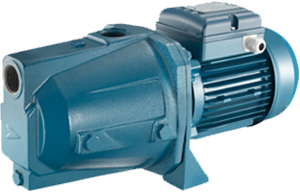

| CAM Series |
| |
|
| The CAM series are self-priming centrifugal pumps for water supplies (even if mixed with gas) in small household systems connected to autoclave tanks. They are used for transferring liquids and emptying tanks as well as gardening. |
| |
|
| • |
Features: |
| |
| ▸ |
Impeller: Noryl® or brass |
| ▸ |
Mechanical seal: ceramic-graphite |
| ▸ |
Motor shaft: stainless steel AISI 416 |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow rate: up to 5 m3/h |
| ▸ |
Head: up to 37 m |
| ▸ |
Liquid temperature: 0 °C to 50 °C |
|
| |
|
| CR Series |
| |
|
| The CR series are centrifugal pumps for small and medium agricultural applications. They have open rotor which allows small solid items to pass through (max diameter of 10 mm). |
| |
|
| • |
Features: |
| |
| ▸ |
Impeller: Noryl or brass |
| ▸ |
Mechanical seal: ceramic-graphite |
| ▸ |
Motor shaft: stainless steel AISI 416 |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow rate: up to 17 m3/h |
| ▸ |
Head: up to 20 m |
| ▸ |
Liquid temperature: |
| |
Noryl® impeller: 0 °C to 50 °C |
| |
brass impeller: 0 °C to 90 °C |
|
| |
|
| CM Series |
| |
|
| The CM series are single impeller centrifugal pumps which are extremely silent and suitable for household, civil and industrial applications. They have a very flat peformance curve to guarantee constant pressure even when the flow fluctuates. |
| |
|
| • |
Features: |
| |
| ▸ |
Impeller: |
| |
Noryl® (CM45) |
| |
Noryl® or brass (CM 50-314) |
| |
brass (CM 400-550) |
| ▸ |
Mechanical seal: ceramic-graphite |
| ▸ |
Motor shaft: |
| |
stainless steel AISI 416 (CM 45-100) |
| |
stainless steel AISI 303 (CM 164-550) |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow rate: up to 21 m3/h |
| ▸ |
Head: up to 57 m |
| ▸ |
Liquid temperature: |
| |
Noryl® impeller: 0 °C to 50 °C |
| |
brass impeller: 0 °C to 90 °C |
|
| |
|
| CS Series |
| |
|
| With 2", 3" or 4" outlet, the CS series are single impeller centrifugal pumps providing medium head and high flow rate. They are mainly used in agriculture and applications requiring high flow rate. |
| |
|
| • |
Features: |
| |
| ▸ |
Impeller: cast iron / brass |
| ▸ |
Mechanical seal: ceramic-graphite |
| ▸ |
Motor shaft: |
| |
stainless steel AISI 303 |
| |
stainless steel AISI 416 (CS 75-120) |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow rate: up to 96 m3/h |
| ▸ |
Head: up to 17 m |
| ▸ |
Liquid temperature: 0 °C to 90 °C |
|
| |
|

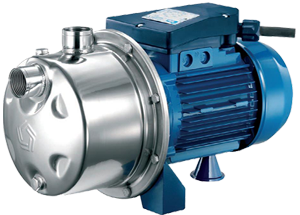

| INOX Series |
| |
|
| The INOX series are self-priming centrifugal pumps for water supplies (even if mixed with gas) in small household systems connected to autoclave tanks. They are used for transferring liquids and emptying tanks as well as in medium sized industrial applications and gardening. |
| |
|
| • |
Features: |
| |
| ▸ |
Impeller: Noryl® or stainless steel AISI 304 |
| ▸ |
Mechanical seal: ceramic-graphite |
| ▸ |
Motor shaft: stainless steel AISI 416 |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow rate: up to 3 m3/h |
| ▸ |
Head: up to 43 m |
| ▸ |
Liquid temperature: 0 °C to 50 °C |
|
| |
|

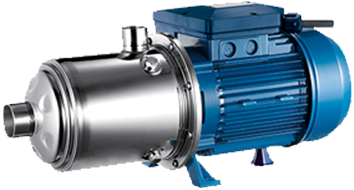

| ULTRA Series |
| |
|
| The ULTRA series are stainless steel multistage horizontal pumps for pumping clean non-loaded fluids, drinking and glycol water. They are used for irrigation, water treatment, pressurizing systems, washing systems, heating and air conditioning systems. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Impeller: |
| |
Noryl® (ULTRA, ULTRA A) |
| |
stainless steel AISI 304 (ULTRA S, ULTRA SA) |
| ▸ |
Mechanical seal: |
| |
ceramic-graphite (ULTRA or ULTRA S with 6 or less than 6 impellers, ULTRA A, ULTRA SA) |
| |
graphite-silicon carbide (ULTRA or ULTRA S with 7 or more than 7 impellers) |
| ▸ |
Motor shaft: stainless steel AISI 303 (ULTRA, ULTRA A, ULTRA S, ULTRA SA) |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow rate: up to 25 m3/h |
| ▸ |
Head: up to 84 m |
| ▸ |
Liquid temperature: |
| |
-5 °C to +35 °C (ULTRA, ULTRA A) |
| |
-15 °C to +110 °C (ULTRA S, ULTRA SA) |
|
| |
|
