| The Little Giant brand is of great renown in the water pump market. Amoung the Little Giant product range, our company offers small submersible pump model 1-Y, in-pan condensate removal pump model 1-ABS, air conditioner condensate removal pump model VCMA-20UL, utility pump model 5-MSPR and piggyback diaphragm switch model RS-5LL. |
| |
|
| Small Submersible Pump Model 1-Y |
| |
|
| • |
Suitable for water transfer or recirculation, and water displays |
| • |
1/150 hp oil-filled, direct drive motor |
| • |
Designed for continuous duty, submersible use only |
| • |
Epoxy coated cast aluminum housing and cover |
| • |
Polypropylene volute and elbow |
| • |
Nitrile shaft seal |
| |
|
| In-pan Condensate Removal Pump Model 1-ABS |
| |
|
| • |
Suitable for removal of condensate from an air conditioner drain pan or reservoir |
| • |
1/150 hp oil-filled motor |
| • |
Epoxy-coated cast aluminum housing and motor cover |
| • |
Nylon volute |
| • |
Stainless steel shaft |
| • |
Nitrile shaft seal |
| • |
Screened intake |
| • |
Advanced mechanical switch |
| • |
Thermal overload protection |
| |
|

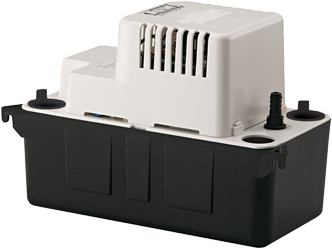

| Air Conditioner Condensate Removal Pump Model VCMA-20UL |
| |
|
| • |
Suitable for removal of condensate from an air conditioner, high efficiency gas furnace condensation and condensing boilers |
| • |
1/30 hp high performance motor |
| • |
ABS tank, motor cover, and volute |
| • |
1/2 gallon tank capacity |
| • |
Stainless steel shaft |
| • |
Removable 3/8" (9.5 mm) barbed check valve |
| • |
3 inlet drain holes |
| • |
Thermal overload protection |
| |
|

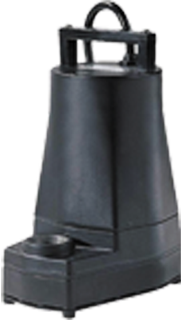

| Uutility Pump Model 5-MSPR |
| |
|
| • |
Suitable for commercial, industrial, and home uses where water must be transferred or recirculated |
| • |
1/6 hp shaded pole motor with overload protection |
| • |
Designed for continuous duty |
| • |
Pumps down to 1/8" (38 mm) |
| • |
1" FNPT (25.4 mm) discharge (includes garden hose adapter) |
| • |
Removable inlet screen for easy cleaning |
| • |
120 °F (49 °C) liquid temperature rating |
| |
|
| Piggyback Diaphragm Switch Model RS-5LL |
| |
|
| • |
Suitable for converting manual pumps to automatic operation |
| • |
RS-5LL (Low Level) converts any manual pump, up through 1/3 hp (115 V) |
| • |
UL and CSA listing (115 V models only) |
| |
|
| |
|
