NT 48/1

This machine is a very robust, functional and powerful wet/dry vacuum cleaner with optimal ergonomic properties, by compact construction, which is developed for the specific needs of contract cleaners, automotive-area and trade.





1 / 8

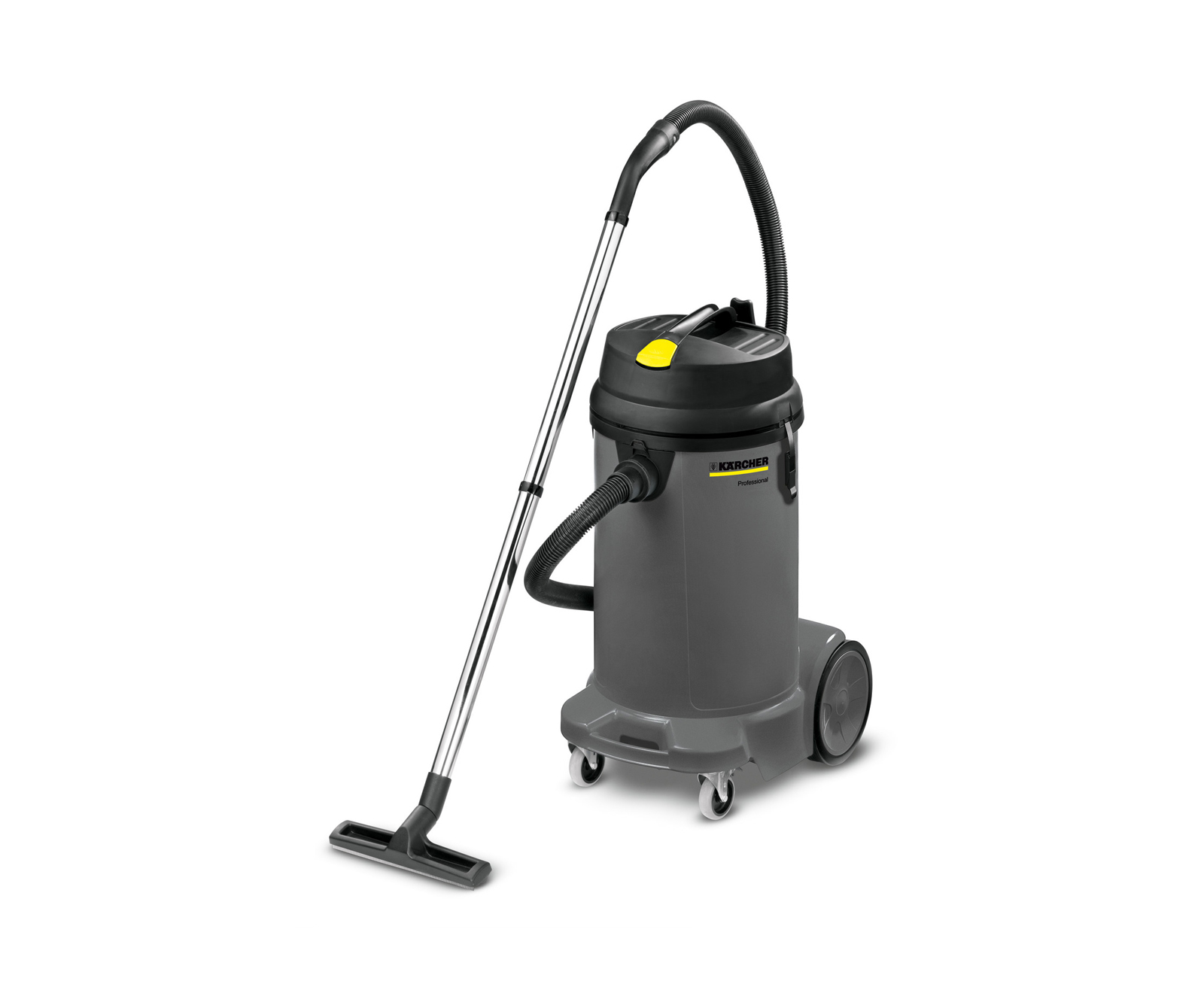

NT 48/1 (part number: 1.428-620.0)
2 / 8

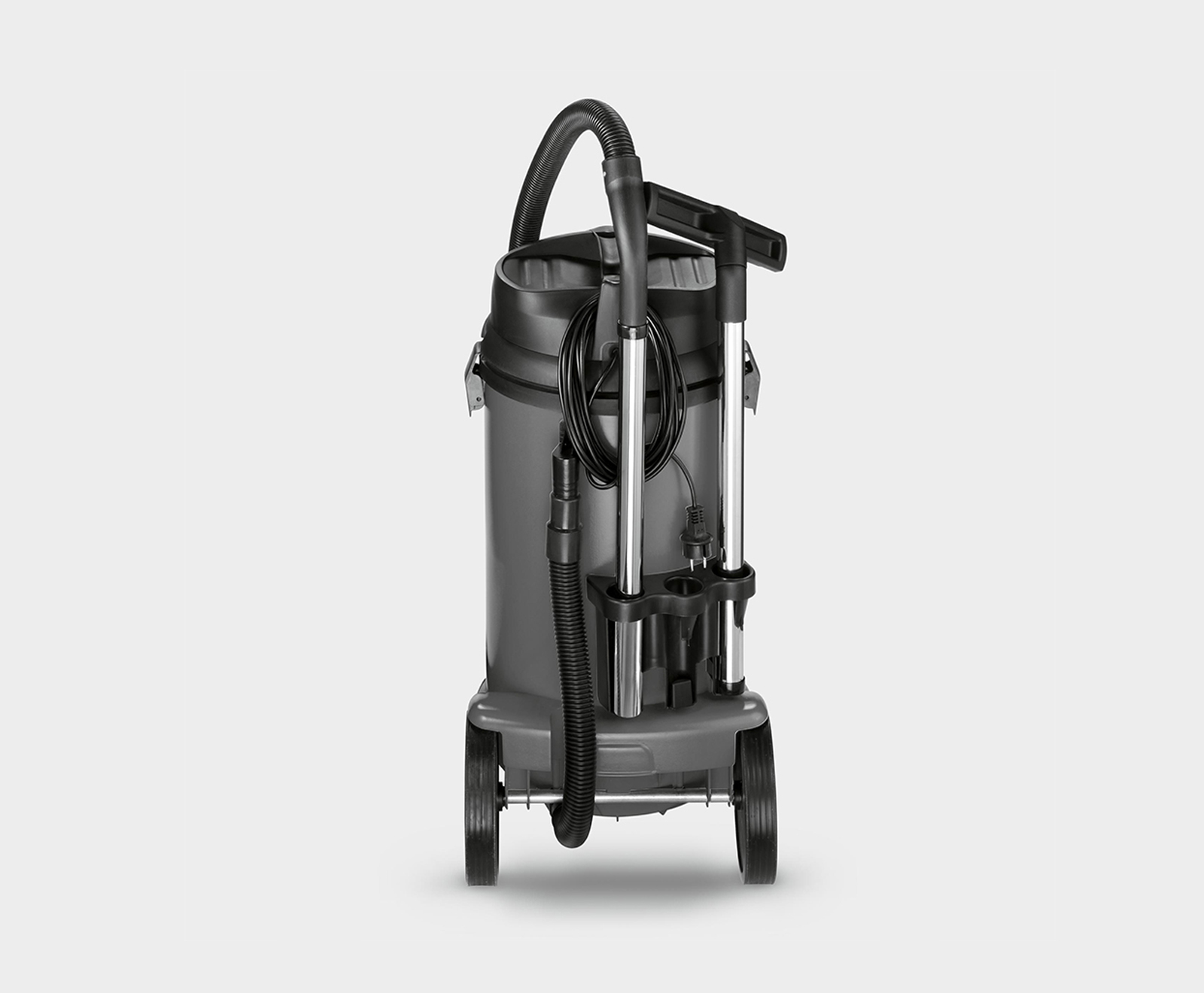

Accessory storage
3 / 8

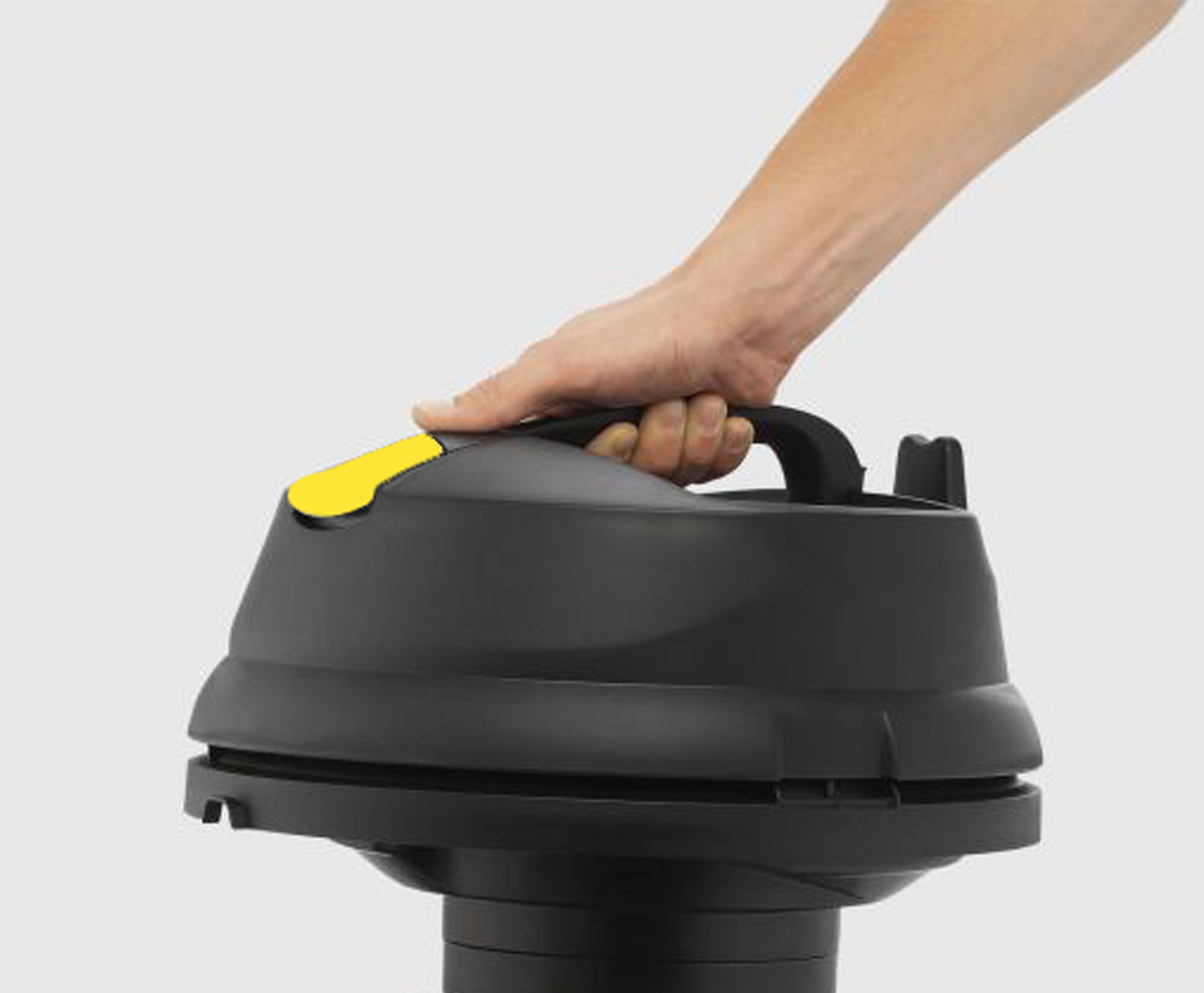

Ergonomically shaped carrying handle
4 / 8

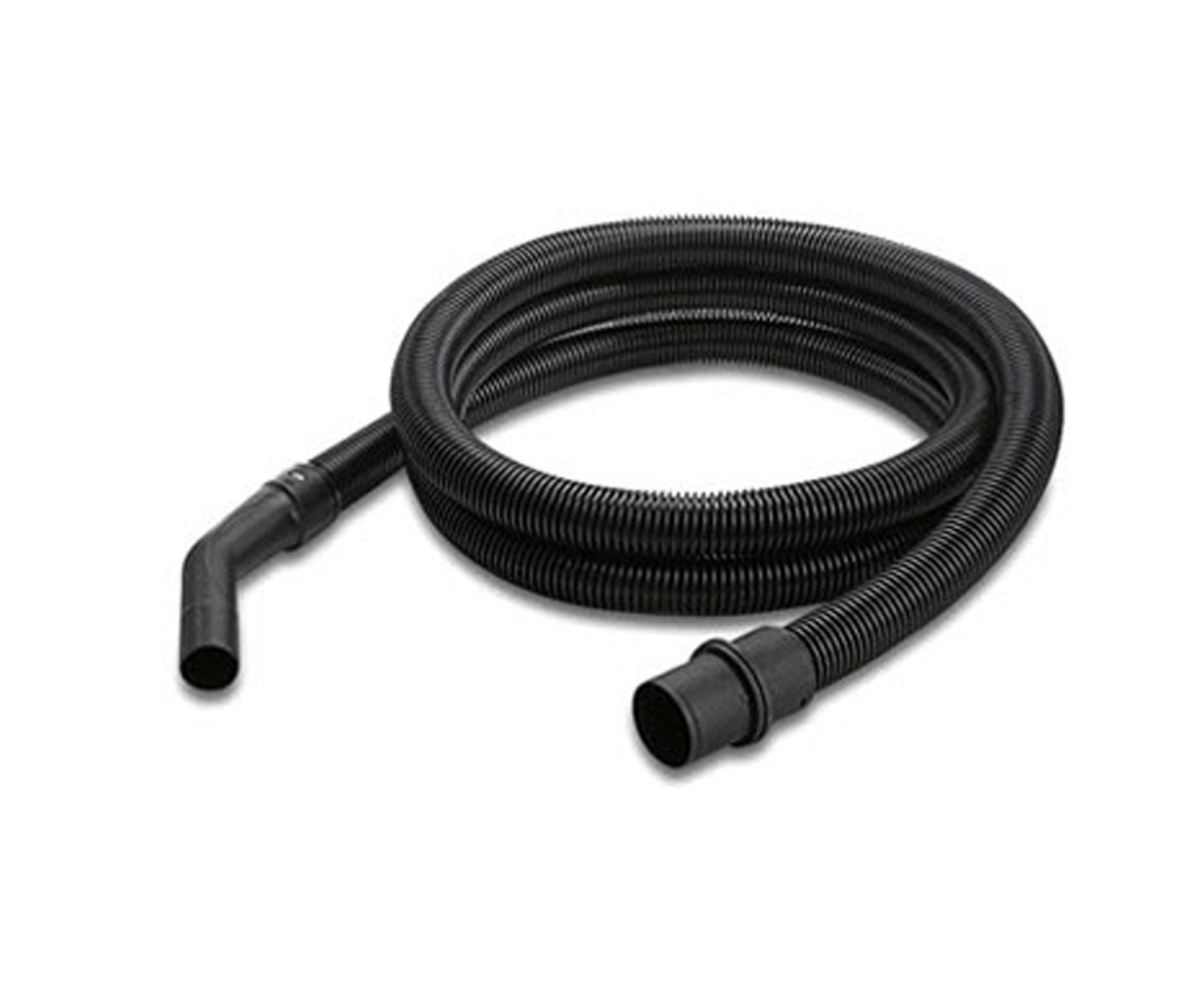

Suction hose
5 / 8

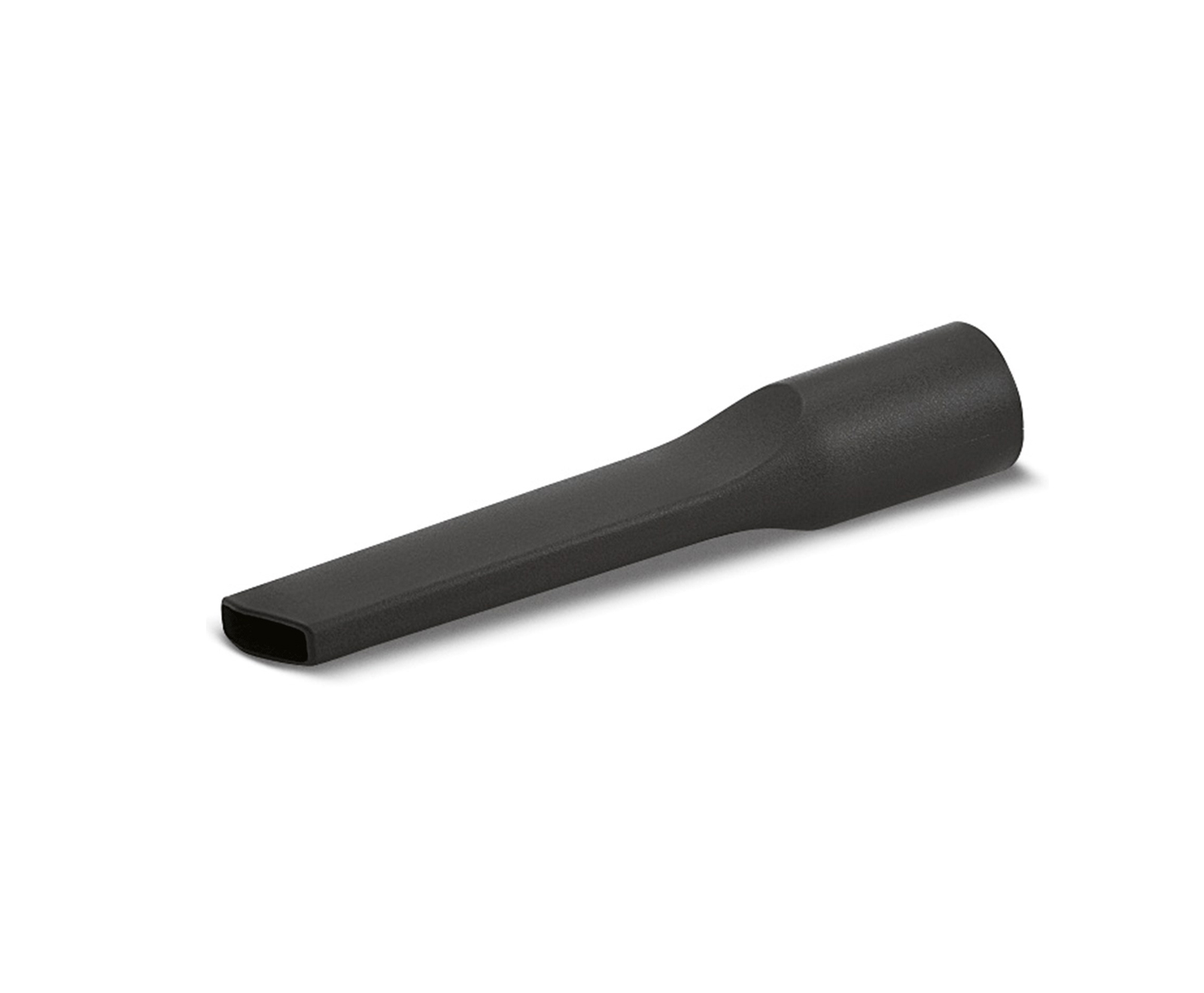

Crevice nozzle
6 / 8

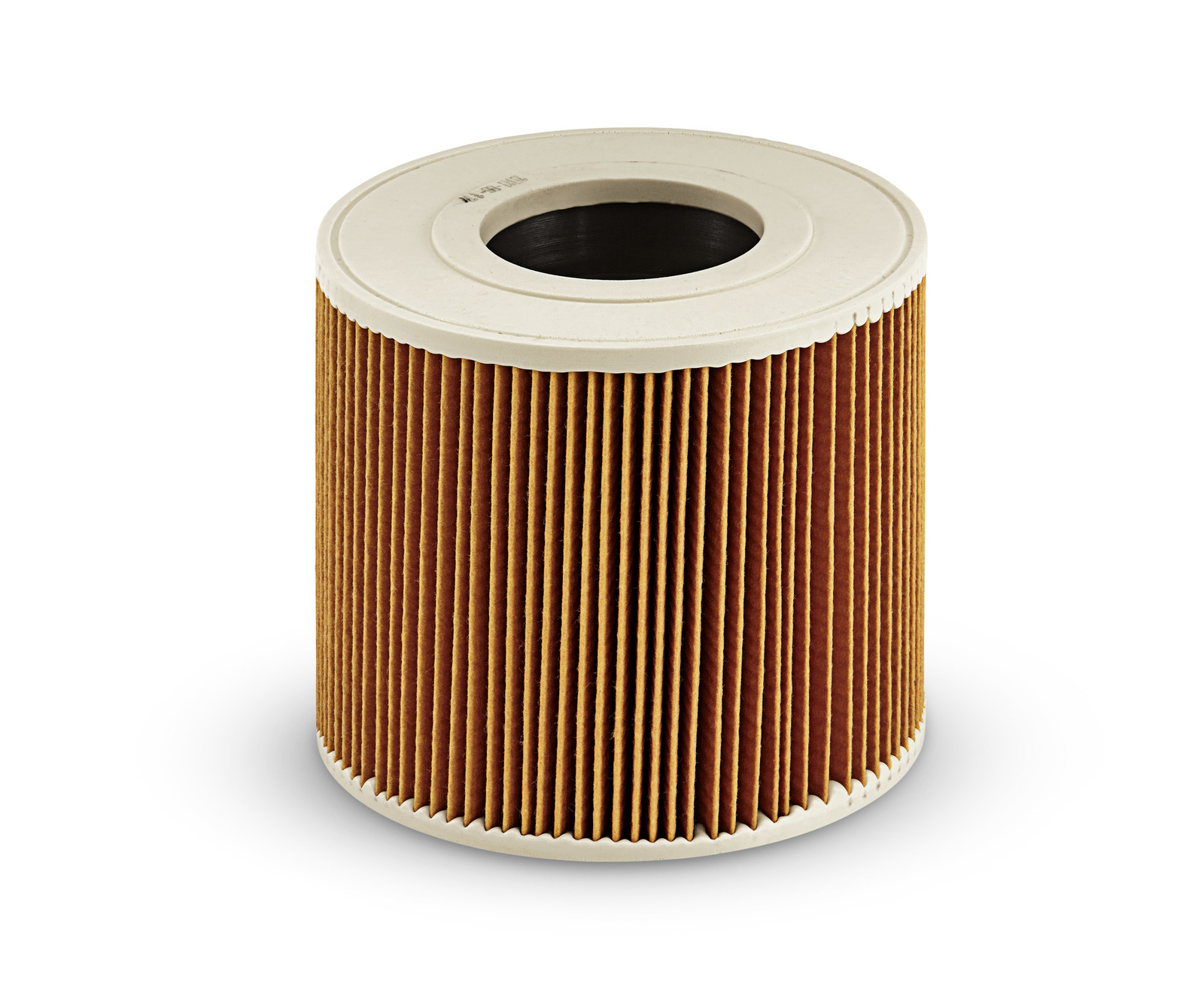

Cartridge filter
7 / 8

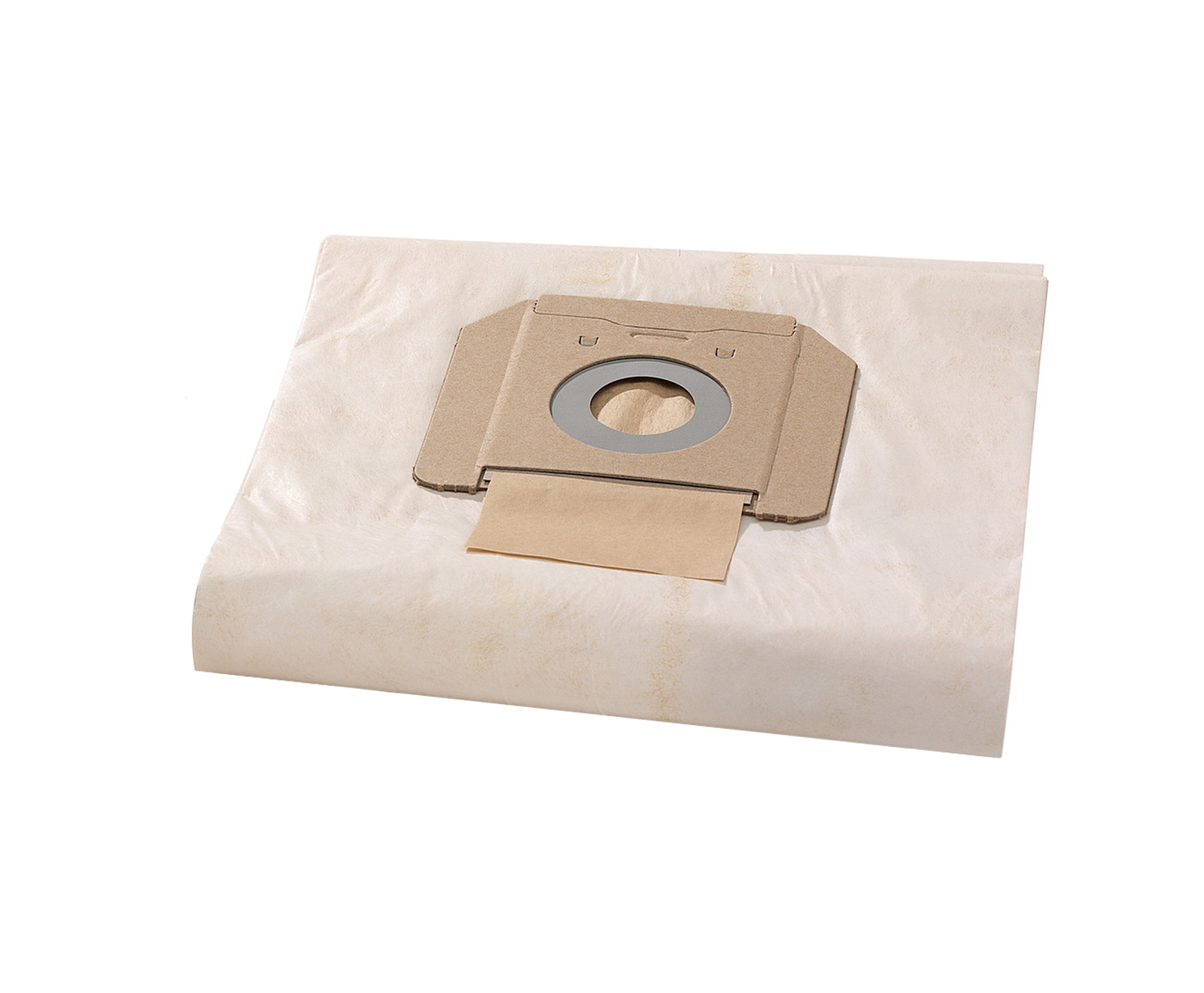

Paper filter bag
8 / 8

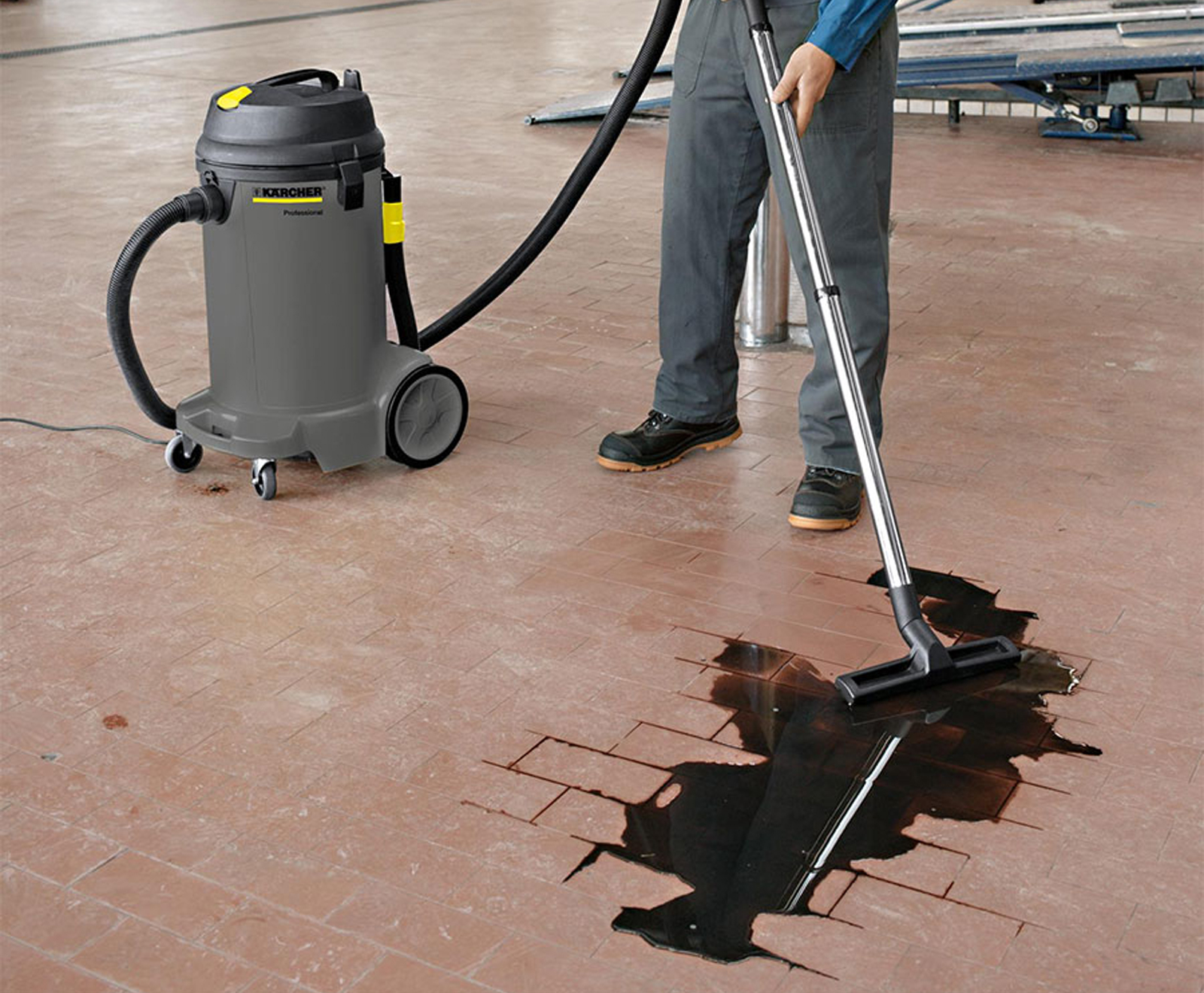

Use in autoshops

NT 48/1 (part number: 1.428-620.0)

Accessory storage

Ergonomically shaped carrying handle

Suction hose

Crevice nozzle

Cartridge filter

Paper filter bag

Use in autoshops








DESCRIPTION



The NT 48/1 has a container capacity of 48 L. The machine is equipped with an integrated cable hook and an accessory storage for suction tubes, floor tool and crevice tool. The large cartridge filter with the huge filter surface (0,8 m²) provides a constant high suction power of the machine. The reliable float system provides a safe interruption of the air flow by all absorbed fluids. At any time tools or other implements could be stored ready to hand on the large storage area on the turbine head. Through easily accessible drain hose, sturdy chassis with big wheels and castors made of metal with fixing brake and integrated recessed grip at the container a comfortable transport is enabled.



FEATURES AND BENEFITS



Cartridge filter with float
Large cartridge filter ensures constant high suction power. The mechanical floating switch-off interrupts the air stream once the maximum filling level has been reached.


Container emptying
Easily accessible drain hose for convenient liquid disposal.


Accessory storage
Accessories can be attached to the container at the rear of the machine.



SPECIFICATIONS



Technical data

Equipment



Air flow rate (l/s)
67

Vacuum (mbar/kPa)
200 / 20

Container capacity (l)
48

Max. rated input power (W)
max. 1380

Standard nominal width
ID / 35

Cable length (m)
7.5

Sound pressure level (dB(A))
72

Container material
plastic

Frequency (Hz)
50 - 60

Voltage (V)
220 - 240

Weight without accessories (kg)
10.5

Dimensions (L × W × H) (mm)
490 x 390 x 780

Suction hose, 2.5 m
Suction Tube, 2 piece(s), 0.5 m
Filter bag, Paper
Wet and dry floor nozzle, 400 mm
Crevice nozzle
Cartridge filter, Paper
Drain hose
Bend
Safety class, II
Steering roller stop



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions



NT 48/1

This machine is a very robust, functional and powerful wet/dry vacuum cleaner with optimal ergonomic properties, by compact construction, which is developed for the specific needs of contract cleaners, automotive-area and trade.





1 / 8
NT 48/1 (part number: 1.428-620.0)
2 / 8
Accessory storage
3 / 8
Ergonomically shaped carrying handle
4 / 8
Suction hose
5 / 8
Crevice nozzle
6 / 8
Cartridge filter
7 / 8
Paper filter bag
8 / 8
Use in autoshops

NT 48/1 (part number: 1.428-620.0)

Accessory storage

Ergonomically shaped carrying handle

Suction hose

Crevice nozzle

Cartridge filter

Paper filter bag

Use in autoshops








DESCRIPTION



The NT 48/1 has a container capacity of 48 L. The machine is equipped with an integrated cable hook and an accessory storage for suction tubes, floor tool and crevice tool. The large cartridge filter with the huge filter surface (0,8 m²) provides a constant high suction power of the machine. The reliable float system provides a safe interruption of the air flow by all absorbed fluids. At any time tools or other implements could be stored ready to hand on the large storage area on the turbine head. Through easily accessible drain hose, sturdy chassis with big wheels and castors made of metal with fixing brake and integrated recessed grip at the container a comfortable transport is enabled.



FEATURES AND BENEFITS



Cartridge filter with float
Large cartridge filter ensures constant high suction power. The mechanical floating switch-off interrupts the air stream once the maximum filling level has been reached.


Container emptying
Easily accessible drain hose for convenient liquid disposal.


Accessory storage
Accessories can be attached to the container at the rear of the machine.



SPECIFICATIONS



Technical data

Equipment



Air flow rate (l/s)
67

Vacuum (mbar/kPa)
200 / 20

Container capacity (l)
48

Max. rated input power (W)
max. 1380

Standard nominal width
ID / 35

Cable length (m)
7.5

Sound pressure level (dB(A))
72

Container material
plastic

Frequency (Hz)
50 - 60

Voltage (V)
220 - 240

Weight without accessories (kg)
10.5

Dimensions (L × W × H) (mm)
490 x 390 x 780

Suction hose, 2.5 m
Suction Tube, 2 piece(s), 0.5 m
Filter bag, Paper
Wet and dry floor nozzle, 400 mm
Crevice nozzle
Cartridge filter, Paper
Drain hose
Bend
Safety class, II
Steering roller stop



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions



NT 48/1

This machine is a very robust, functional and powerful wet/dry vacuum cleaner with optimal ergonomic properties, by compact construction, which is developed for the specific needs of contract cleaners, automotive-area and trade.





1 / 8
NT 48/1 (part number: 1.428-620.0)
2 / 8
Accessory storage
3 / 8
Ergonomically shaped carrying handle
4 / 8
Suction hose
5 / 8
Crevice nozzle
6 / 8
Cartridge filter
7 / 8
Paper filter bag
8 / 8
Use in autoshops







DESCRIPTION



The NT 48/1 has a container capacity of 48 L. The machine is equipped with an integrated cable hook and an accessory storage for suction tubes, floor tool and crevice tool. The large cartridge filter with the huge filter surface (0,8 m²) provides a constant high suction power of the machine. The reliable float system provides a safe interruption of the air flow by all absorbed fluids. At any time tools or other implements could be stored ready to hand on the large storage area on the turbine head. Through easily accessible drain hose, sturdy chassis with big wheels and castors made of metal with fixing brake and integrated recessed grip at the container a comfortable transport is enabled.



FEATURES AND BENEFITS



Cartridge filter with float
Large cartridge filter ensures constant high suction power. The mechanical floating switch-off interrupts the air stream once the maximum filling level has been reached.


Container emptying
Easily accessible drain hose for convenient liquid disposal.


Accessory storage
Accessories can be attached to the container at the rear of the machine.



SPECIFICATIONS



Technical data



Air flow rate (l/s)
67


Vacuum (mbar/kPa)
200 / 20


Container capacity (l)
48


Max. rated input power (W)
max. 1380


Standard nominal width
ID / 35


Cable length (m)
7.5


Sound pressure level (dB(A))
72


Container material
plastic


Frequency (Hz)
50 - 60


Voltage (V)
220 - 240


Weight without accessories (kg)
10.5


Dimensions (L × W × H) (mm)
490 x 390 x 780



Equipment



Suction hose, 2.5 m


Suction Tube, 2 piece(s), 0.5 m


Filter bag, Paper


Wet and dry floor nozzle, 400 mm


Crevice nozzle


Cartridge filter, Paper


Drain hose


Bend


Safety class, II


Steering roller stop



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions


VIDEOS



  • Kärcher Cleaning Machiines Demo



APPLICATION AREAS



Offices


Stores


Cafeterias


Restaurants


Auto repair shops
