T 14/1 Classic

Being lightweight, robust, affordable, the T 14/1 Classic dry vacuum cleaner impresses with strong suction power, simple operation and 14-litre catch pan for uninterrupted work.





1 / 8

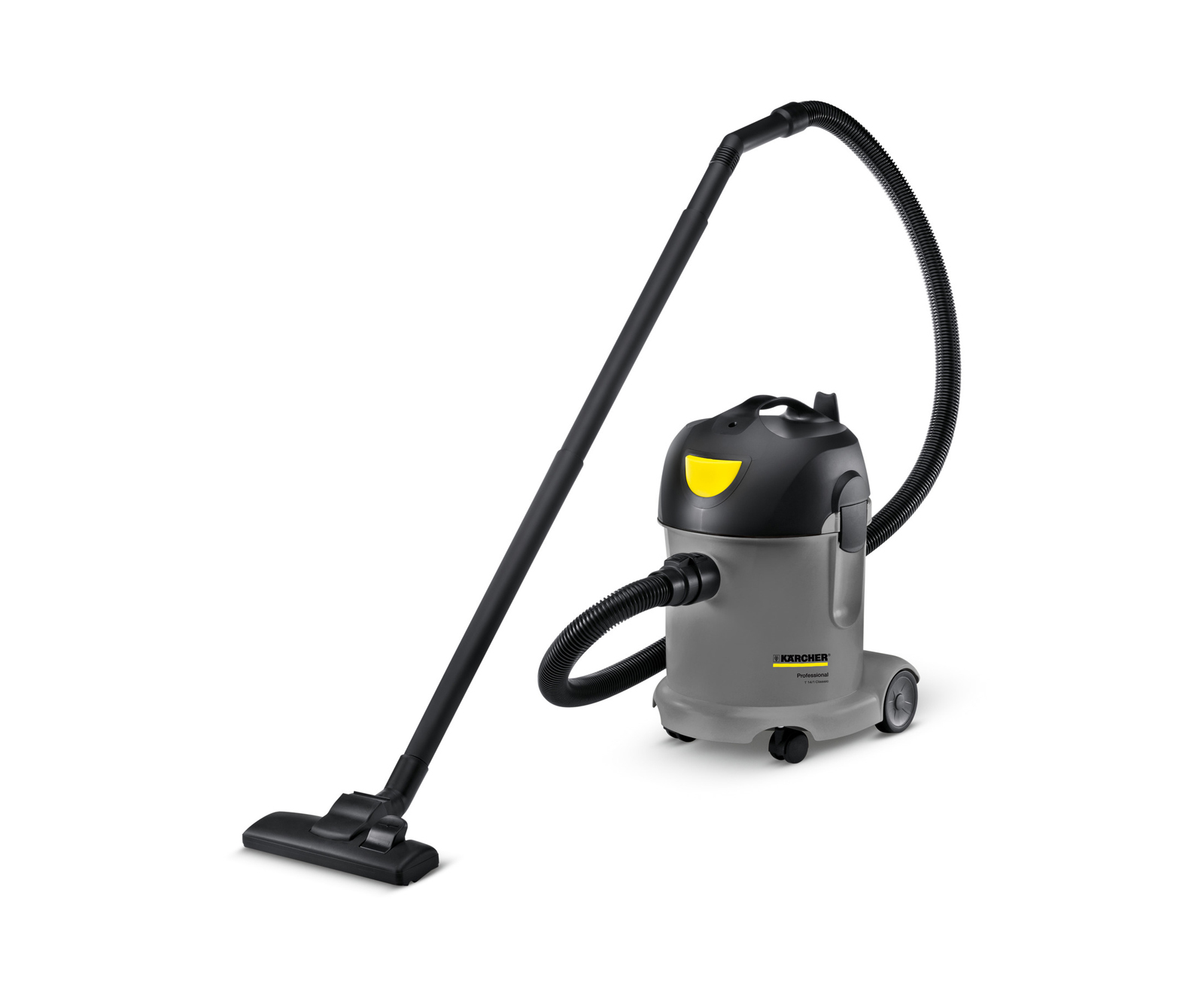

T 14/1 Classic (part number: 1.527-171.0)
2 / 8

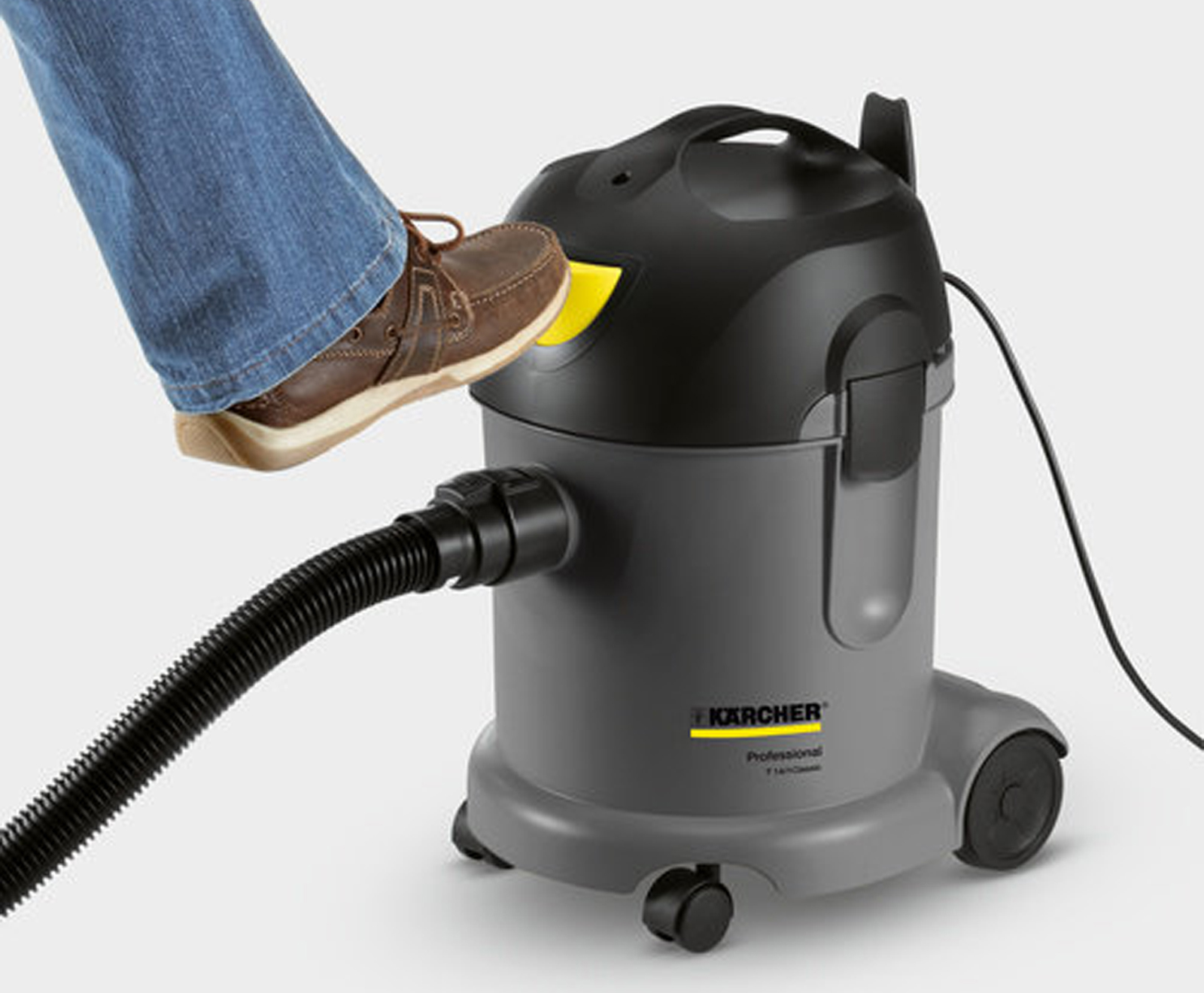

Convenient foot switch
3 / 8

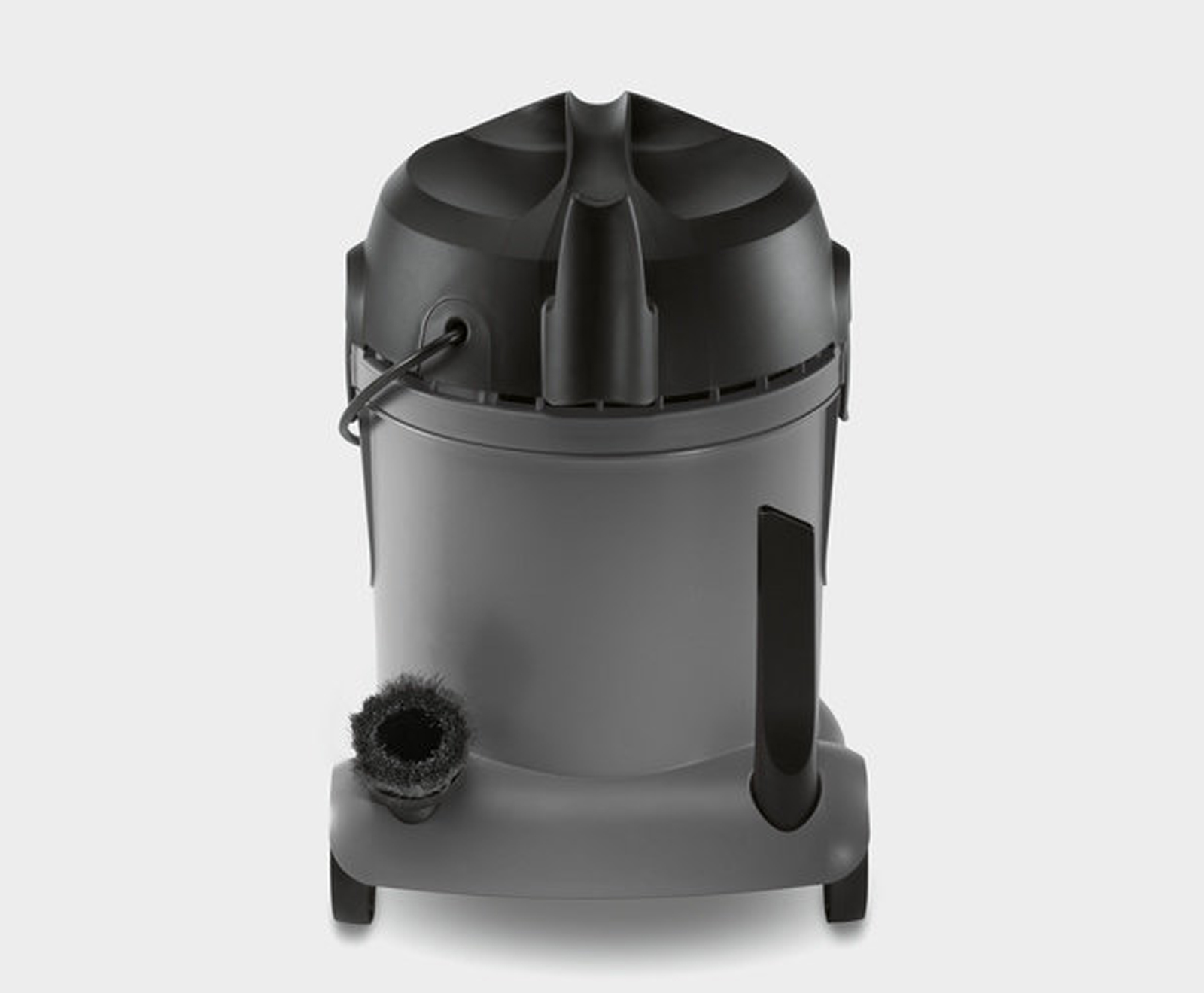

Practical accessory storage
4 / 8

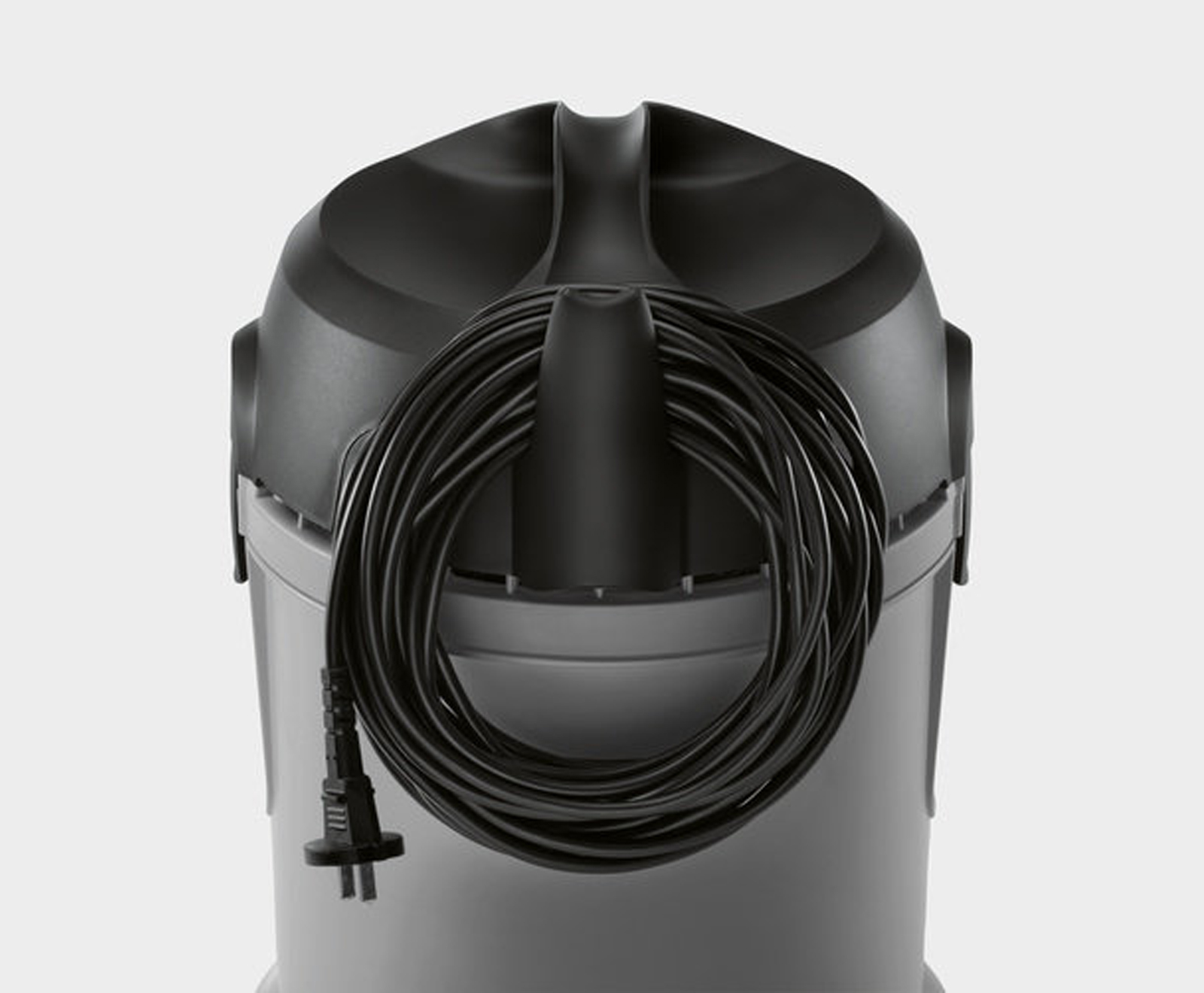

Secure cable storage
5 / 8

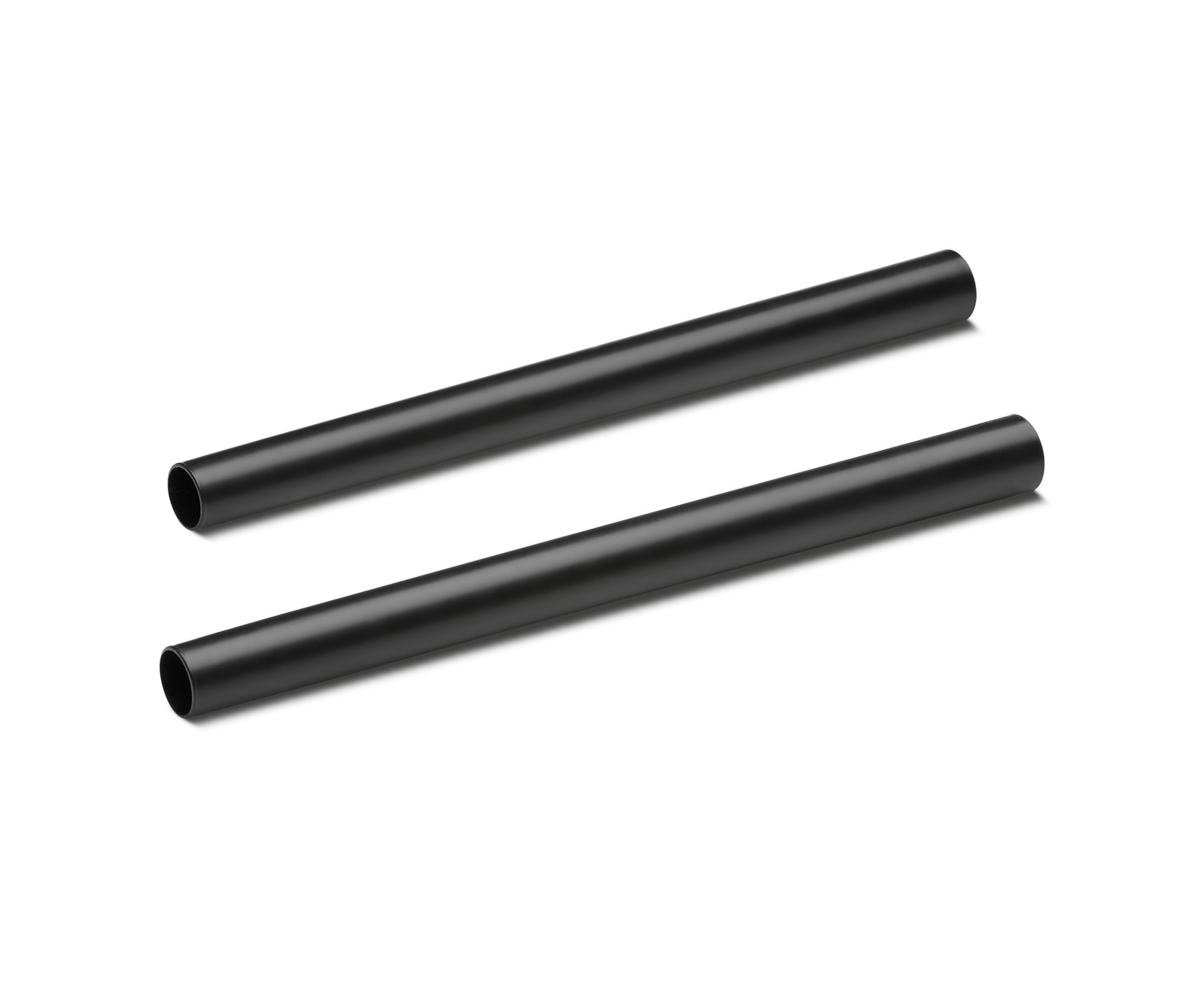

Plastic suction tubes
6 / 8

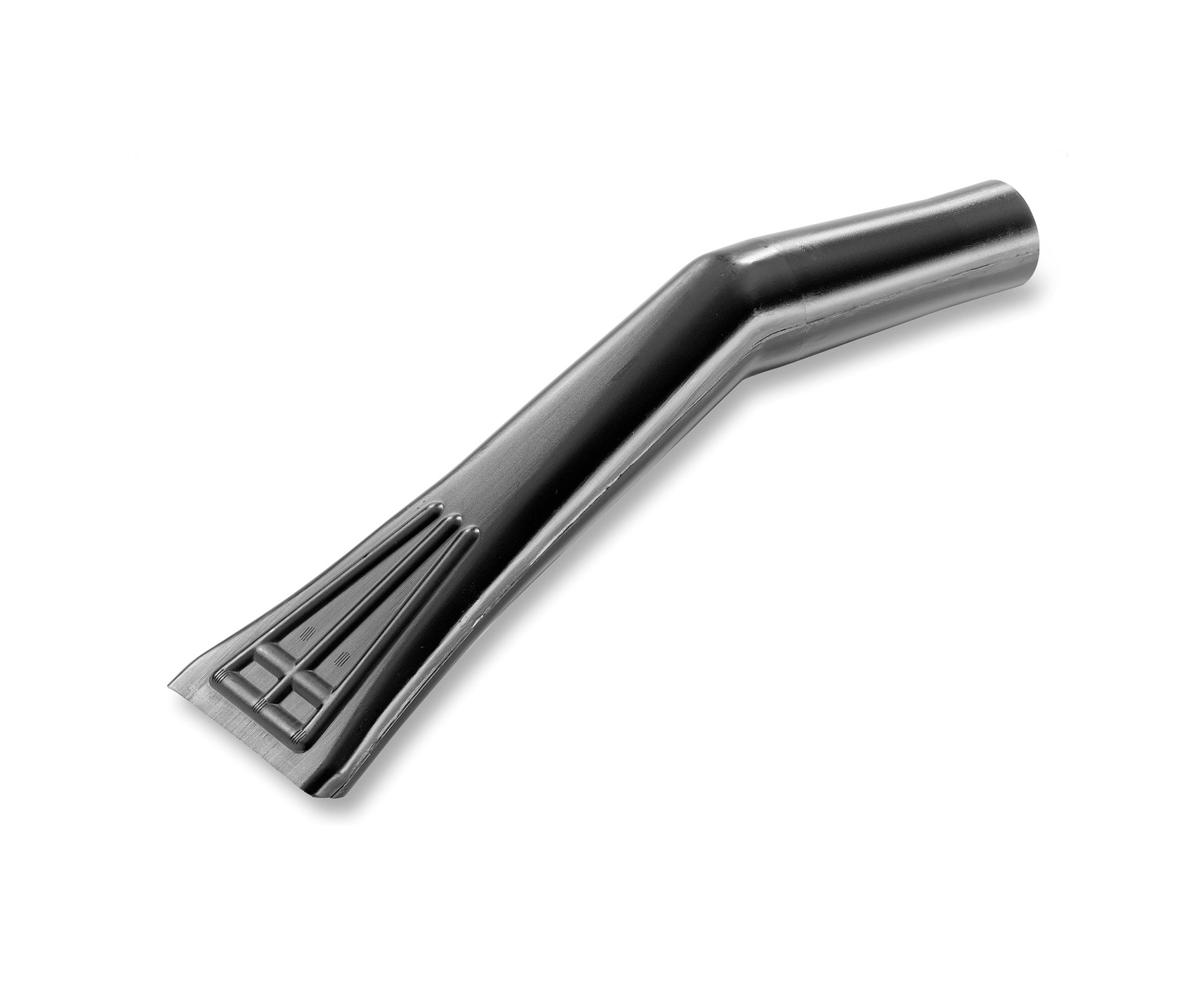

Crevice nozzle
7 / 8

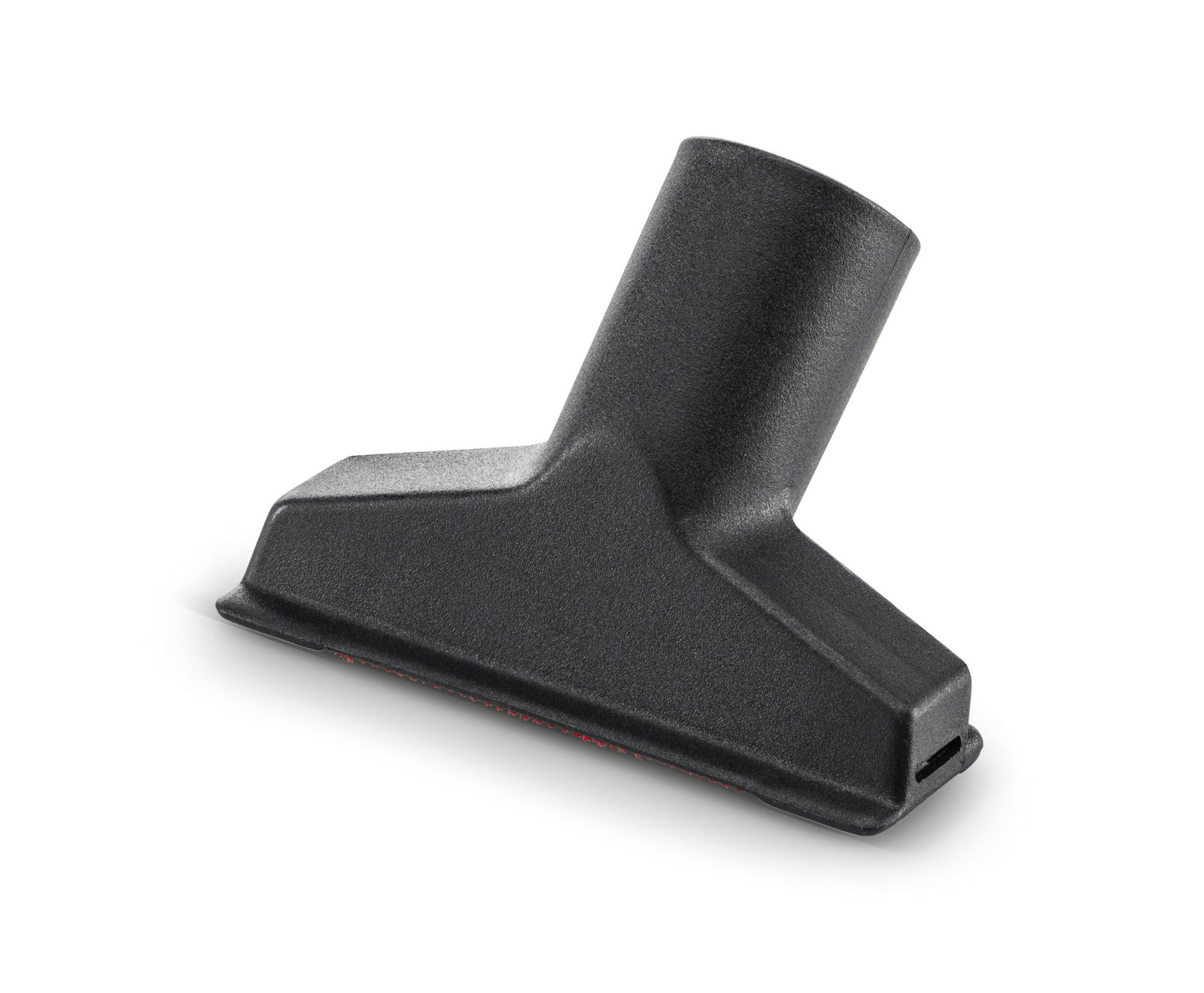

Upholstery nozzle
8 / 8

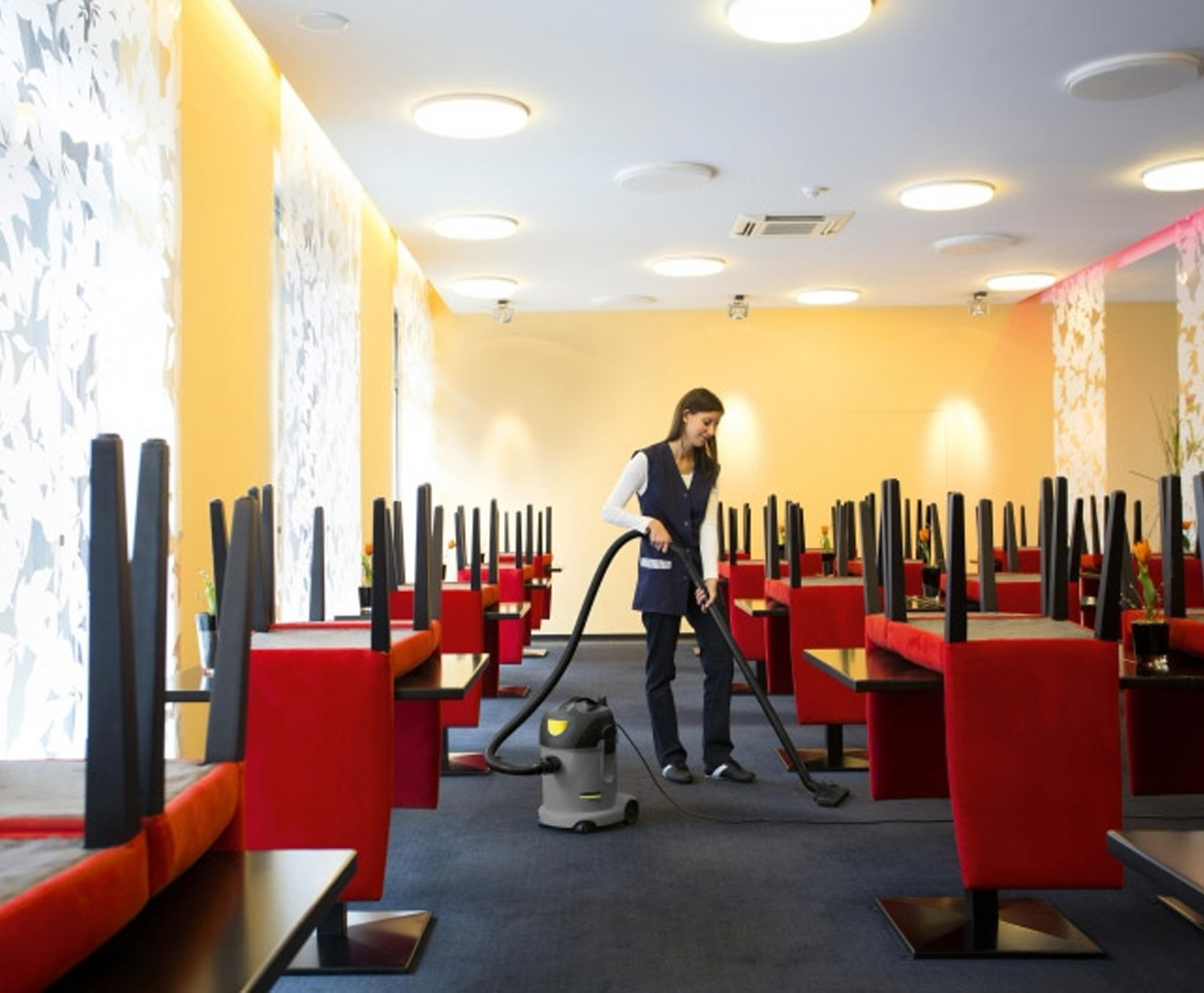

Use in restaurants

T 14/1 Classic (part number: 1.527-171.0)

Convenient foot switch

Practical accessory storage

Secure cable storage

Plastic suction tubes

Crevice nozzle

Upholstery nozzle

Use in restaurants








DESCRIPTION



The T 14/1 Classic dry vacuum cleaner is a lightweight and robust machine offering a high level of operating comfort, powerful suction and an excellent price-performance ratio. This machine has a large foot switch for ease of use as well as variable suction power regulation for adjustment to suit the particular cleaning task and a 14 litre catch pan for non-stop use. After vacuuming, the filter bag can be changed quickly and easily thanks to two flaps on the turbine head. A large permanent filter of washable nylon ensures efficient dust separation. The ergonomically shaped handle enables easy transport over steps or long distances. In addition, the robust chassis with 2 wheels and steering rollers ensures easy manoeuvrability.



FEATURES AND BENEFITS



Convenient foot switch
No need to bend down: on/off foot switch for speed and ease of use.


Practical accessory storage
The suction pipes and accessories are securely and conveniently carried on the machine, meaning they are always ready to hand.


Secure cable storage
The power cable is simply attached to the cable hook. This prevents dangerous tripping hazards during transport.


Accessory holder for small nozzles
Thanks to the practical accessory holder, small nozzles can be directly fixed to the pipe. In this way, nozzles are always close at hand when they are needed.



SPECIFICATIONS



Technical data

Equipment



Air flow rate (l/s)
47

Vacuum (mbar/kPa)
285 / 28.5

Container capacity (l)
14

Max. rated input power (W)
max. 1600

Standard nominal width
ID / 35

Cable length (m)
7.5

Sound pressure level (dB(A))
69

Turbine power (W)
1600

Phase (Ph)
1

Frequency (Hz)
50 - 60

Voltage (V)
220 - 240

Weight without accessories (kg)
5.3

Dimensions (L × W × H) (mm)
355 x 310 x 466

Suction hose, 1.7 m
Suction Tube, 2 piece(s), 0.5 m
Filter bag, Paper
Floor nozzle
Crevice nozzle
Upholstery nozzle
Round brush



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions



T 14/1 Classic

Being lightweight, robust, affordable, the T 14/1 Classic dry vacuum cleaner impresses with strong suction power, simple operation and 14-litre catch pan for uninterrupted work.





1 / 8
T 14/1 Classic (part number: 1.527-171.0)
2 / 8
Convenient foot switch
3 / 8
Practical accessory storage
4 / 8
Secure cable storage
5 / 8
Plastic suction tubes
6 / 8
Crevice nozzle
7 / 8
Upholstery nozzle
8 / 8
Use in restaurants

T 14/1 Classic (part number: 1.527-171.0)

Convenient foot switch

Practical accessory storage

Secure cable storage

Plastic suction tubes

Crevice nozzle

Upholstery nozzle

Use in restaurants








DESCRIPTION



The T 14/1 Classic dry vacuum cleaner is a lightweight and robust machine offering a high level of operating comfort, powerful suction and an excellent price-performance ratio. This machine has a large foot switch for ease of use as well as variable suction power regulation for adjustment to suit the particular cleaning task and a 14 litre catch pan for non-stop use. After vacuuming, the filter bag can be changed quickly and easily thanks to two flaps on the turbine head. A large permanent filter of washable nylon ensures efficient dust separation. The ergonomically shaped handle enables easy transport over steps or long distances. In addition, the robust chassis with 2 wheels and steering rollers ensures easy manoeuvrability.



FEATURES AND BENEFITS



Convenient foot switch
No need to bend down: on/off foot switch for speed and ease of use.


Practical accessory storage
The suction pipes and accessories are securely and conveniently carried on the machine, meaning they are always ready to hand.


Secure cable storage
The power cable is simply attached to the cable hook. This prevents dangerous tripping hazards during transport.


Accessory holder for small nozzles
Thanks to the practical accessory holder, small nozzles can be directly fixed to the pipe. In this way, nozzles are always close at hand when they are needed.



SPECIFICATIONS



Technical data

Equipment



Air flow rate (l/s)
47

Vacuum (mbar/kPa)
285 / 28.5

Container capacity (l)
14

Max. rated input power (W)
max. 1600

Standard nominal width
ID / 35

Cable length (m)
7.5

Sound pressure level (dB(A))
69

Turbine power (W)
1600

Phase (Ph)
1

Frequency (Hz)
50 - 60

Voltage (V)
220 - 240

Weight without accessories (kg)
5.3

Dimensions (L × W × H) (mm)
355 x 310 x 466

Suction hose, 1.7 m
Suction Tube, 2 piece(s), 0.5 m
Filter bag, Paper
Floor nozzle
Crevice nozzle
Upholstery nozzle
Round brush



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions



T 14/1 Classic

Being lightweight, robust, affordable, the T 14/1 Classic dry vacuum cleaner impresses with strong suction power, simple operation and 14-litre catch pan for uninterrupted work.





1 / 8
T 14/1 Classic (part number: 1.527-171.0)
2 / 8
Convenient foot switch
3 / 8
Practical accessory storage
4 / 8
Secure cable storage
5 / 8
Plastic suction tubes
6 / 8
Crevice nozzle
7 / 8
Upholstery nozzle
8 / 8
Use in restaurants







DESCRIPTION



The T 14/1 Classic dry vacuum cleaner is a lightweight and robust machine offering a high level of operating comfort, powerful suction and an excellent price-performance ratio. This machine has a large foot switch for ease of use as well as variable suction power regulation for adjustment to suit the particular cleaning task and a 14 litre catch pan for non-stop use. After vacuuming, the filter bag can be changed quickly and easily thanks to two flaps on the turbine head. A large permanent filter of washable nylon ensures efficient dust separation. The ergonomically shaped handle enables easy transport over steps or long distances. In addition, the robust chassis with 2 wheels and steering rollers ensures easy manoeuvrability.



FEATURES AND BENEFITS



Convenient foot switch
No need to bend down: on/off foot switch for speed and ease of use.


Practical accessory storage
The suction pipes and accessories are securely and conveniently carried on the machine, meaning they are always ready to hand.


Secure cable storage
The power cable is simply attached to the cable hook. This prevents dangerous tripping hazards during transport.
Compared to competitor models almost 25 percent lower power consumption.


Accessory holder for small nozzles
Thanks to the practical accessory holder, small nozzles can be directly fixed to the pipe. In this way, nozzles are always close at hand when they are needed.



SPECIFICATIONS



Technical data



Air flow rate (l/s)
47


Vacuum (mbar/kPa)
285 / 28.5


Container capacity (l)
14


Max. rated input power (W)
max. 1600


Standard nominal width
ID / 35


Cable length (m)
7.5


Sound pressure level (dB(A))
69


Turbine power (W)
1600


Phase (Ph)
1


Frequency (Hz)
50 - 60


Voltage (V)
220 - 240


Weight without accessories (kg)
5.3


Dimensions (L × W × H) (mm)
355 x 310 x 466



Equipment



Suction hose, 1.7 m


Suction Tube, 2 piece(s), 0.5 m


Filter bag, Paper


Floor nozzle


Crevice nozzle


Upholstery nozzle


Round brush



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions


VIDEOS



  • Checking of dry canister vacuum cleaner



APPLICATION AREAS



Offices


Stores


Cafeterias


Restaurants


Hotels
