T 10/1

This machine is a supremely robust, functional and powerful dry vacuum cleaner for professional users with optimal ergonomic properties and a compact construction, which is developed for the specific needs from hotels, gastronomy, contract cleaners and retail.





1 / 8

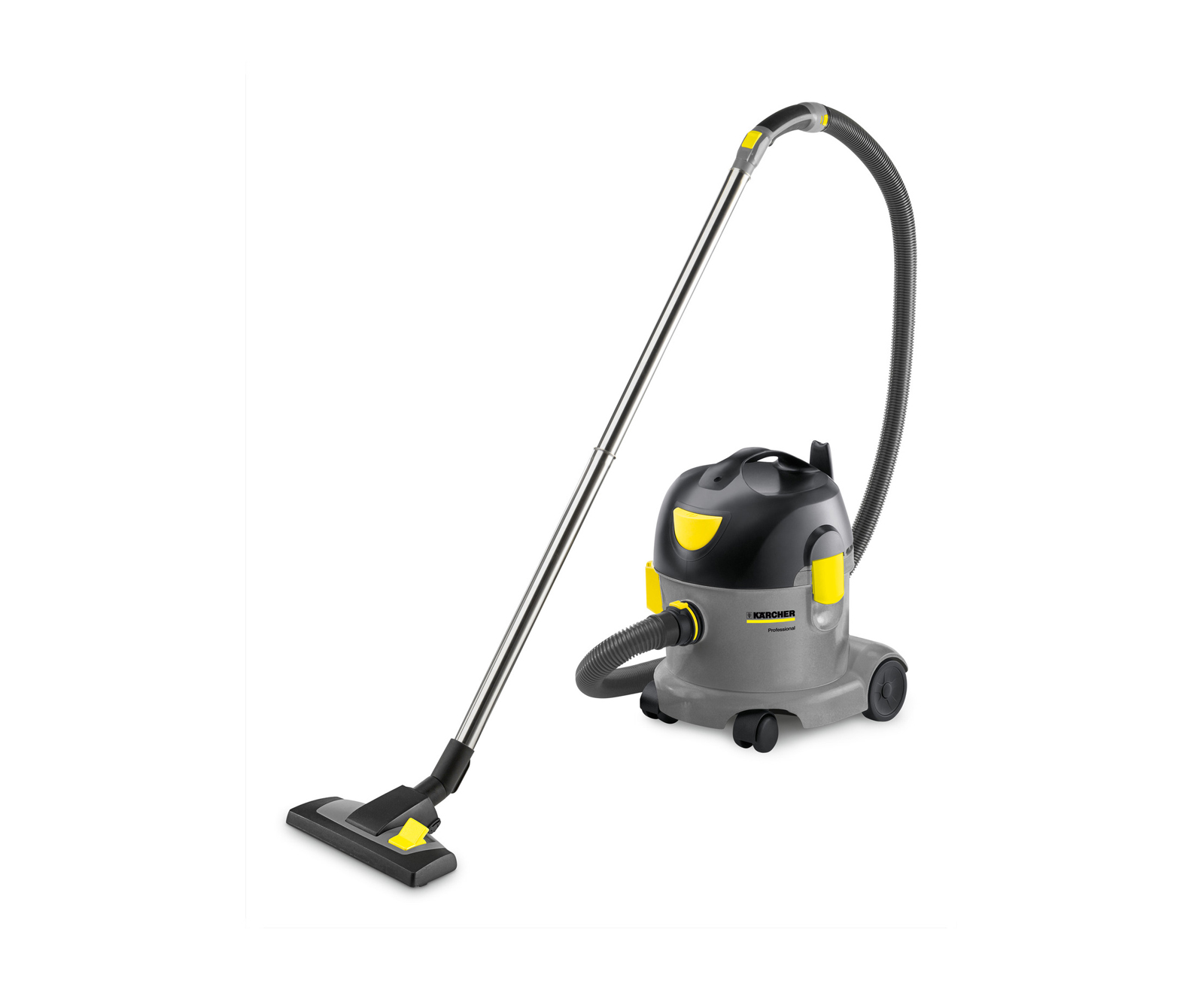

T 10/1 (part number: 1.527-150.0)
2 / 8

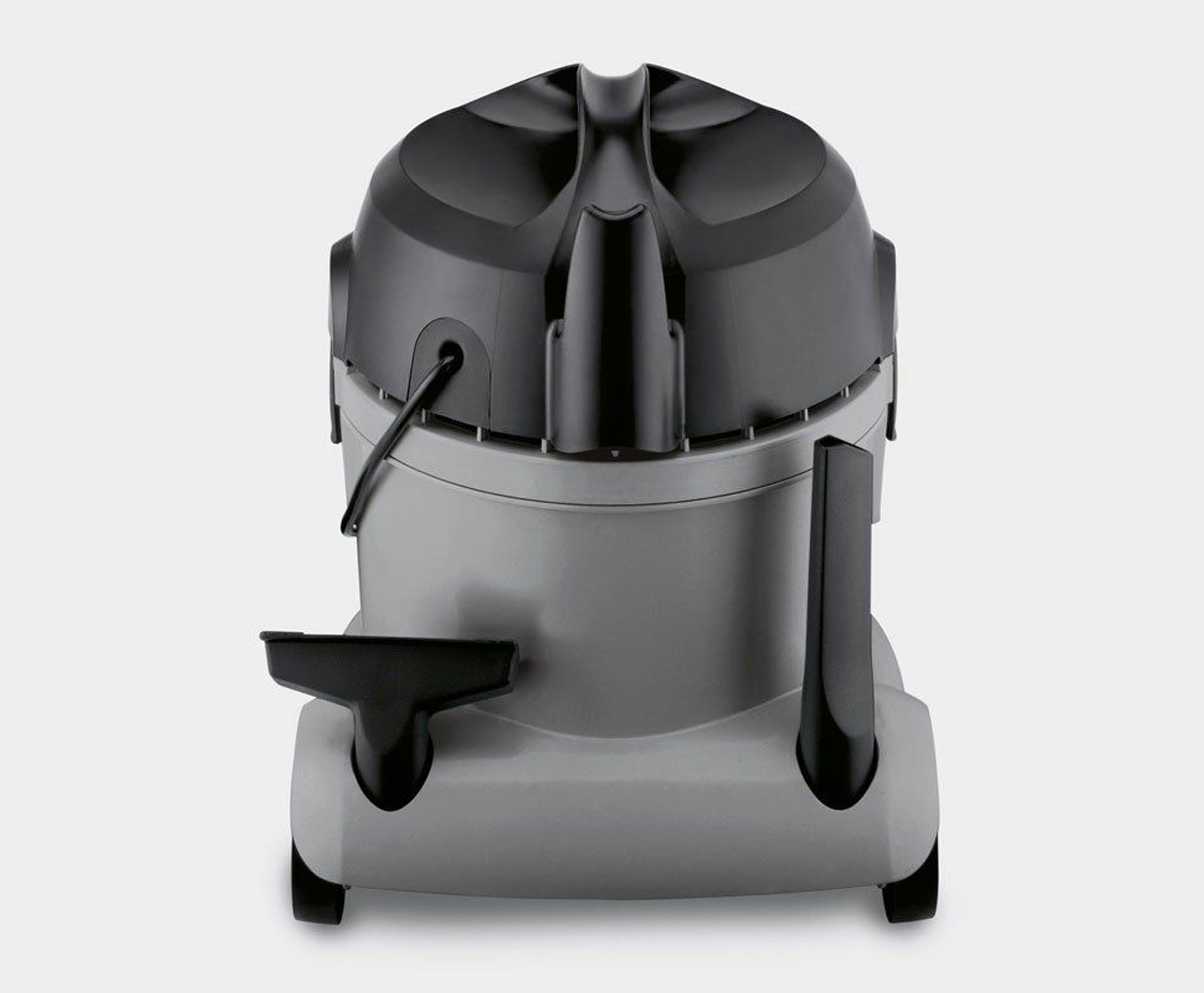

Accessory storage
3 / 8

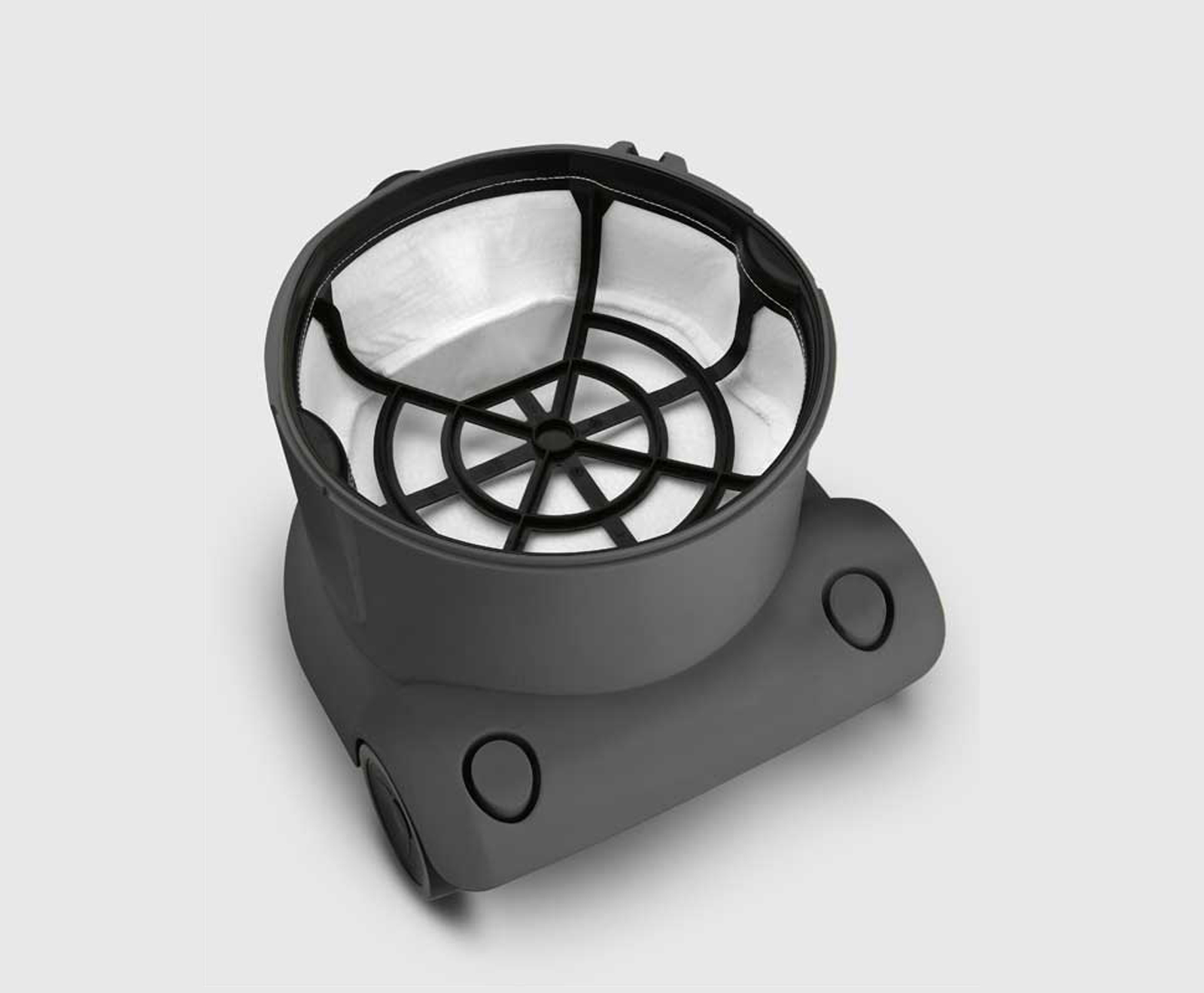

Filter basket
4 / 8

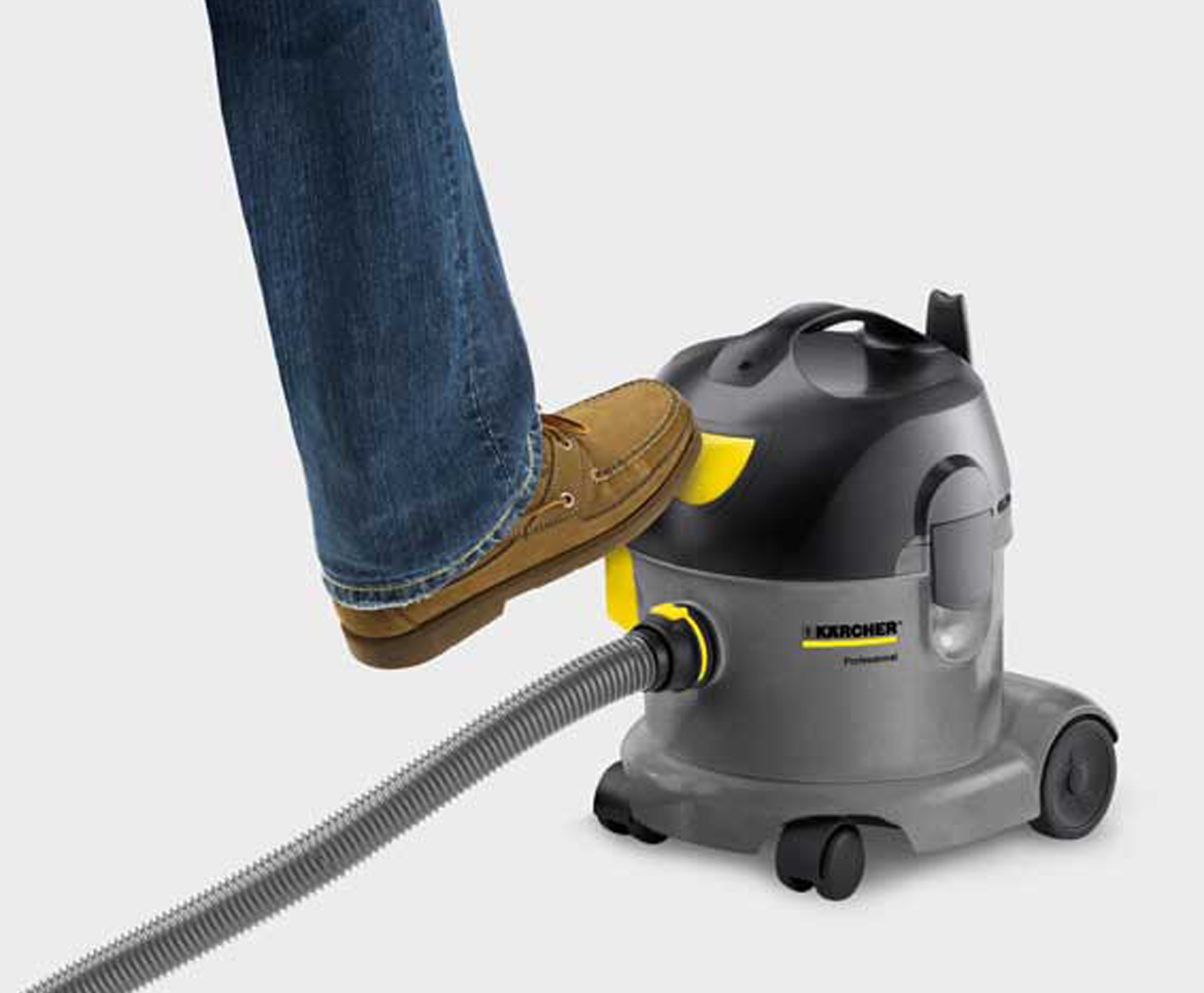

Convenient foot switch
5 / 8

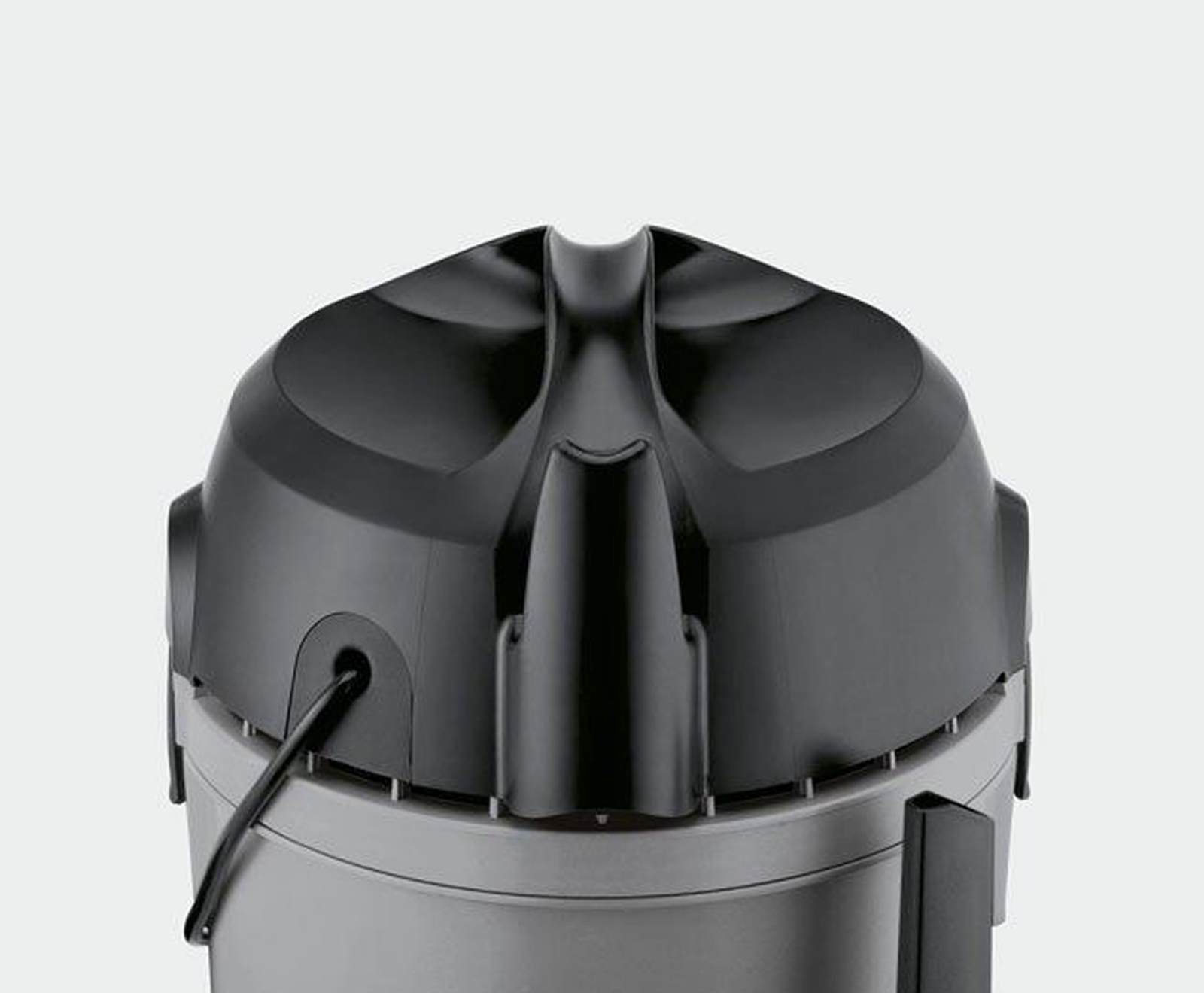

Cable hook
6 / 8

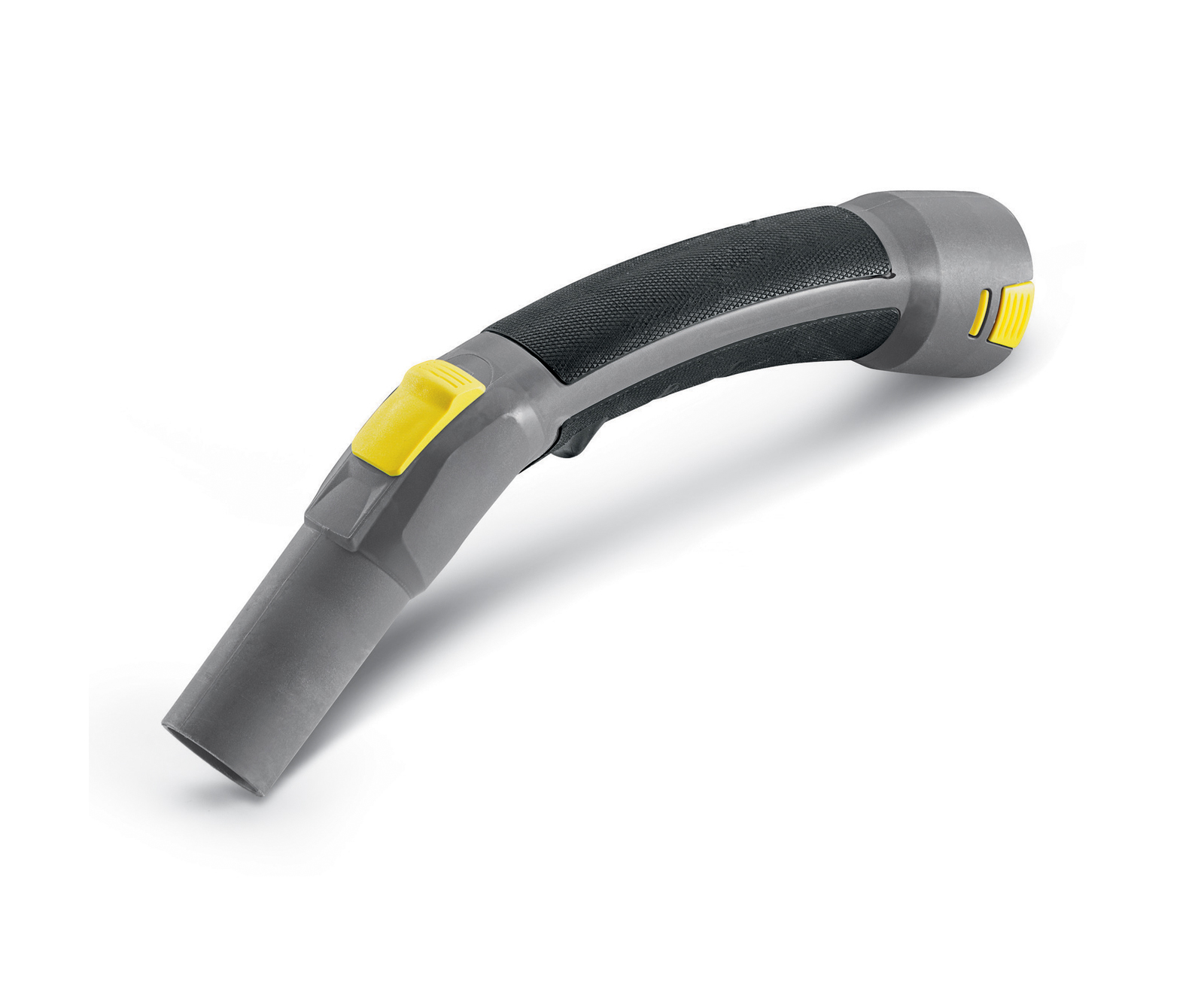

Bend
7 / 8

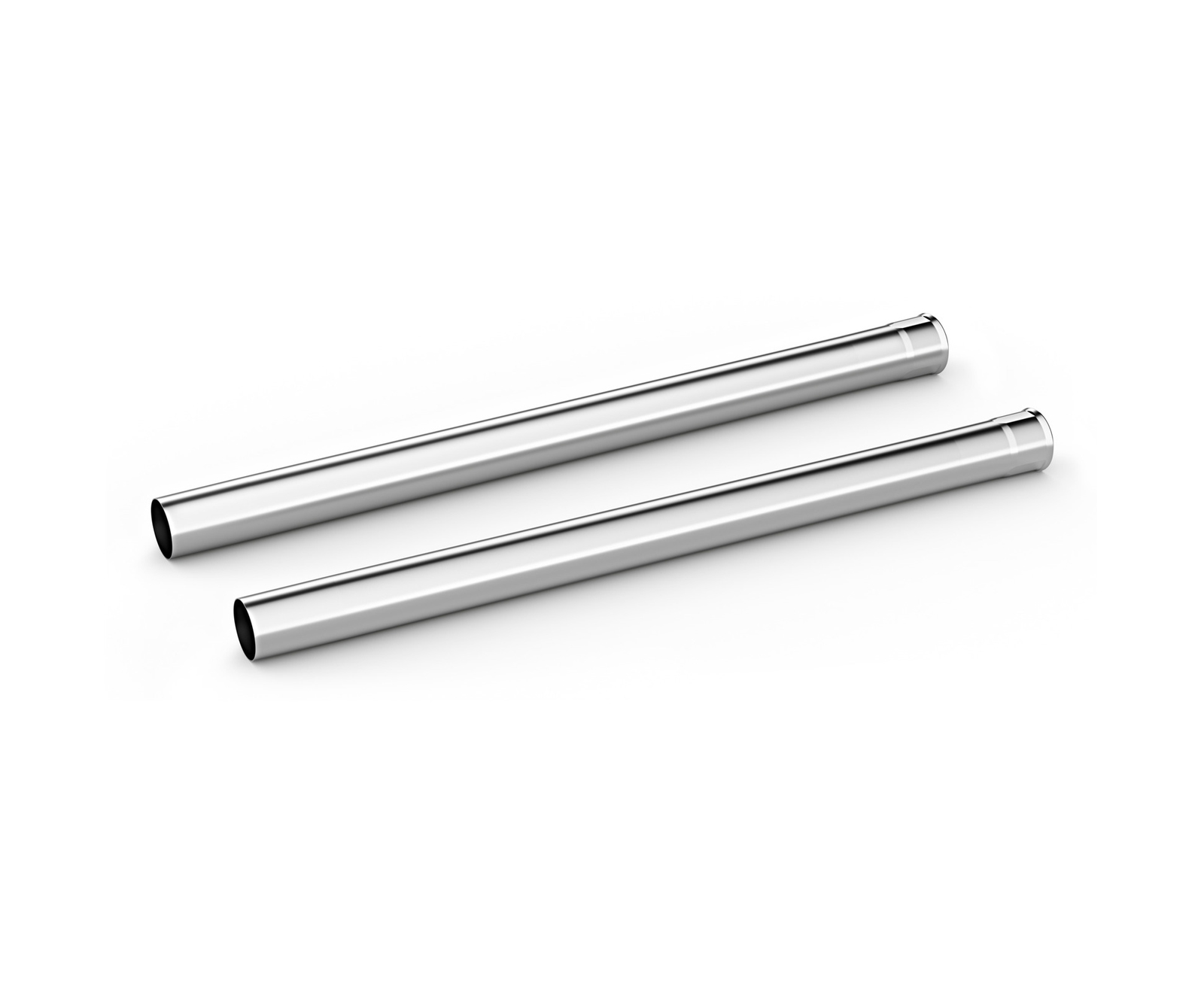

Chrome-plated suction tube
8 / 8
Use in offices

T 10/1 (part number: 1.527-150.0)

Accessory storage

Filter basket

Convenient foot switch

Cable hook

Bend

Chrome-plated suction tube

Use in offices








DESCRIPTION



This compact unit has a 1.250 W rating and generates a high vacuum of 24.4 kPa (244 mbar). It is operated via a foot switch without the need to stoop. The handily shaped, curved grip with clip system and infinitely adjustable suction power permits fatigue-free working. Suction hose length appr. 2.5 m. The cleaner owes its good rolling properties to a chassis fitted with two fixed castors and two steering castors. An all-round bumper ensures that the impact-resistant, 10-litre capacity container does not damage furniture. The T 10/ 1 comes with a fleece filter bag as standard. This holds up twice as much dust as conventional paper filters. A six-stage filter system ensures impeccable retention performance. In addition to the three-ply fleece filter bag, a motor protection filter, exhaust filter and permanent main filter ensure that the exhaust air is clean. The main filter is made of washable nylon, so the machine can be operated without a dust bag.



FEATURES AND BENEFITS



Cable hook
The simple attachment of the power cable at the cable hook prevents tripping hazards during transport.


On-board accessory storage
The accessory storage is integrated in the large bumper.



SPECIFICATIONS



Technical data

Equipment



Air flow rate (l/s)
53

Vacuum (mbar/kPa)
240 / 24

Container capacity (l)
10

Max. rated input power (W)
max. 800

Standard nominal width
ID / 35

Cable length (m)
10

Sound pressure level (dB(A))
59

Turbine power (W)
800

Phase (Ph)
1

Frequency (Hz)
50 - 60

Voltage (V)
220 - 240

Weight without accessories (kg)
6.3

Dimensions (L × W × H) (mm)
355 x 310 x 385

Suction hose, 2.5 m
Suction Tube, 2 piece(s), 0.5 m
Filter bag, fleece
Washable nylon filter (main filter)
Container material, plastic
Clip system for hose extension
Safety class, II
Permanent filter basket, nylon



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions



T 10/1

This machine is a supremely robust, functional and powerful dry vacuum cleaner for professional users with optimal ergonomic properties and a compact construction, which is developed for the specific needs from hotels, gastronomy, contract cleaners and retail.





1 / 8
T 10/1 (part number: 1.527-150.0)
2 / 8
Accessory storage
3 / 8
Filter basket
4 / 8
Convenient foot switch
5 / 8
Cable hook
6 / 8
Bend
7 / 8
Chrome-plated suction tube
8 / 8
Use in offices

T 10/1 (part number: 1.527-150.0)

Accessory storage

Filter basket

Convenient foot switch

Cable hook

Bend

Chrome-plated suction tube

Use in offices








DESCRIPTION



This compact unit has a 1.250 W rating and generates a high vacuum of 24.4 kPa (244 mbar). It is operated via a foot switch without the need to stoop. The handily shaped, curved grip with clip system and infinitely adjustable suction power permits fatigue-free working. Suction hose length appr. 2.5 m. The cleaner owes its good rolling properties to a chassis fitted with two fixed castors and two steering castors. An all-round bumper ensures that the impact-resistant, 10-litre capacity container does not damage furniture. The T 10/ 1 comes with a fleece filter bag as standard. This holds up twice as much dust as conventional paper filters. A six-stage filter system ensures impeccable retention performance. In addition to the three-ply fleece filter bag, a motor protection filter, exhaust filter and permanent main filter ensure that the exhaust air is clean. The main filter is made of washable nylon, so the machine can be operated without a dust bag.



FEATURES AND BENEFITS



Cable hook
The simple attachment of the power cable at the cable hook prevents tripping hazards during transport.


On-board accessory storage
The accessory storage is integrated in the large bumper.



SPECIFICATIONS



Technical data

Equipment



Air flow rate (l/s)
53

Vacuum (mbar/kPa)
240 / 24

Container capacity (l)
10

Max. rated input power (W)
max. 800

Standard nominal width
ID / 35

Cable length (m)
10

Sound pressure level (dB(A))
59

Turbine power (W)
800

Phase (Ph)
1

Frequency (Hz)
50 - 60

Voltage (V)
220 - 240

Weight without accessories (kg)
6.3

Dimensions (L × W × H) (mm)
355 x 310 x 385

Suction hose, 2.5 m
Suction Tube, 2 piece(s), 0.5 m
Filter bag, fleece
Washable nylon filter (main filter)
Container material, plastic
Clip system for hose extension
Safety class, II
Permanent filter basket, nylon



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions



T 10/1

This machine is a supremely robust, functional and powerful dry vacuum cleaner for professional users with optimal ergonomic properties and a compact construction, which is developed for the specific needs from hotels, gastronomy, contract cleaners and retail.





1 / 8
T 10/1 (part number: 1.527-150.0)
2 / 8
Accessory storage
3 / 8
Filter basket
4 / 8
Convenient foot switch
5 / 8
Cable hook
6 / 8
Bend
7 / 8
Chrome-plated suction tube
8 / 8
Use in offices







DESCRIPTION



This compact unit has a 1.250 W rating and generates a high vacuum of 24.4 kPa (244 mbar). It is operated via a foot switch without the need to stoop. The handily shaped, curved grip with clip system and infinitely adjustable suction power permits fatigue-free working. Suction hose length appr. 2.5 m. The cleaner owes its good rolling properties to a chassis fitted with two fixed castors and two steering castors. An all-round bumper ensures that the impact-resistant, 10-litre capacity container does not damage furniture. The T 10/ 1 comes with a fleece filter bag as standard. This holds up twice as much dust as conventional paper filters. A six-stage filter system ensures impeccable retention performance. In addition to the three-ply fleece filter bag, a motor protection filter, exhaust filter and permanent main filter ensure that the exhaust air is clean. The main filter is made of washable nylon, so the machine can be operated without a dust bag.



FEATURES AND BENEFITS



Cable hook
The simple attachment of the power cable at the cable hook prevents tripping hazards during transport.


On-board accessory storage
The accessory storage is integrated in the large bumper.



SPECIFICATIONS



Technical data



Air flow rate (l/s)
53


Vacuum (mbar/kPa)
240 / 24


Container capacity (l)
10


Max. rated input power (W)
max. 800


Standard nominal width
ID / 35


Cable length (m)
10


Sound pressure level (dB(A))
59


Turbine power (W)
800


Phase (Ph)
1


Frequency (Hz)
50 - 60


Voltage (V)
220 - 240


Weight without accessories (kg)
6.3


Dimensions (L × W × H) (mm)
355 x 310 x 385



Equipment



Suction hose, 2.5 m


Suction Tube, 2 piece(s), 0.5 m


Filter bag, fleece


Washable nylon filter (main filter)


Container material, plastic


Clip system for hose extension


Safety class, II


Permanent filter basket, nylon



DOWNLOADS



Product information

Operating Instructions

Safety instructions

  Specification   Operating instructions   Safety instructions


VIDEOS



  • Advantages of standardizing accessory diameter

  •
  • Accessory adaptor

  •
  • Filter of NT Vacuum Cleaner

  •
  • Checking of dry canister vacuum cleaner

  •
  • Battery / Charger

  •
  • Power Tool Connection



APPLICATION AREAS



Offices


Stores


Cafeterias


Restaurants


Hotels
