HDS 5/13 U

The affordably priced "HDS 5/13 U" hot water high-pressure cleaner impresses with a working pressure of 130 bar. The new upright design ensures exceptional mobility and ergonomics.





1 / 8

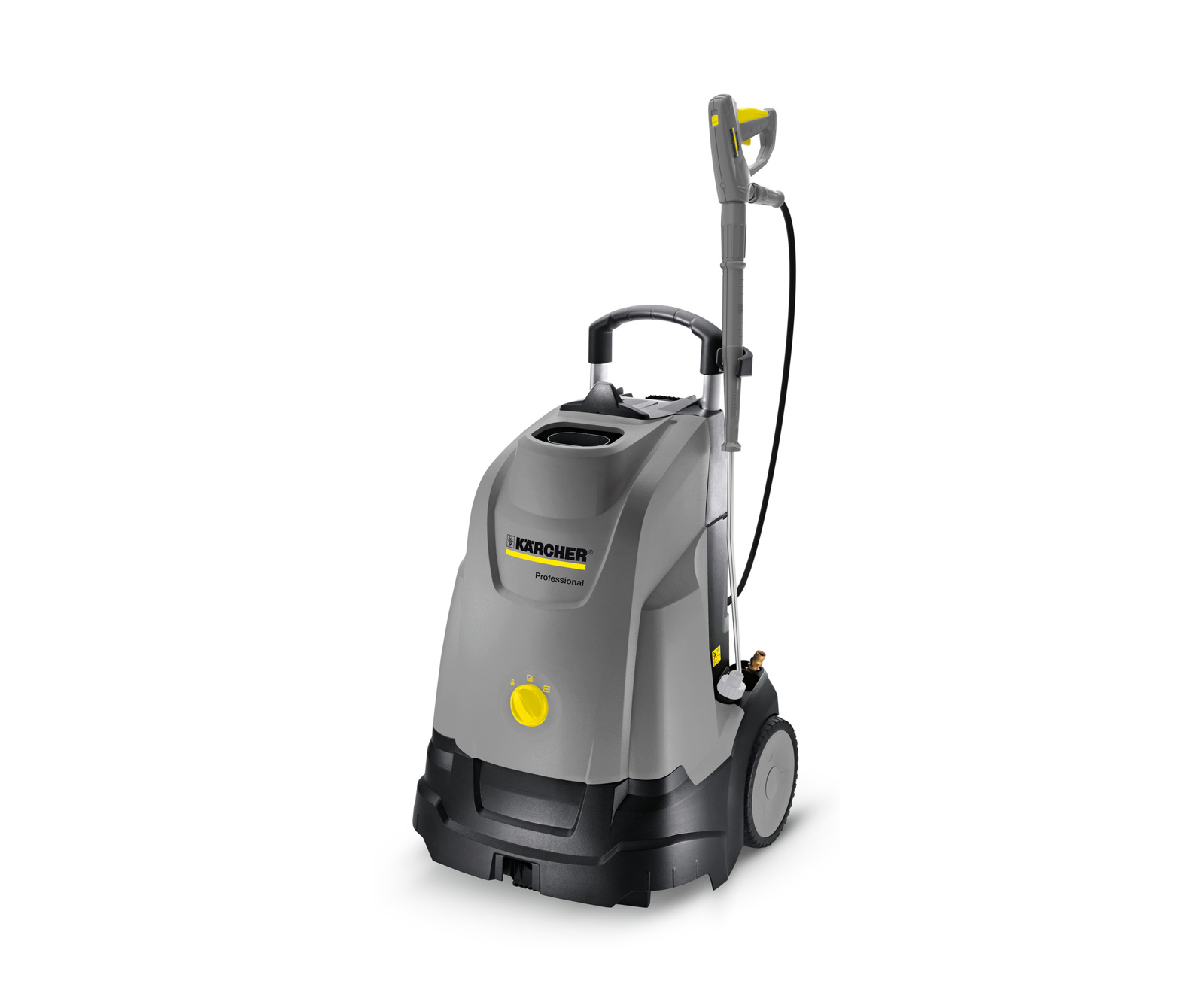

HDS 5/13 U (part number: 1.064-908.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Easy fuel filling
4 / 8

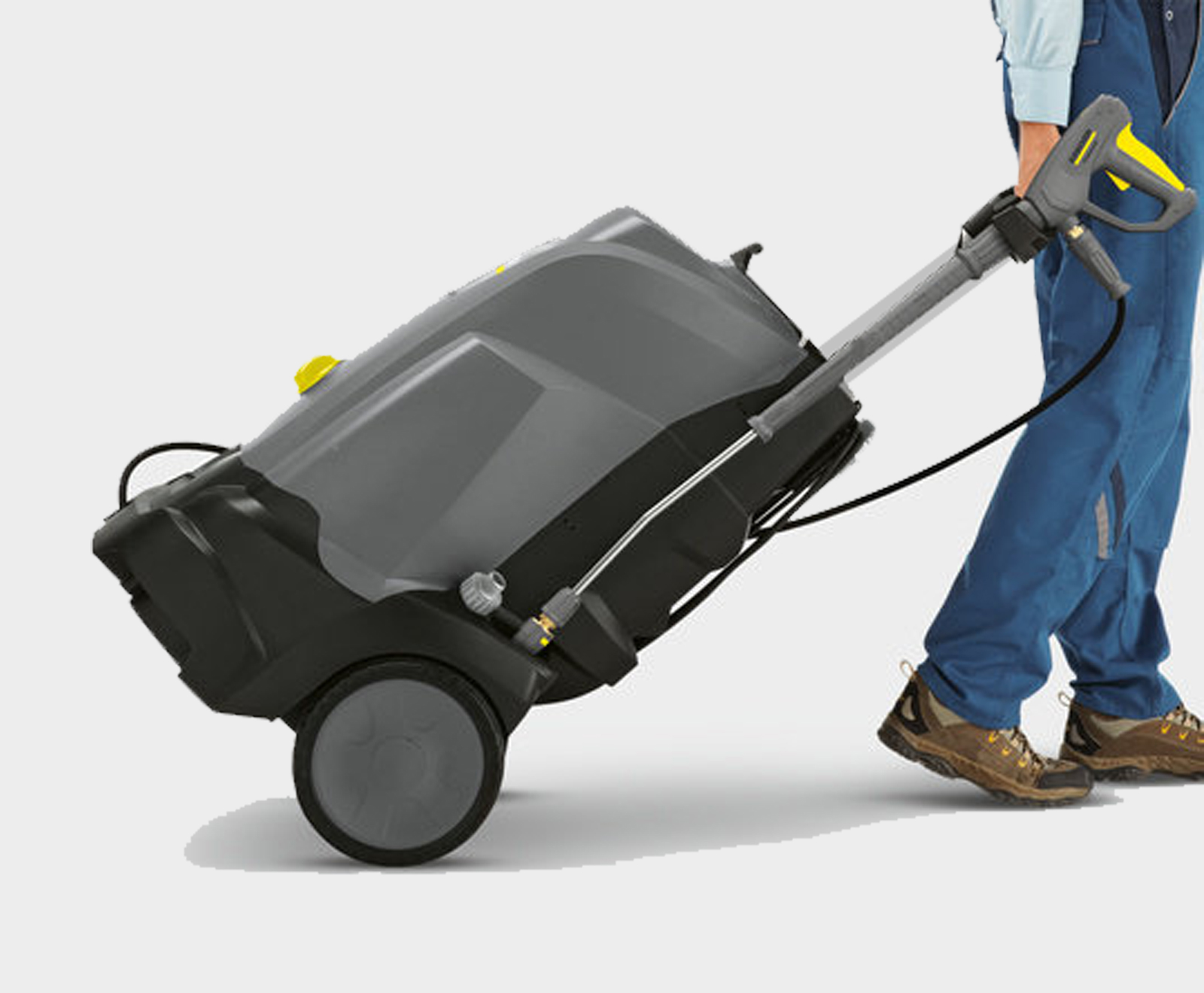

Effortless transport
5 / 8

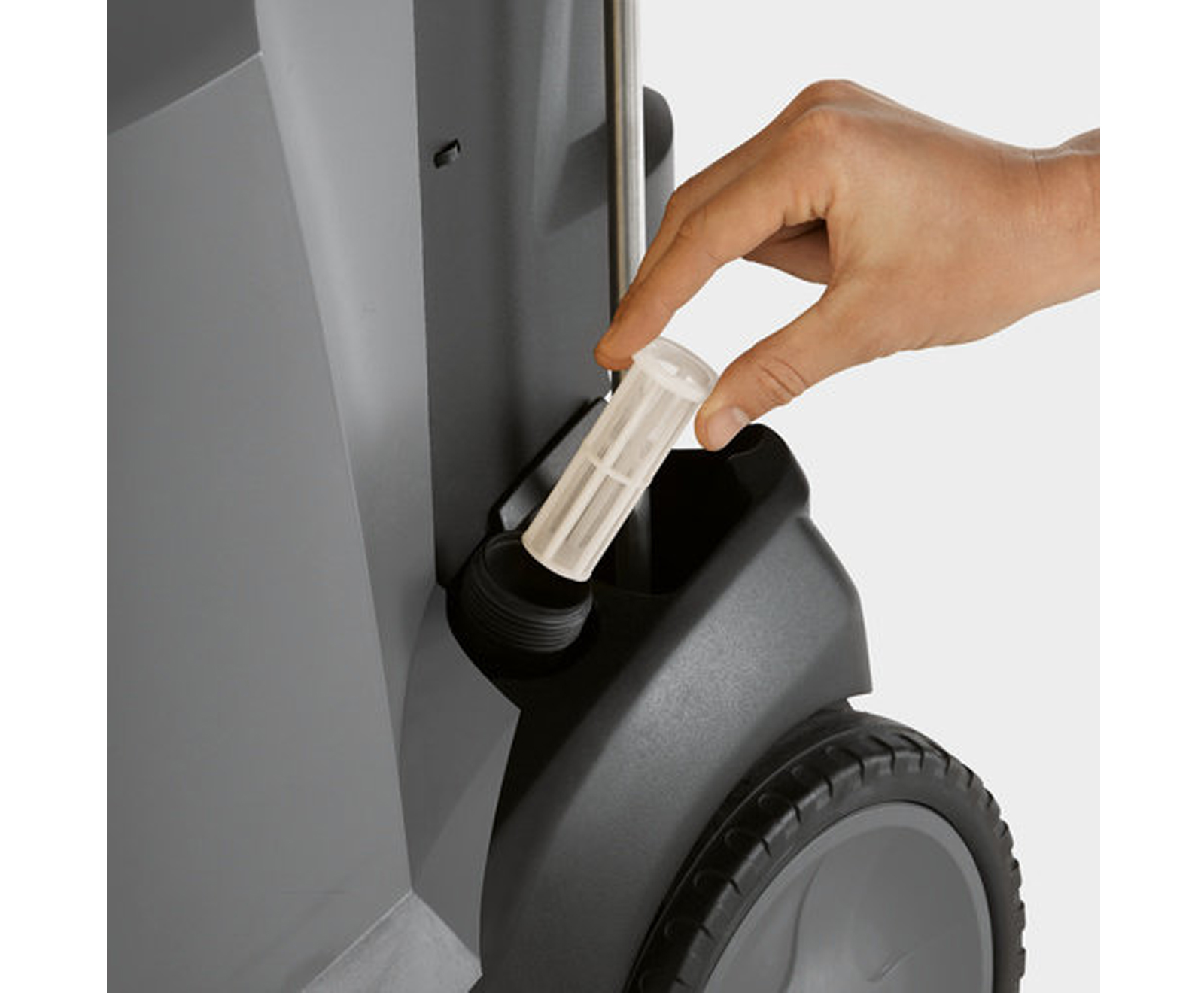

Water fine filter
6 / 8
Compact design
7 / 8
For washing vehicles
8 / 8
For washing machines

HDS 5/13 U (part number: 1.064-908.0)

EASY!Force high-pressure gun

Easy fuel filling

Effortless transport

Water fine filter

Compact design

For washing vehicles

For washing machines








DESCRIPTION



"HDS 5/13 U": the entry-level model in the class of hot water high-pressure cleaners impresses with its sophisticated and innovative upright design. This type of machine design results in reduced weight and very compact dimensions. This makes the machine very easy to transport in estate cars and – thanks to the large wheels and push handle – very mobile on uneven surfaces. A highly efficient cleaning performance is guaranteed by the combination of patented nozzle technology, turbo blower and increased pump efficiency. With the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, the machine is very convenient to use. Easy operation and storage options for the hose and spray lance add to the machine's extensive equipment.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Innovative upright design
Effortless transport over landings or stairs.
Large wheels for unpaved surfaces.


Water fine filter
Efficiently protects high-pressure pump against contamination.
Easy to remove from outside.


Compact design
Space-saving storage and transport spill-proof pump and fuel tank for flat transport.
Ideal for small service vehicles.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 230 / 50

Flow rate (l/h)
500

Working pressure (bar/MPa)
125 / 12.5

Max. temperature (supply 12°C) (°C)
max. 80

Connection load (kW)
2.6

Heating oil or gas consumption, full load (kg/h)
3.1

Fuel tank (l)
6.5

Weight without accessories (kg)
69

Ship weight incl. packaging (kg)
77.2

Dimensions (L × W × H) (mm)
618 x 618 x 994

Spray gun, EASY!Force Advanced
High-pressure hose, 10 m
Spray lance, 840 mm
Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

Safety instructions

  Specification   Shortlist of spare parts   Operating instructions   Safety instructions



HDS 5/13 U

The affordably priced "HDS 5/13 U" hot water high-pressure cleaner impresses with a working pressure of 130 bar. The new upright design ensures exceptional mobility and ergonomics.





1 / 8
HDS 5/13 U (part number: 1.064-908.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Easy fuel filling
4 / 8
Effortless transport
5 / 8
Water fine filter
6 / 8
Compact design
7 / 8
For washing vehicles
8 / 8
For washing machines

HDS 5/13 U (part number: 1.064-908.0)

EASY!Force high-pressure gun

Easy fuel filling

Effortless transport

Water fine filter

Compact design

For washing vehicles

For washing machines








DESCRIPTION



"HDS 5/13 U": the entry-level model in the class of hot water high-pressure cleaners impresses with its sophisticated and innovative upright design. This type of machine design results in reduced weight and very compact dimensions. This makes the machine very easy to transport in estate cars and – thanks to the large wheels and push handle – very mobile on uneven surfaces. A highly efficient cleaning performance is guaranteed by the combination of patented nozzle technology, turbo blower and increased pump efficiency. With the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, the machine is very convenient to use. Easy operation and storage options for the hose and spray lance add to the machine's extensive equipment.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Innovative upright design
Effortless transport over landings or stairs.
Large wheels for unpaved surfaces.


Water fine filter
Efficiently protects high-pressure pump against contamination.
Easy to remove from outside.


Compact design
Space-saving storage and transport spill-proof pump and fuel tank for flat transport.
Ideal for small service vehicles.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 230 / 50

Flow rate (l/h)
500

Working pressure (bar/MPa)
125 / 12.5

Max. temperature (supply 12°C) (°C)
max. 80

Connection load (kW)
2.6

Heating oil or gas consumption, full load (kg/h)
3.1

Fuel tank (l)
6.5

Weight without accessories (kg)
69

Ship weight incl. packaging (kg)
77.2

Dimensions (L × W × H) (mm)
618 x 618 x 994

Spray gun, EASY!Force Advanced
High-pressure hose, 10 m
Spray lance, 840 mm
Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

Safety instructions

  Specification   Shortlist of spare parts   Operating instructions   Safety instructions



HDS 5/13 U

The affordably priced "HDS 5/13 U" hot water high-pressure cleaner impresses with a working pressure of 130 bar. The new upright design ensures exceptional mobility and ergonomics.





1 / 8
HDS 5/13 U (part number: 1.064-908.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Easy fuel filling
4 / 8
Effortless transport
5 / 8
Water fine filter
6 / 8
Compact design
7 / 8
For washing vehicles
8 / 8
For washing machines







DESCRIPTION



"HDS 5/13 U": the entry-level model in the class of hot water high-pressure cleaners impresses with its sophisticated and innovative upright design. This type of machine design results in reduced weight and very compact dimensions. This makes the machine very easy to transport in estate cars and – thanks to the large wheels and push handle – very mobile on uneven surfaces. A highly efficient cleaning performance is guaranteed by the combination of patented nozzle technology, turbo blower and increased pump efficiency. With the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, the machine is very convenient to use. Easy operation and storage options for the hose and spray lance add to the machine's extensive equipment.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Innovative upright design
Effortless transport over landings or stairs.
Large wheels for unpaved surfaces.


Water fine filter
Efficiently protects high-pressure pump against contamination.
Easy to remove from outside.


Compact design
Space-saving storage and transport spill-proof pump and fuel tank for flat transport.
Ideal for small service vehicles.



SPECIFICATIONS



Technical data



Current type (Ph/V/Hz)
1 / 230 / 50


Flow rate (l/h)
500


Working pressure (bar/MPa)
125 / 12.5


Max. temperature (supply 12°C) (°C)
max. 80


Connection load (kW)
2.6


Heating oil or gas consumption, full load (kg/h)
3.1


Fuel tank (l)
6.5


Weight without accessories (kg)
69


Ship weight incl. packaging (kg)
77.2


Dimensions (L × W × H) (mm)
618 x 618 x 994



Equipment



Spray gun, EASY!Force Advanced


High-pressure hose, 10 m


Spray lance, 840 mm


Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

  Specification   Shortlist of spare parts   Operating instructions


Safety instructions

  Safety instructions


VIDEOS



  • Production of EASY!Force Advanced

  • Demonstration of EASY!Force Advanced

  • Comparison of Cold and Hot Water Cleaning



APPLICATION AREAS



Vehicle cleaning


Device and machine cleaning


Workshop cleaning


Cleaning of outside areas


Service station cleaning


Facade cleaning


Swimming pool cleaning


Cleaning of sports facilities


Cleaning during production processes


Cleaning of production facilities
