Kärcher HDS 6/14 C


	HOME & GARDEN PROFESSIONAL

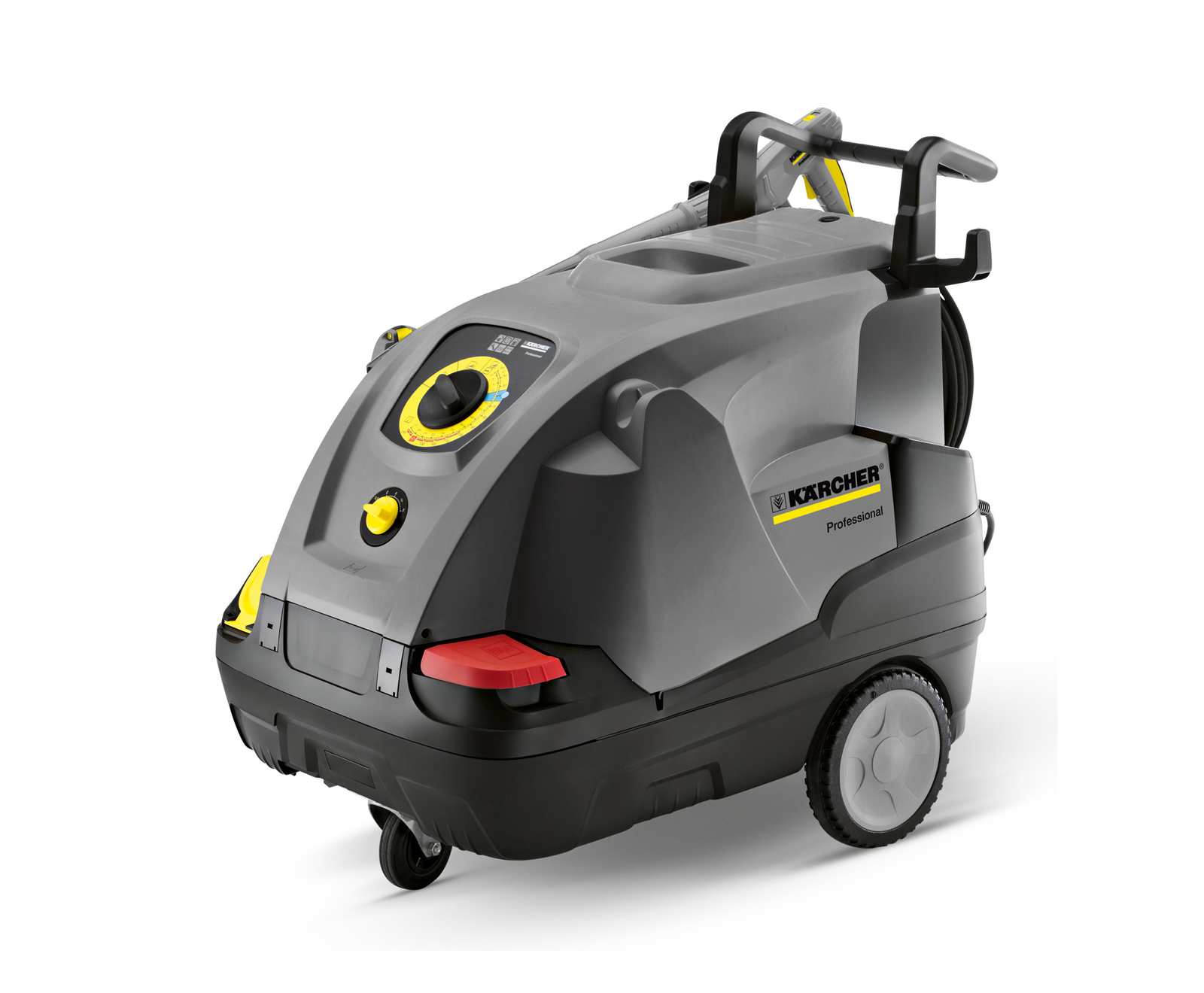

	HDS 6/14 C Single-phase hot water high-pressure cleaner "HDS 6/14 C" with eco!efficiency mode, EASY!Force trigger gun, as well as intuitive single-button operation.

1 / 8

2 / 8

3 / 8

4 / 8

5 / 8

6 / 8

7 / 8

8 / 8

❮ ❯

	DESCRIPTION FEATURES AND BENEFITS SPECIFICATIONS DOWNLOADS VIDEOS APPLICATION AREAS

	DESCRIPTION

	Powerful hot water high-pressure cleaner in the HDS compact class from Kärcher: with the unique eco!efficiency mode the HDS 6/14 C combines economical and environment-friendly work with superb comfort for the user. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. The operation is also effortless, after all the machine has an intuitive single-button operation. Large wheels and a steering roller/castor ensure smooth mobility, whereas the robust chassis with integrated tanks for fuel and cleaning agent also survives tougher applications without difficulty. Practical storage compartments for accessories, nozzles, etc. round off the clever concept ofthe 1-phase machine.

FEATURES AND BENEFITS

Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.

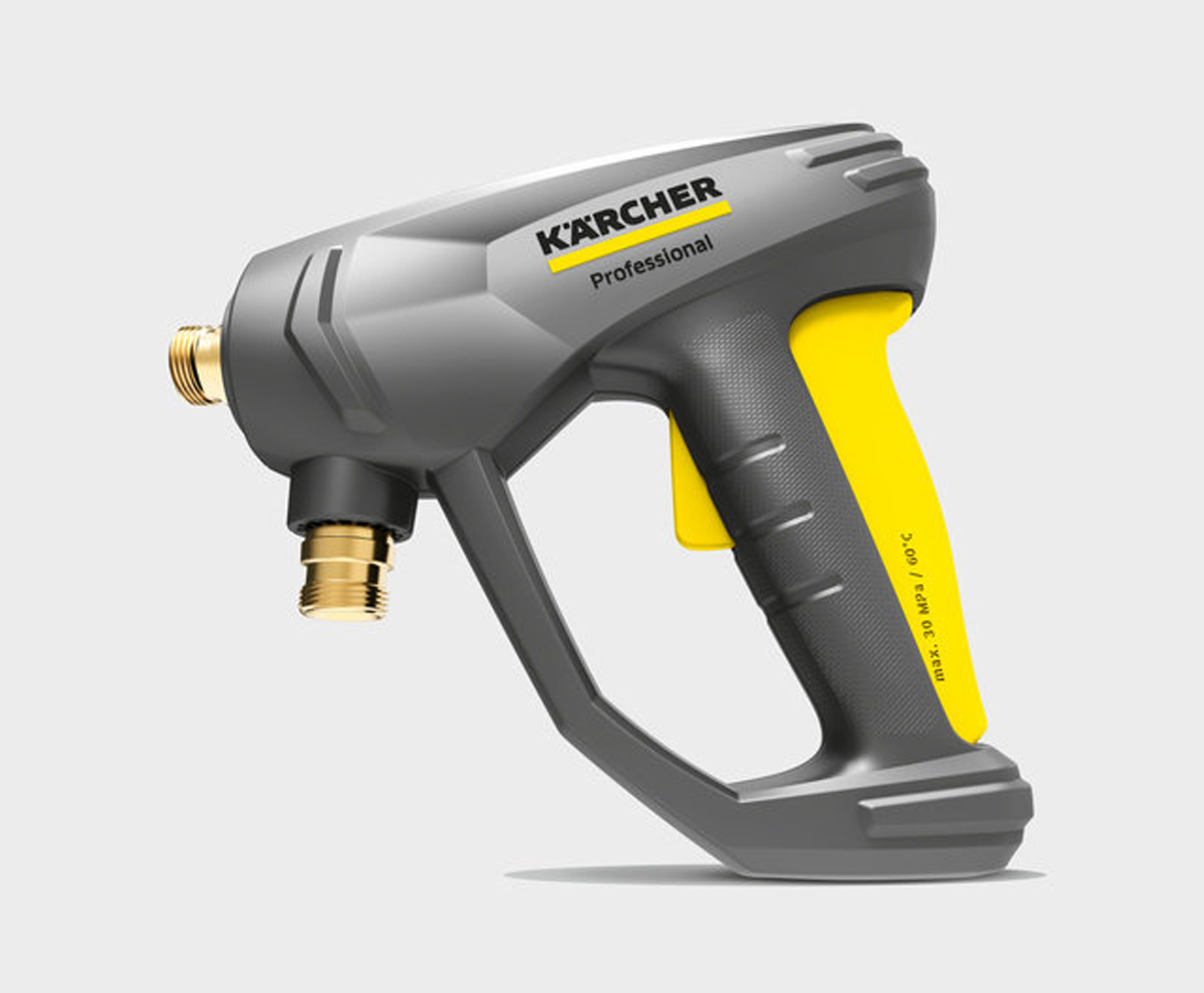

▪	Effortless operation at last: the EASY!Force high-pressure gun.
▪	EASY!Lock quick-release couplings: durable, robust and five times faster than screws.

Efficiency

▪	Eco!efficiency mode – efficient and environmentally friendly, even when used for prolonged periods.
▪	Reduces fuel consumption and CO2 emissions by 20%.
▪	Accurate cleaning agent dosing unit with clear rinse function.

Ease of use

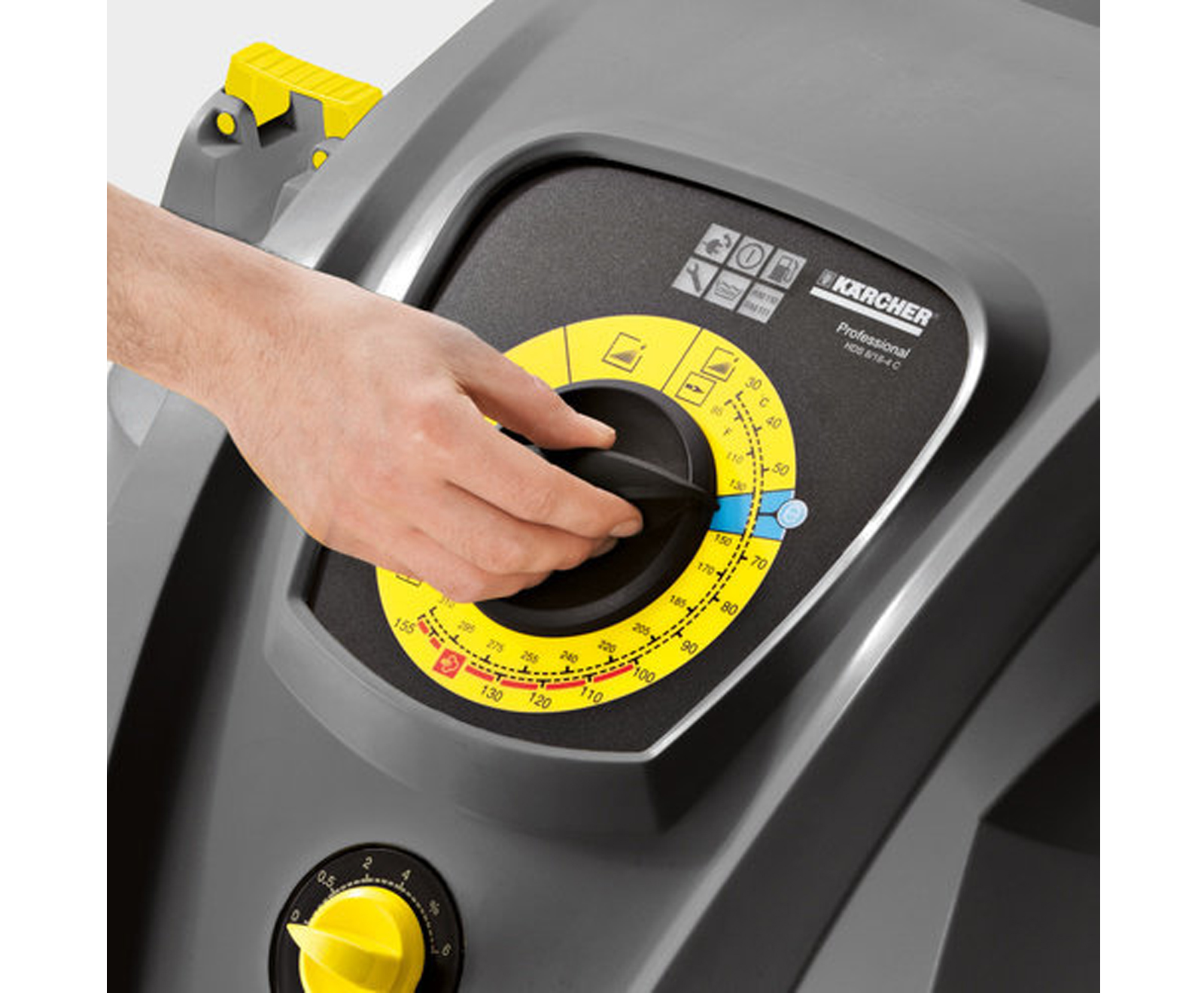

▪	Intuitive operation thanks to the large single-button selector switch.

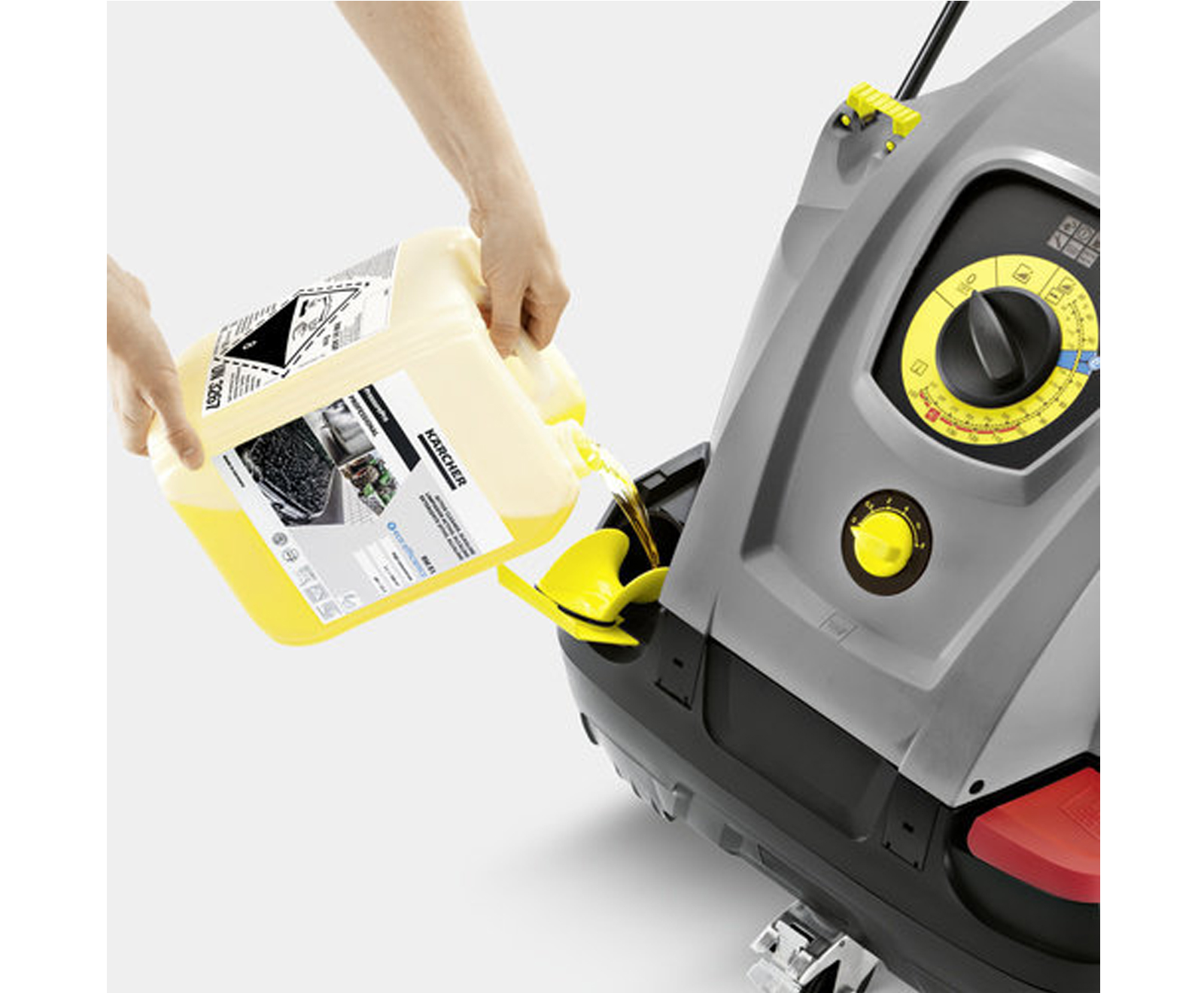

▪	Large tank opening with filling chute.

Storage

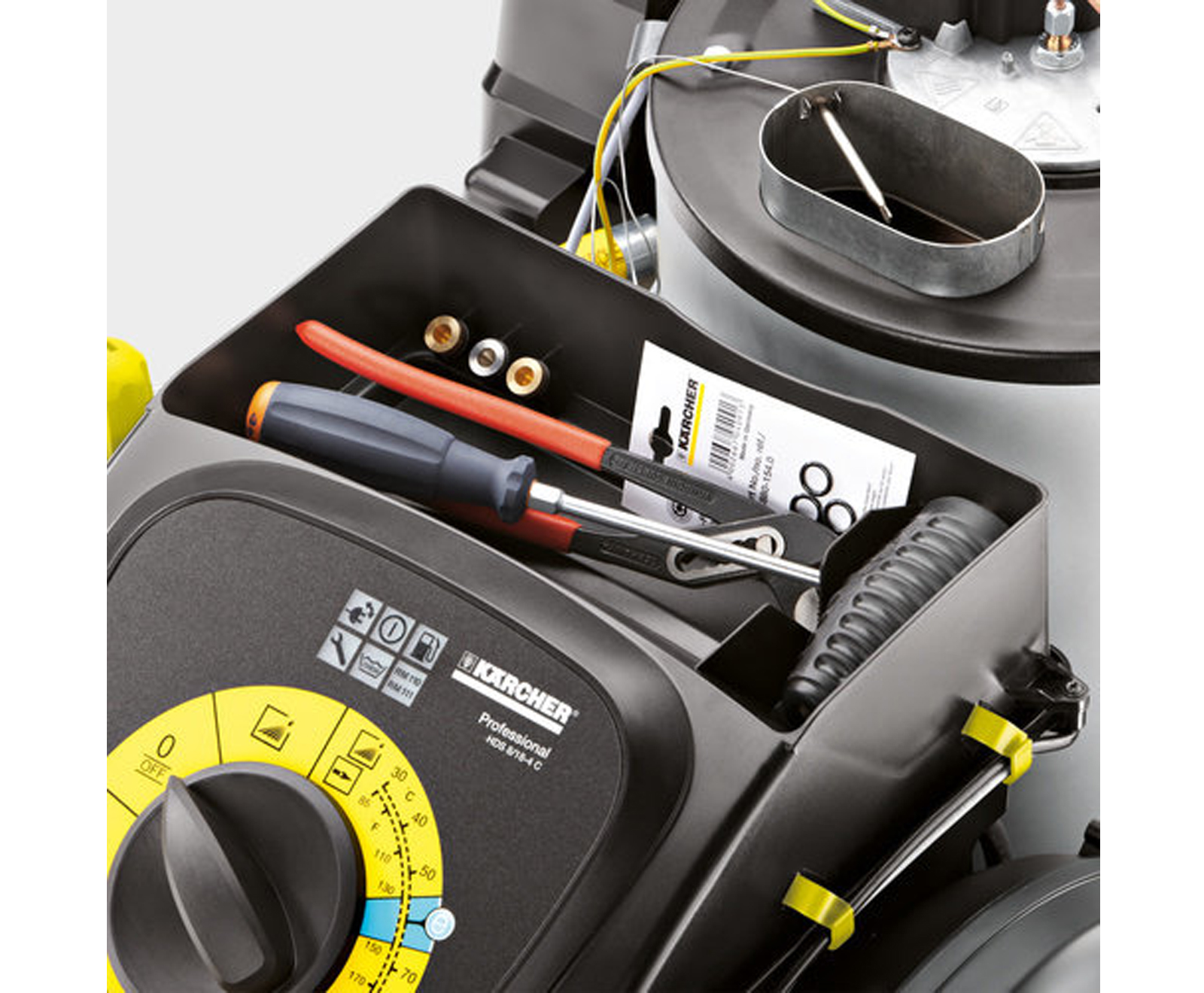

▪	Lockable accessory compartment for nozzles, tools, etc.
▪	Storage hooks for power cable and high-pressure hose.
▪	Integrated lance holder for transport.

Reliability

▪	The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
▪	Large water filter protects pump against damage.
▪	Water softening system protects the heating coil against calcification damage.

Mobility

▪	"Jogger" design with large wheels and steering roller.
▪	Large integrated handles in the chassis.
▪	Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.

SPECIFICATIONS

Technical data

Equipment

Current type (Ph/V/Hz)

1 / 230 / 50

Flow rate (l/h)

240 - 560

Working pressure (bar/MPa)

30 - 140 / 3 - 14

Max. temperature (supply 12°C) (°C)

max. 80

Connection load (kW)

3.6

Heating oil or gas consumption, full load (kg/h)

3.5

Power cable (m)

Fuel tank (l)

Weight without accessories (kg)

100

Ship weight incl. packaging (kg)

108.8

Dimensions (L × W × H) (mm)

1060 x 650 x 920

▪	Spray gun, EASY!Force Advanced

▪	High-pressure hose, 10 m

▪	Spray lance, 1050 mm

▪	Power nozzle

▪	Soft Damping System (SDS)

▪	Pressure cut-off

▪	Integrated fuel and detergent tank

DOWNLOADS

Product information

Shortlist of spare parts

Quickstart instructions

Operating instructions (dated May 2016)

Operating instructions (dated Jan 2018)

Safety instructions


	HOME & GARDEN PROFESSIONAL

	HDS 6/14 C Single-phase hot water high-pressure cleaner "HDS 6/14 C" with eco!efficiency mode, EASY!Force trigger gun, as well as intuitive single-button operation.

1 / 8

2 / 8

3 / 8

4 / 8

5 / 8

6 / 8

7 / 8

8 / 8

❮ ❯

	DESCRIPTION FEATURES AND BENEFITS SPECIFICATIONS DOWNLOADS VIDEOS APPLICATION AREAS

	DESCRIPTION

	Powerful hot water high-pressure cleaner in the HDS compact class from Kärcher: with the unique eco!efficiency mode the HDS 6/14 C combines economical and environment-friendly work with superb comfort for the user. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. The operation is also effortless, after all the machine has an intuitive single-button operation. Large wheels and a steering roller/castor ensure smooth mobility, whereas the robust chassis with integrated tanks for fuel and cleaning agent also survives tougher applications without difficulty. Practical storage compartments for accessories, nozzles, etc. round off the clever concept ofthe 1-phase machine.

FEATURES AND BENEFITS

Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.

▪	Effortless operation at last: the EASY!Force high-pressure gun.
▪	EASY!Lock quick-release couplings: durable, robust and five times faster than screws.

Efficiency

▪	Eco!efficiency mode – efficient and environmentally friendly, even when used for prolonged periods.
▪	Reduces fuel consumption and CO2 emissions by 20%.
▪	Accurate cleaning agent dosing unit with clear rinse function.

Ease of use

▪	Intuitive operation thanks to the large single-button selector switch.
▪	Large tank opening with filling chute.

Storage

▪	Lockable accessory compartment for nozzles, tools, etc.
▪	Storage hooks for power cable and high-pressure hose.
▪	Integrated lance holder for transport.

Reliability

▪	The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
▪	Large water filter protects pump against damage.
▪	Water softening system protects the heating coil against calcification damage.

Mobility

▪	"Jogger" design with large wheels and steering roller.
▪	Large integrated handles in the chassis.
▪	Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.

SPECIFICATIONS

Technical data

Equipment

Current type (Ph/V/Hz)

1 / 230 / 50

Flow rate (l/h)

240 - 560

Working pressure (bar/MPa)

30 - 140 / 3 - 14

Max. temperature (supply 12°C) (°C)

max. 80

Connection load (kW)

3.6

Heating oil or gas consumption, full load (kg/h)

3.5

Power cable (m)

Fuel tank (l)

Weight without accessories (kg)

100

Ship weight incl. packaging (kg)

108.8

Dimensions (L × W × H) (mm)

1060 x 650 x 920

▪	Spray gun, EASY!Force Advanced

▪	High-pressure hose, 10 m

▪	Spray lance, 1050 mm

▪	Power nozzle

▪	Soft Damping System (SDS)

▪	Pressure cut-off

▪	Integrated fuel and detergent tank

DOWNLOADS

Product information

Shortlist of spare parts

Quickstart instructions

Operating instructions (dated May 2016)

Operating instructions (dated Jan 2018)

Safety instructions


	HOME & GARDEN PROFESSIONAL

	HDS 6/14 C Single-phase hot water high-pressure cleaner "HDS 6/14 C" with eco!efficiency mode, EASY!Force trigger gun, as well as intuitive single-button operation.

	1 / 8 2 / 8 3 / 8 4 / 8 5 / 8 6 / 8 7 / 8 8 / 8 ❮ ❯

	DESCRIPTION FEATURES AND BENEFITS SPECIFICATIONS DOWNLOADS VIDEOS APPLICATION AREAS

	DESCRIPTION

	Powerful hot water high-pressure cleaner in the HDS compact class from Kärcher: with the unique eco!efficiency mode the HDS 6/14 C combines economical and environment-friendly work with superb comfort for the user. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. The operation is also effortless, after all the machine has an intuitive single-button operation. Large wheels and a steering roller/castor ensure smooth mobility, whereas the robust chassis with integrated tanks for fuel and cleaning agent also survives tougher applications without difficulty. Practical storage compartments for accessories, nozzles, etc. round off the clever concept ofthe 1-phase machine.

FEATURES AND BENEFITS

Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.

▪	Effortless operation at last: the EASY!Force high-pressure gun.
▪	EASY!Lock quick-release couplings: durable, robust and five times faster than screws.

Efficiency

▪	Eco!efficiency mode – efficient and environmentally friendly, even when used for prolonged periods.
▪	Reduces fuel consumption and CO2 emissions by 20%.
▪	Accurate cleaning agent dosing unit with clear rinse function.

Ease of use

▪	Intuitive operation thanks to the large single-button selector switch.
▪	Large tank opening with filling chute.

Storage

▪	Lockable accessory compartment for nozzles, tools, etc.
▪	Storage hooks for power cable and high-pressure hose.
▪	Integrated lance holder for transport.

Reliability

▪	The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
▪	Large water filter protects pump against damage.
▪	Water softening system protects the heating coil against calcification damage.

Mobility

▪	"Jogger" design with large wheels and steering roller.
▪	Large integrated handles in the chassis.
▪	Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.

SPECIFICATIONS

Technical data

Current type (Ph/V/Hz)

1 / 230 / 50

Flow rate (l/h)

240 - 560

Working pressure (bar/MPa)

30 - 140 / 3 - 14

Max. temperature (supply 12°C) (°C)

max. 80

Connection load (kW)

3.6

Heating oil or gas consumption, full load (kg/h)

3.5

Power cable (m)

Fuel tank (l)

Weight without accessories (kg)

100

Ship weight incl. packaging (kg)

108.8

Dimensions (L × W × H) (mm)

1060 x 650 x 920

Equipment

▪	Spray gun, EASY!Force Advanced

▪	High-pressure hose, 10 m

▪	Spray lance, 1050 mm

▪	Power nozzle

▪	Soft Damping System (SDS)

▪	Pressure cut-off

▪	Integrated fuel and detergent tank

DOWNLOADS

Product information	Shortlist of spare parts	Quickstart instructions


Operating instructions (dated May 2016)	Operating instructions (dated Jan 2018)	Safety instructions
