HD 5/11 P

The portable class "HD 5/11 P" is compact, light and mobile. Equipment details: carrying handle, brass cylinder head and automatic pressure relief. For vertical and horizontal operation.





1 / 8

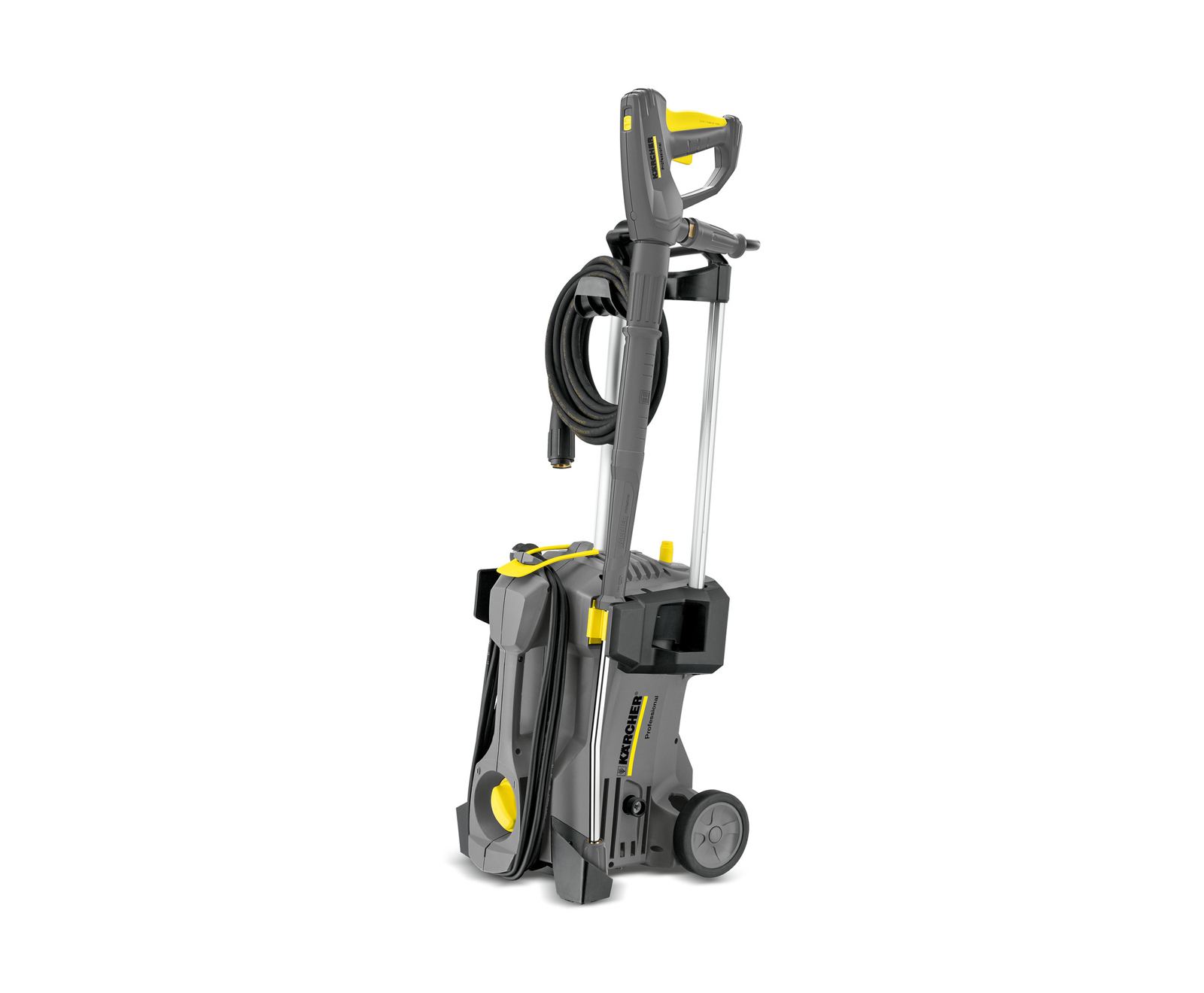

HD 5/11 P (part number: 1.520-960.0)
2 / 8
EASY!Force high-pressure gun
3 / 8

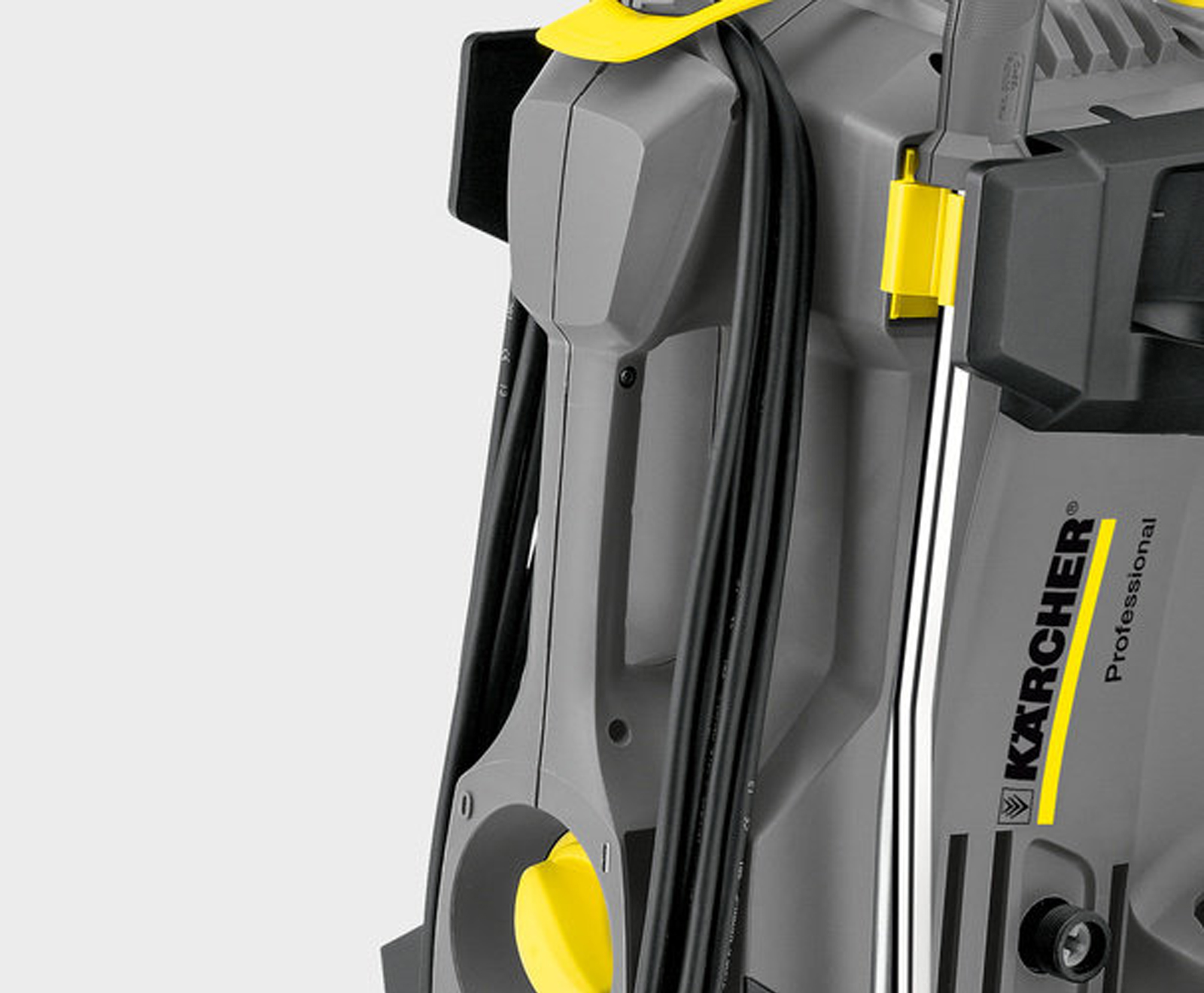

Integrated carrying handle
4 / 8

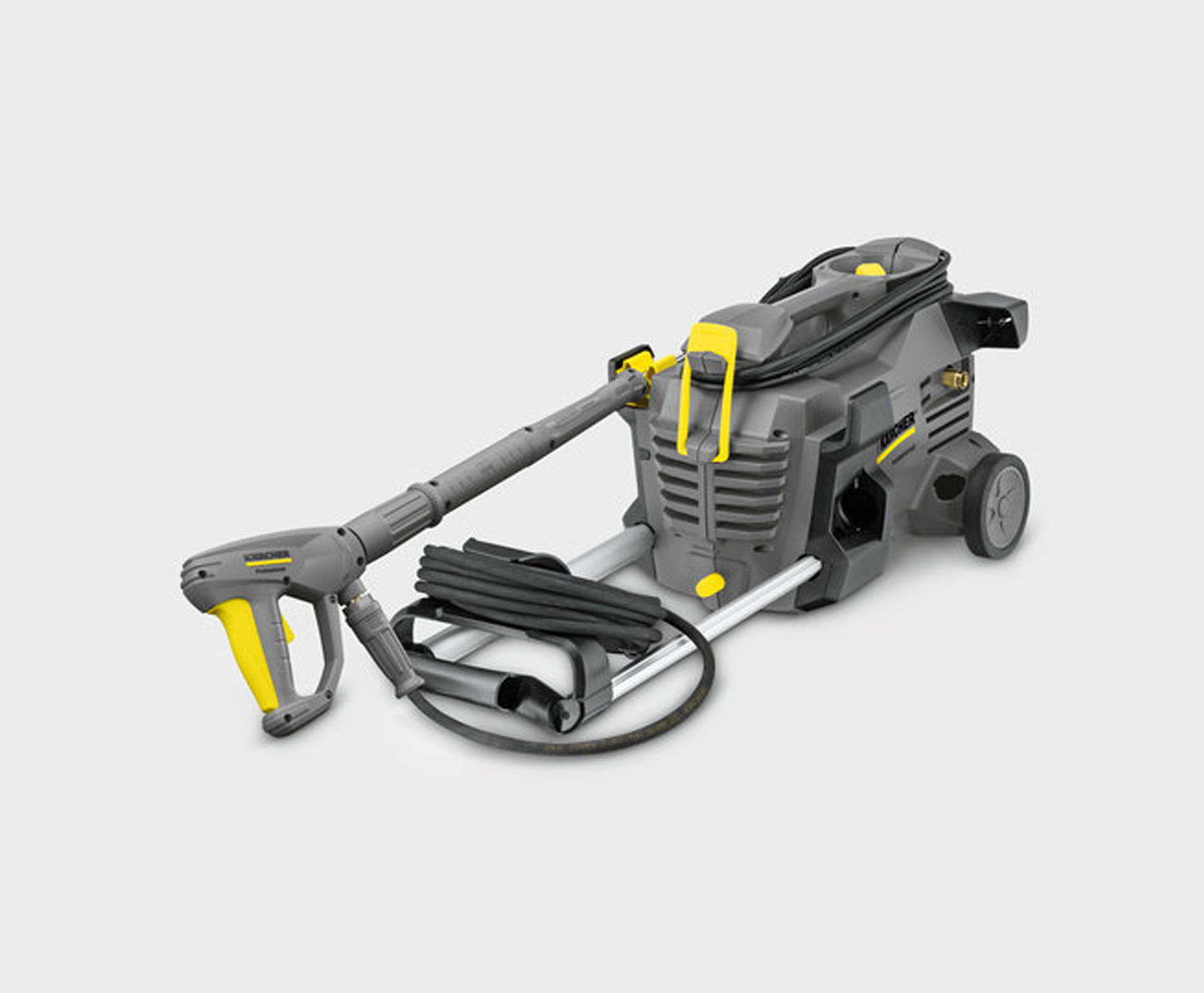

Horizontal operation possible
5 / 8

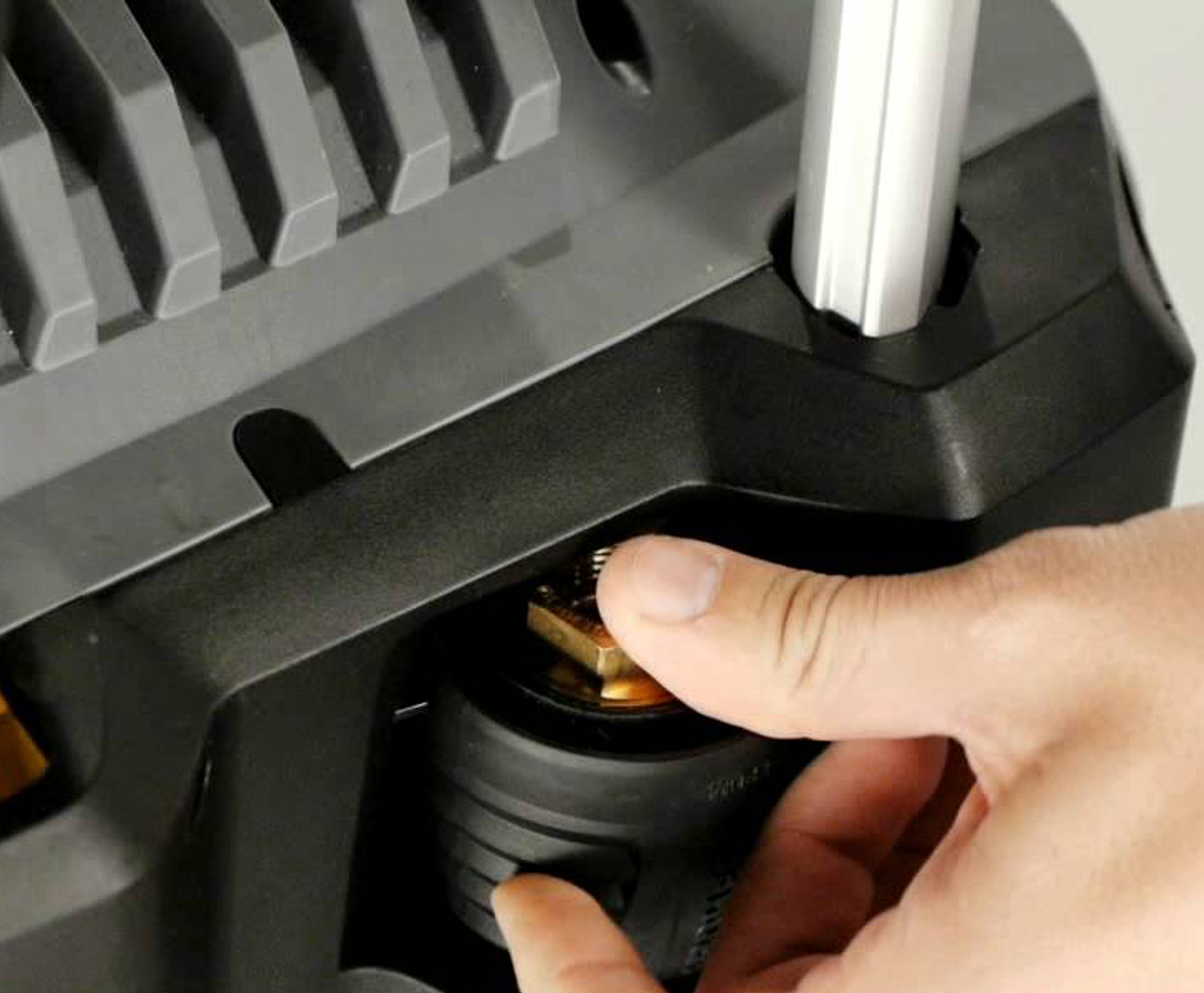

Nozzle compartment
6 / 8

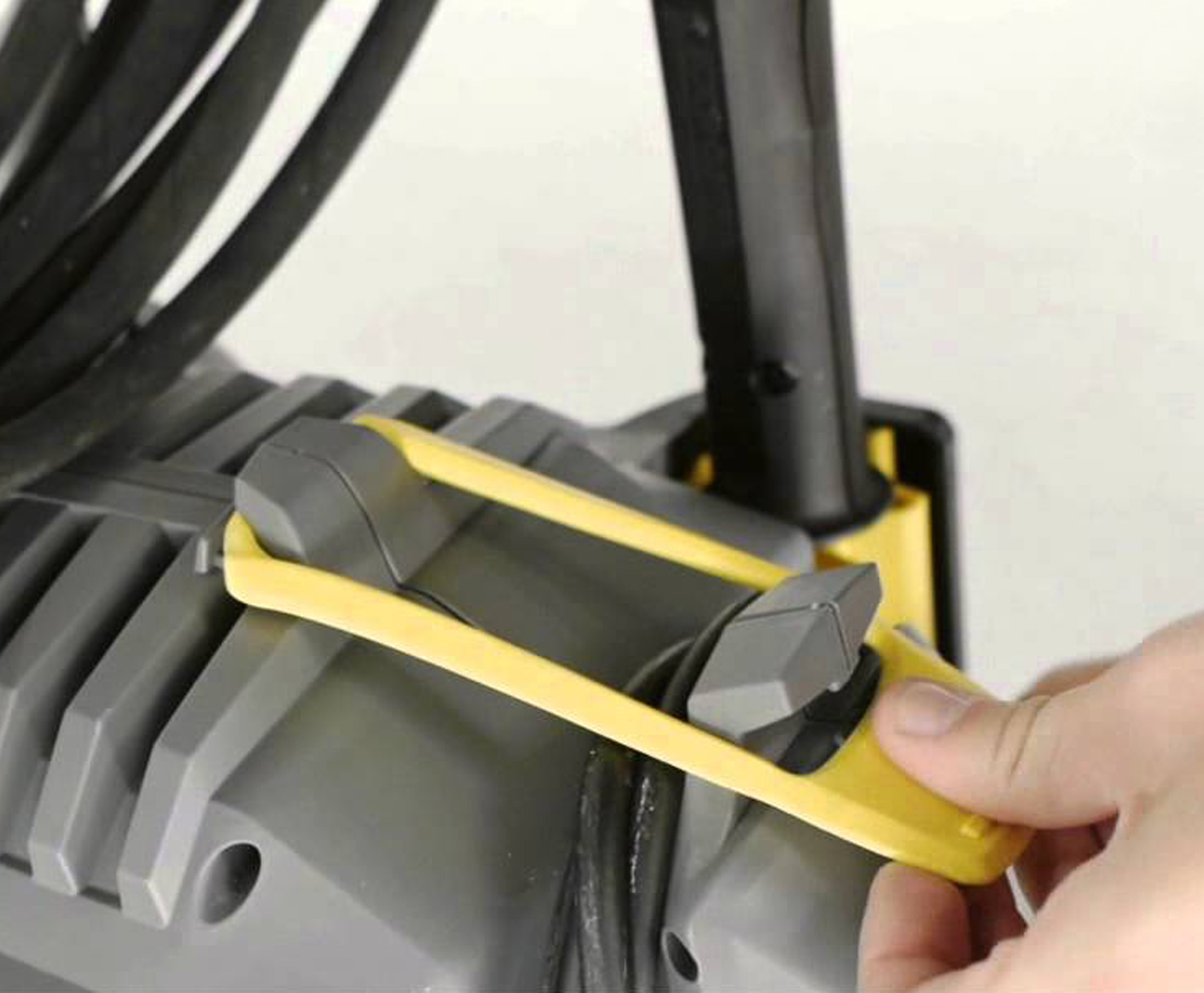

Rubber strap for securing power cable
7 / 8

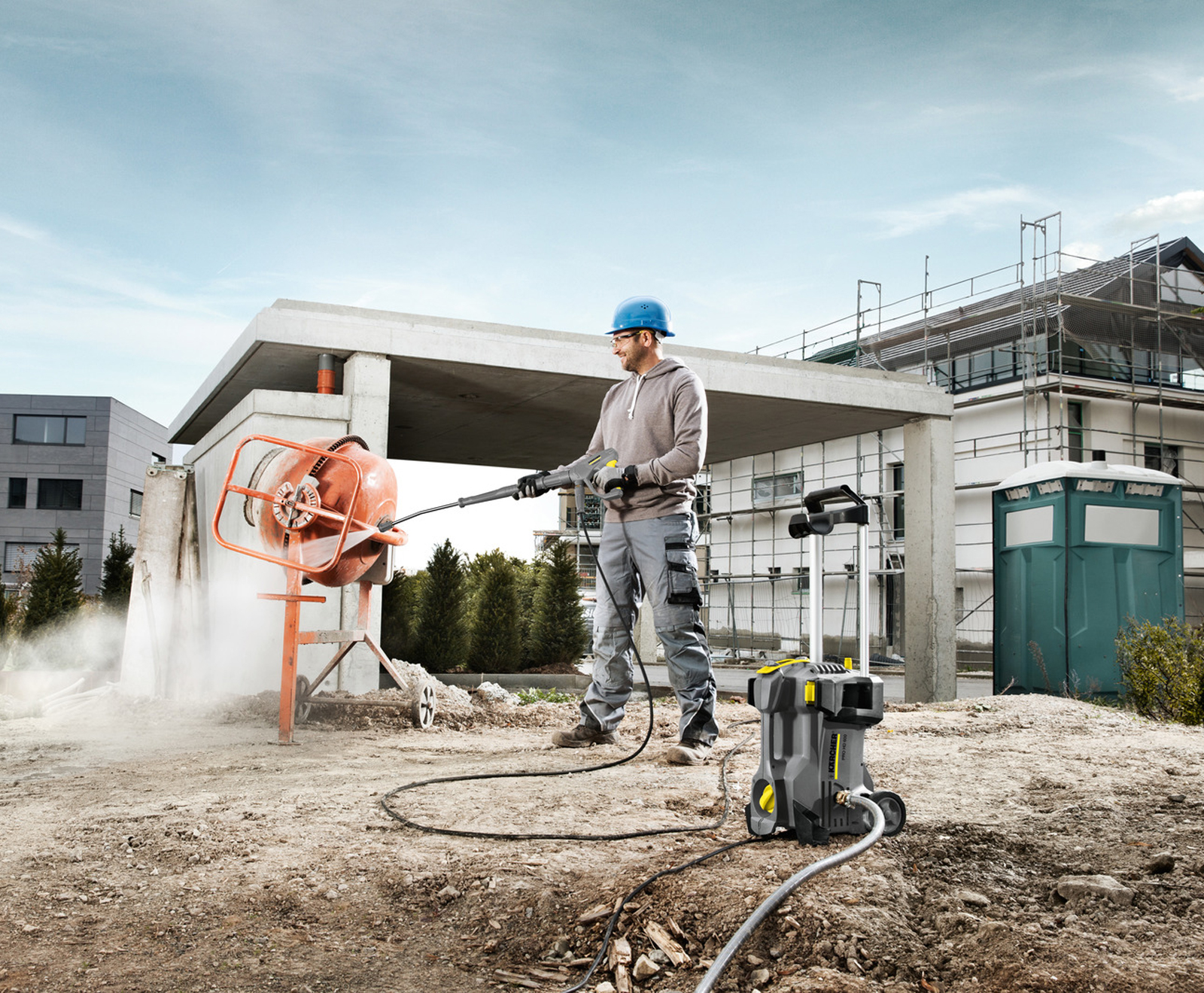

Use in construction site
8 / 8

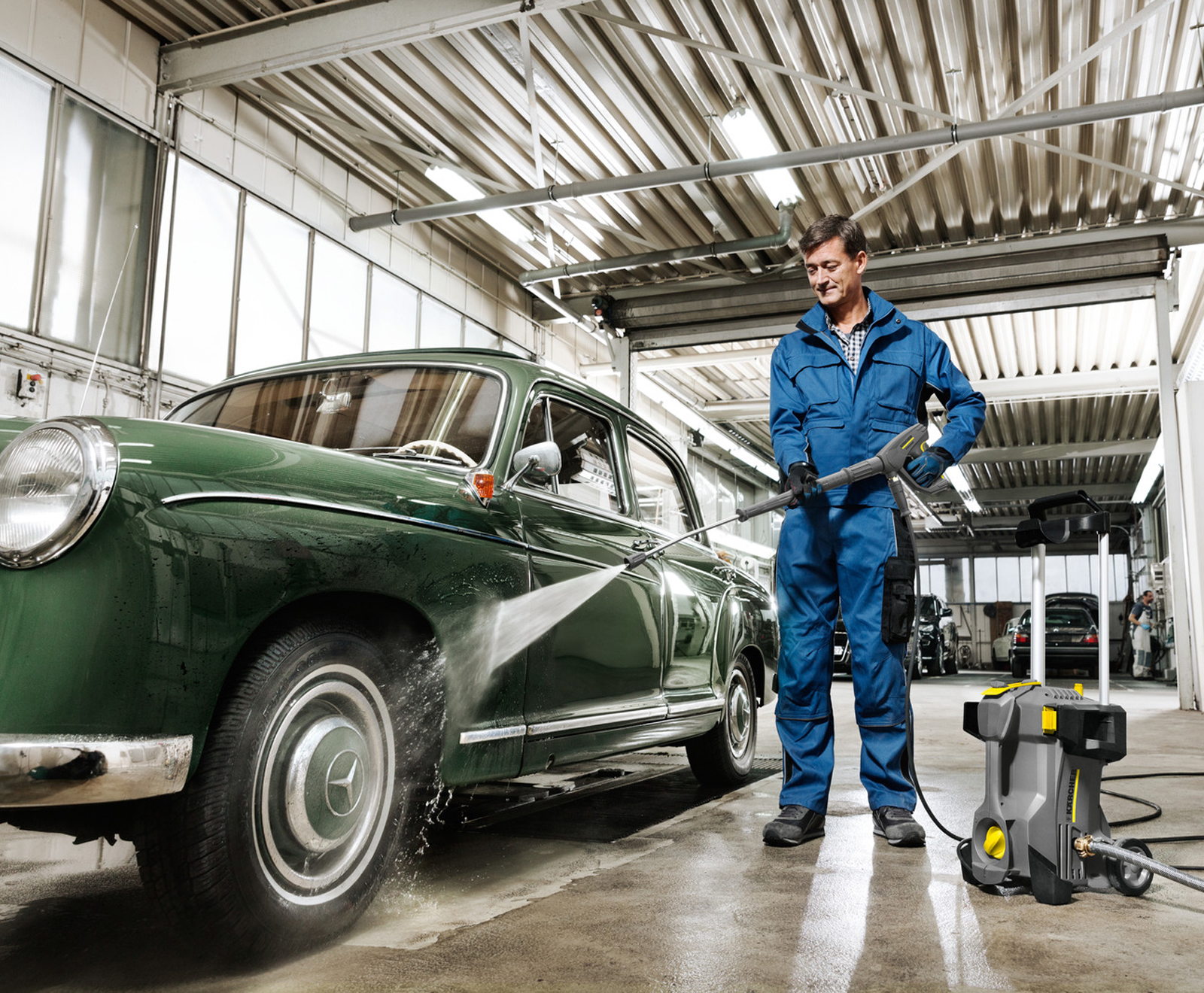

For cleaning cars

HD 5/11 P (part number: 1.520-960.0)

EASY!Force high-pressure gun

Integrated carrying handle

Horizontal operation possible

Nozzle compartment

Rubber strap for securing power cable

Use in construction site

For cleaning cars








DESCRIPTION



The "HD 5/11 P" portable high-pressure cleaner impresses with its compact construction style, low weight and outstanding mobility. The machine features a reliable three-piston axial pump with brass cylinder head. An additional carrying handle and the extendable push handle make it easier to transport the machine and store it in small spaces. Suitable for vertical and horizontal operation. The practical accessory storage features include a nozzle compartment, screw connection (M 18 x 1.5) for Surface Cleaner, and a practical rubber band for securing the power cable. The automatic pressure relief system impresses by offering clear advantages: it protects the components, extends the service life, reduces repair and maintenance costs and lowers the pulling force on the new EASY!Force high-pressure gun. This also makes use of the recoil force of the high-pressure jet to reduce the holding force to zero. The EASY!Lock quick-release fasteners, which are also new, make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Excellent mobility
The integrated carrying handle on the front of the machine enables easy loading and convenient transport.
Compact construction style and low weight.


Flexibility
Vertical and horizontal operation possible.
Separate parking and transport position for the spray unit.
The machine offers maximum stability in horizontal operation.


Quality
The automatic pressure relief protects the components and extends the service life of the machine.
High-quality brass cylinder head.


Accessory storage
Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
Practical nozzle compartments for triple nozzle and rotary nozzle.
Rubber strap for fixing the pressure hose.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 230 / 50

Flow rate (l/h)
490

Working pressure (bar/MPa)
110 / 11

Max. pressure (bar/MPa)
160 / 16

Connection load (kW)
2.2

Power cable (m)
5

Weight without accessories (kg)
20.6

Ship weight incl. packaging (kg)
22.8

Dimensions (L × W × H) (mm)
351 x 312 x 904

Spray gun, EASY!Force
High-pressure hose, 10 m
Spray lance, 840 mm
Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

Safety instructions

  Specification   Shortlist of spare parts   Operating instructions   Safety instructions



HD 5/11 P

The portable class "HD 5/11 P" is compact, light and mobile. Equipment details: carrying handle, brass cylinder head and automatic pressure relief. For vertical and horizontal operation.





1 / 8
HD 5/11 P (part number: 1.520-960.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Integrated carrying handle
4 / 8
Horizontal operation possible
5 / 8
Nozzle compartment
6 / 8
Rubber strap for securing power cable
7 / 8
Use in construction site
8 / 8
For cleaning cars

HD 5/11 P (part number: 1.520-960.0)

EASY!Force high-pressure gun

Integrated carrying handle

Horizontal operation possible

Nozzle compartment

Rubber strap for securing power cable

Use in construction site

For cleaning cars








DESCRIPTION



The "HD 5/11 P" portable high-pressure cleaner impresses with its compact construction style, low weight and outstanding mobility. The machine features a reliable three-piston axial pump with brass cylinder head. An additional carrying handle and the extendable push handle make it easier to transport the machine and store it in small spaces. Suitable for vertical and horizontal operation. The practical accessory storage features include a nozzle compartment, screw connection (M 18 x 1.5) for Surface Cleaner, and a practical rubber band for securing the power cable. The automatic pressure relief system impresses by offering clear advantages: it protects the components, extends the service life, reduces repair and maintenance costs and lowers the pulling force on the new EASY!Force high-pressure gun. This also makes use of the recoil force of the high-pressure jet to reduce the holding force to zero. The EASY!Lock quick-release fasteners, which are also new, make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Excellent mobility
The integrated carrying handle on the front of the machine enables easy loading and convenient transport.
Compact construction style and low weight.


Flexibility
Vertical and horizontal operation possible.
Separate parking and transport position for the spray unit.
The machine offers maximum stability in horizontal operation.


Quality
The automatic pressure relief protects the components and extends the service life of the machine.
High-quality brass cylinder head.


Accessory storage
Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
Practical nozzle compartments for triple nozzle and rotary nozzle.
Rubber strap for fixing the pressure hose.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 230 / 50

Flow rate (l/h)
490

Working pressure (bar/MPa)
110 / 11

Max. pressure (bar/MPa)
160 / 16

Connection load (kW)
2.2

Power cable (m)
5

Weight without accessories (kg)
20.6

Ship weight incl. packaging (kg)
22.8

Dimensions (L × W × H) (mm)
351 x 312 x 904

Spray gun, EASY!Force
High-pressure hose, 10 m
Spray lance, 840 mm
Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

Safety instructions

  Specification   Shortlist of spare parts   Operating instructions   Safety instructions



HD 5/11 P

The portable class "HD 5/11 P" is compact, light and mobile. Equipment details: carrying handle, brass cylinder head and automatic pressure relief. For vertical and horizontal operation.





1 / 8
HD 5/11 P (part number: 1.520-960.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Integrated carrying handle
4 / 8
Horizontal operation possible
5 / 8
Nozzle compartment
6 / 8
Rubber strap for securing power cable
7 / 8
Use in construction site
8 / 8
For cleaning cars







DESCRIPTION



The "HD 5/11 P" portable high-pressure cleaner impresses with its compact construction style, low weight and outstanding mobility. The machine features a reliable three-piston axial pump with brass cylinder head. An additional carrying handle and the extendable push handle make it easier to transport the machine and store it in small spaces. Suitable for vertical and horizontal operation. The practical accessory storage features include a nozzle compartment, screw connection (M 18 x 1.5) for Surface Cleaner, and a practical rubber band for securing the power cable. The automatic pressure relief system impresses by offering clear advantages: it protects the components, extends the service life, reduces repair and maintenance costs and lowers the pulling force on the new EASY!Force high-pressure gun. This also makes use of the recoil force of the high-pressure jet to reduce the holding force to zero. The EASY!Lock quick-release fasteners, which are also new, make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Excellent mobility
The integrated carrying handle on the front of the machine enables easy loading and convenient transport.
Compact construction style and low weight.


Flexibility
Vertical and horizontal operation possible.
Separate parking and transport position for the spray unit.
The machine offers maximum stability in horizontal operation.


Quality
The automatic pressure relief protects the components and extends the service life of the machine.
High-quality brass cylinder head.


Accessory storage
Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
Practical nozzle compartments for triple nozzle and rotary nozzle.
Rubber strap for fixing the pressure hose.



SPECIFICATIONS



Technical data



Current type (Ph/V/Hz)
1 / 230 / 50


Flow rate (l/h)
490


Working pressure (bar/MPa)
110 / 11


Max. pressure (bar/MPa)
160 / 16


Connection load (kW)
2.2


Power cable (m)
5


Weight without accessories (kg)
20.6


Ship weight incl. packaging (kg)
22.8


Dimensions (L × W × H) (mm)
351 x 312 x 904



Equipment



Spray gun, EASY!Force


High-pressure hose, 10 m


Spray lance, 840 mm


Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

  Specification   Shortlist of spare parts   Operating instructions


Safety instructions

  Safety instructions


VIDEOS



  • Application Demonstration

  • Feature Demonstration



APPLICATION AREAS



Facade cleaning


Floor and wall cleaning


Outside areas


Vehicles


Machines and devices
