HD 6/13 C

Practical, mobile, versatile: the "HD 6/13 C" cold water high-pressure cleaner for vertical and horizontal operation. With accessory storage, brass cylinder head and automatic pressure relief.





1 / 8

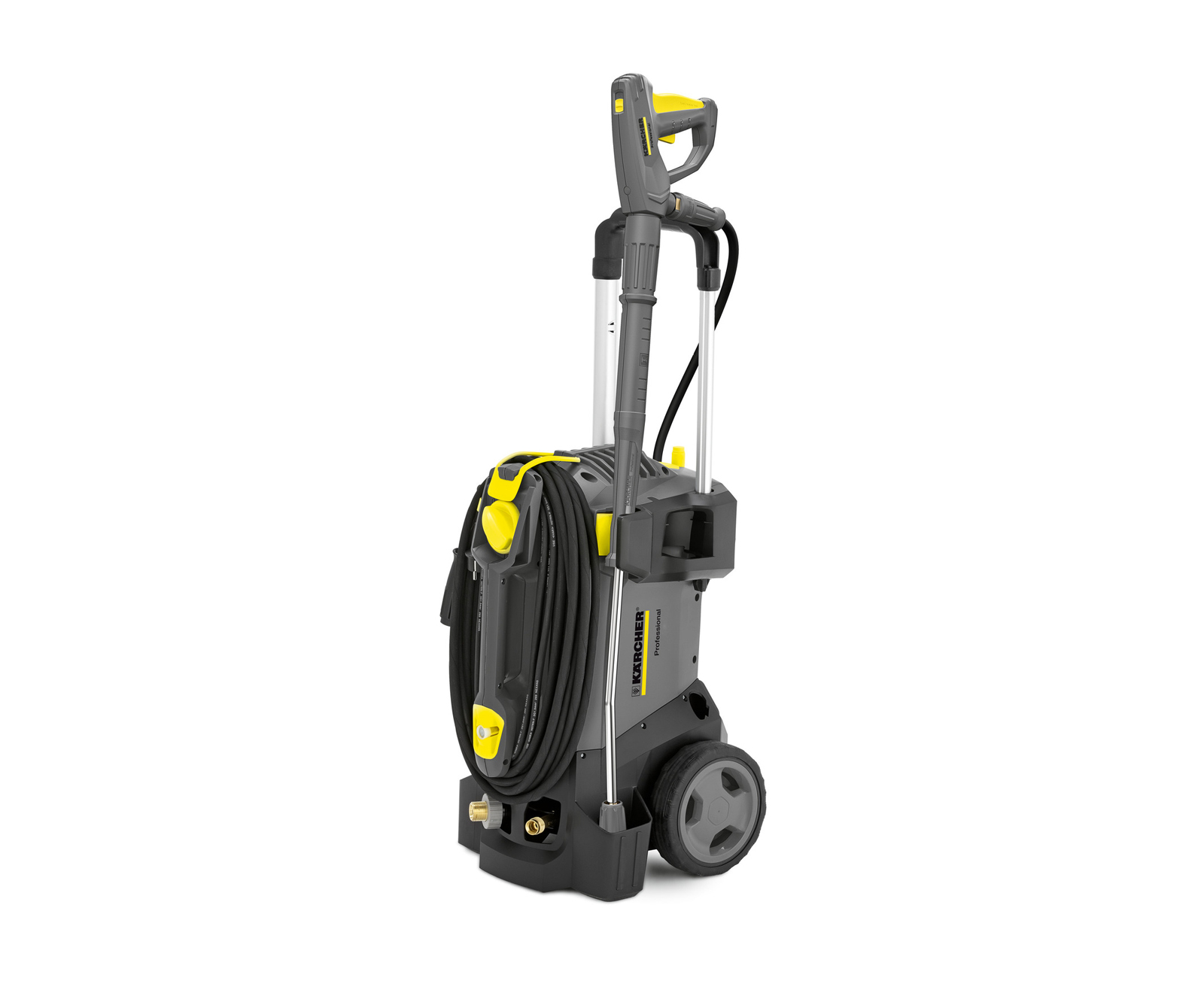

HD 6/13 C (part number: 1.520-950.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Integrated carrying handle
4 / 8
Horizontal operation possible
5 / 8
Excellent mobility
6 / 8
Rubber strap for fixing the pressure hose
7 / 8
For cleaning walls
8 / 8
For cleaning streets

HD 6/13 C (part number: 1.520-950.0)

EASY!Force high-pressure gun

Integrated carrying handle

Horizontal operation possible

Excellent mobility

Rubber strap for fixing the pressure hose

For cleaning walls

For cleaning streets








DESCRIPTION



The compact, lightweight and versatile "HD 6/13 C" cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation. The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life. At the same time, it impresses with innovative new developments that increase working convenience for the operator in the long term by ensuring effortless operation and time-saving set-up and dismantling. The EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity. Overall, a comprehensive equipment package for excellent cleaning results, with a high level of convenience and a long service life.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Mobility
The integrated carrying handle on the front of the machine enables easy loading and convenient transport.
Push handle can be retracted at the push of a button.
Compact construction style.


Flexibility
Vertical and horizontal operation possible.
The wheels are not on during horizontal operation. As such, the machine offers maximum stability.
Separate park and transport position for the spray unit.


Quality
The automatic pressure relief protects the components and extends the service life of the machine.
High-quality brass cylinder head.
Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.


Accessory storage
Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
Practical nozzle compartments for triple nozzle and rotary nozzle.
Rubber strap for fixing the pressure hose.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 230 / 50

Flow rate (l/h)
590

Working pressure (bar/MPa)
130 / 13

Max. pressure (bar/MPa)
190 / 19

Connection load (kW)
2.9

Power cable (m)
5

Weight without accessories (kg)
25.7

Ship weight incl. packaging (kg)
28.1

Dimensions (L × W × H) (mm)
380 x 360 x 930

Spray gun, EASY!Force
High-pressure hose, 10 m
Spray lance, 840 mm
Triple nozzle (0°/25°/40°), Manual
Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

Safety instructions

  Specification   Shortlist of spare parts   Operating instructions   Safety instructions



HD 6/13 C

Practical, mobile, versatile: the "HD 6/13 C" cold water high-pressure cleaner for vertical and horizontal operation. With accessory storage, brass cylinder head and automatic pressure relief.





1 / 8
HD 6/13 C (part number: 1.520-950.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Integrated carrying handle
4 / 8
Horizontal operation possible
5 / 8
Excellent mobility
6 / 8
Rubber strap for fixing the pressure hose
7 / 8
For cleaning walls
8 / 8
For cleaning streets

HD 6/13 C (part number: 1.520-950.0)

EASY!Force high-pressure gun

Integrated carrying handle

Horizontal operation possible

Excellent mobility

Rubber strap for fixing the pressure hose

For cleaning walls

For cleaning streets








DESCRIPTION



The compact, lightweight and versatile "HD 6/13 C" cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation. The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life. At the same time, it impresses with innovative new developments that increase working convenience for the operator in the long term by ensuring effortless operation and time-saving set-up and dismantling. The EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity. Overall, a comprehensive equipment package for excellent cleaning results, with a high level of convenience and a long service life.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Mobility
The integrated carrying handle on the front of the machine enables easy loading and convenient transport.
Push handle can be retracted at the push of a button.
Compact construction style.


Flexibility
Vertical and horizontal operation possible.
The wheels are not on during horizontal operation. As such, the machine offers maximum stability.
Separate park and transport position for the spray unit.


Quality
The automatic pressure relief protects the components and extends the service life of the machine.
High-quality brass cylinder head.
Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.


Accessory storage
Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
Practical nozzle compartments for triple nozzle and rotary nozzle.
Rubber strap for fixing the pressure hose.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 230 / 50

Flow rate (l/h)
590

Working pressure (bar/MPa)
130 / 13

Max. pressure (bar/MPa)
190 / 19

Connection load (kW)
2.9

Power cable (m)
5

Weight without accessories (kg)
24.4

Ship weight incl. packaging (kg)
28.1

Dimensions (L × W × H) (mm)
380 x 360 x 930

Spray gun, EASY!Force
High-pressure hose, 10 m
Spray lance, 840 mm
Triple nozzle (0°/25°/40°), Manual
Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

Safety instructions

  Specification   Shortlist of spare parts   Operating instructions   Safety instructions



HD 6/13 C

Practical, mobile, versatile: the "HD 6/13 C" cold water high-pressure cleaner for vertical and horizontal operation. With accessory storage, brass cylinder head and automatic pressure relief.





1 / 8
HD 6/13 C (part number: 1.520-950.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Integrated carrying handle
4 / 8
Horizontal operation possible
5 / 8
Excellent mobility
6 / 8
Rubber strap for fixing the pressure hose
7 / 8
For cleaning walls
8 / 8
For cleaning streets







DESCRIPTION



The compact, lightweight and versatile "HD 6/13 C" cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation. The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life. At the same time, it impresses with innovative new developments that increase working convenience for the operator in the long term by ensuring effortless operation and time-saving set-up and dismantling. The EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity. Overall, a comprehensive equipment package for excellent cleaning results, with a high level of convenience and a long service life.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Mobility
The integrated carrying handle on the front of the machine enables easy loading and convenient transport.
Push handle can be retracted at the push of a button.
Compact construction style.


Flexibility
Vertical and horizontal operation possible.
The wheels are not on during horizontal operation. As such, the machine offers maximum stability.
Separate park and transport position for the spray unit.


Quality
The automatic pressure relief protects the components and extends the service life of the machine.
High-quality brass cylinder head.
Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.


Accessory storage
Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
Practical nozzle compartments for triple nozzle and rotary nozzle.
Rubber strap for fixing the pressure hose.



SPECIFICATIONS



Technical data



Current type (Ph/V/Hz)
1 / 230 / 50


Flow rate (l/h)
590


Working pressure (bar/MPa)
130 / 13


Max. pressure (bar/MPa)
190 / 19


Connection load (kW)
2.9


Power cable (m)
5


Weight without accessories (kg)
24.4


Ship weight incl. packaging (kg)
28.1


Dimensions (L × W × H) (mm)
380 x 360 x 930



Equipment



Spray gun, EASY!Force


High-pressure hose, 10 m


Spray lance, 840 mm


Triple nozzle (0°/25°/40°), Manual


Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

  Specification   Shortlist of spare parts   Operating instructions


Safety instructions

  Safety instructions


VIDEOS



  • Application Demonstration (HD Compact Class with additional purchase accessories)

  • Feature Demonstration (HD Compact Class with additional purchase accessories)



APPLICATION AREAS



Facade cleaning


Floor and wall cleaning


Outside areas


Vehicles


Machines and devices
