Puzzi 8/1 C

The Puzzi 8/1 C is a powerful entry-level spray extraction machine. The spray extraction machine can be used for upholstery cleaning or for removing stains on carpets. Because an extremely small amount of residual moisture remains after cleaning, cleaned carpets and upholstery can be quickly used again. Equipped as standard with a spray vacuum hose and ergonomic hand nozzle.





1 / 8
Puzzi 8/1 C (part number: 1.100-225.0)
2 / 8
Carrying handle
3 / 8
Upholstery nozzle
4 / 8
Removable dirty water tank
5 / 8
Large foot switch
6 / 8
Cable hook
7 / 8
Use in vehicle interiors
8 / 8
Use in cleaning sofas

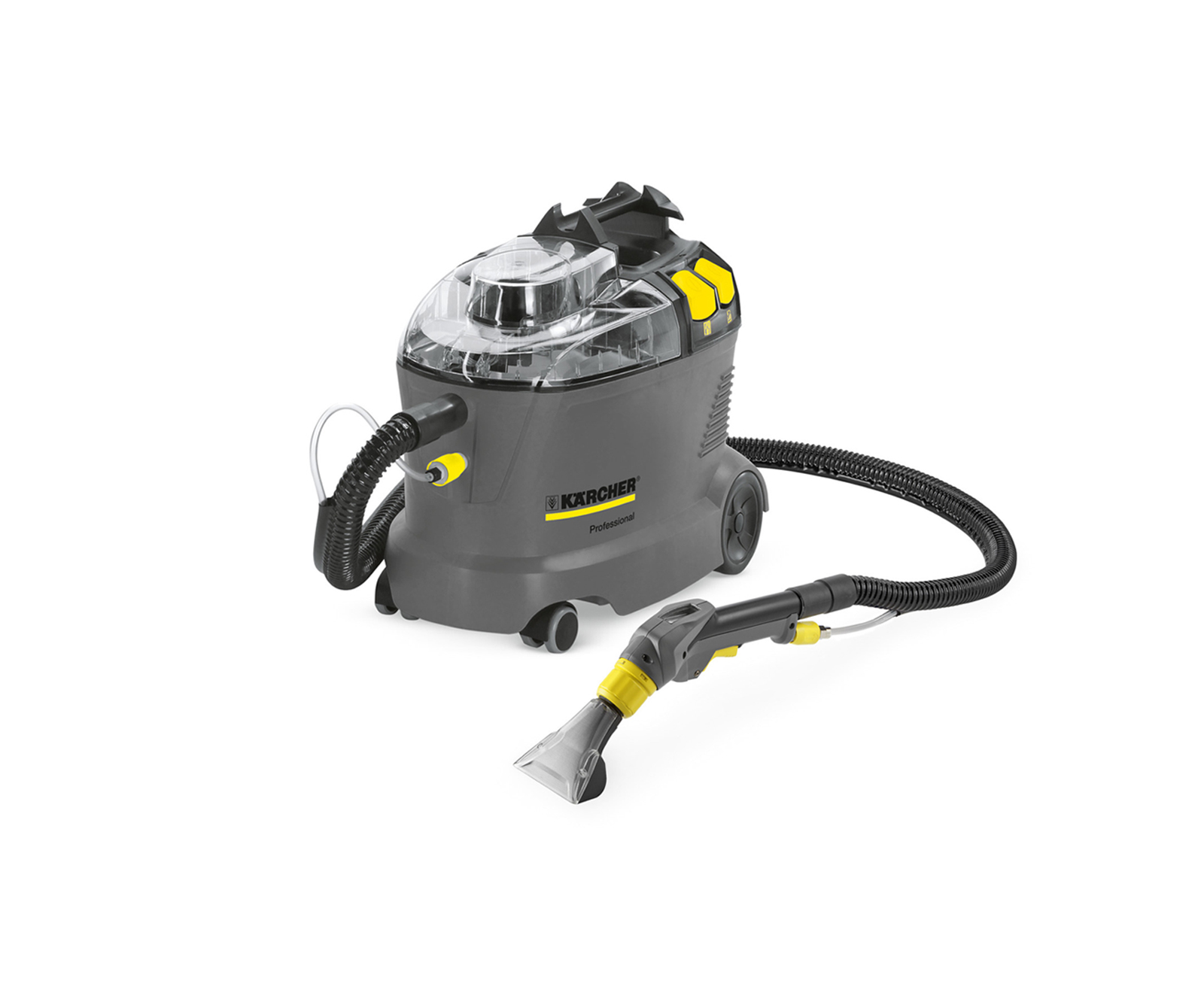

Puzzi 8/1 C (part number: 1.100-225.0)

Carrying handle

Upholstery nozzle

Removable dirty water tank

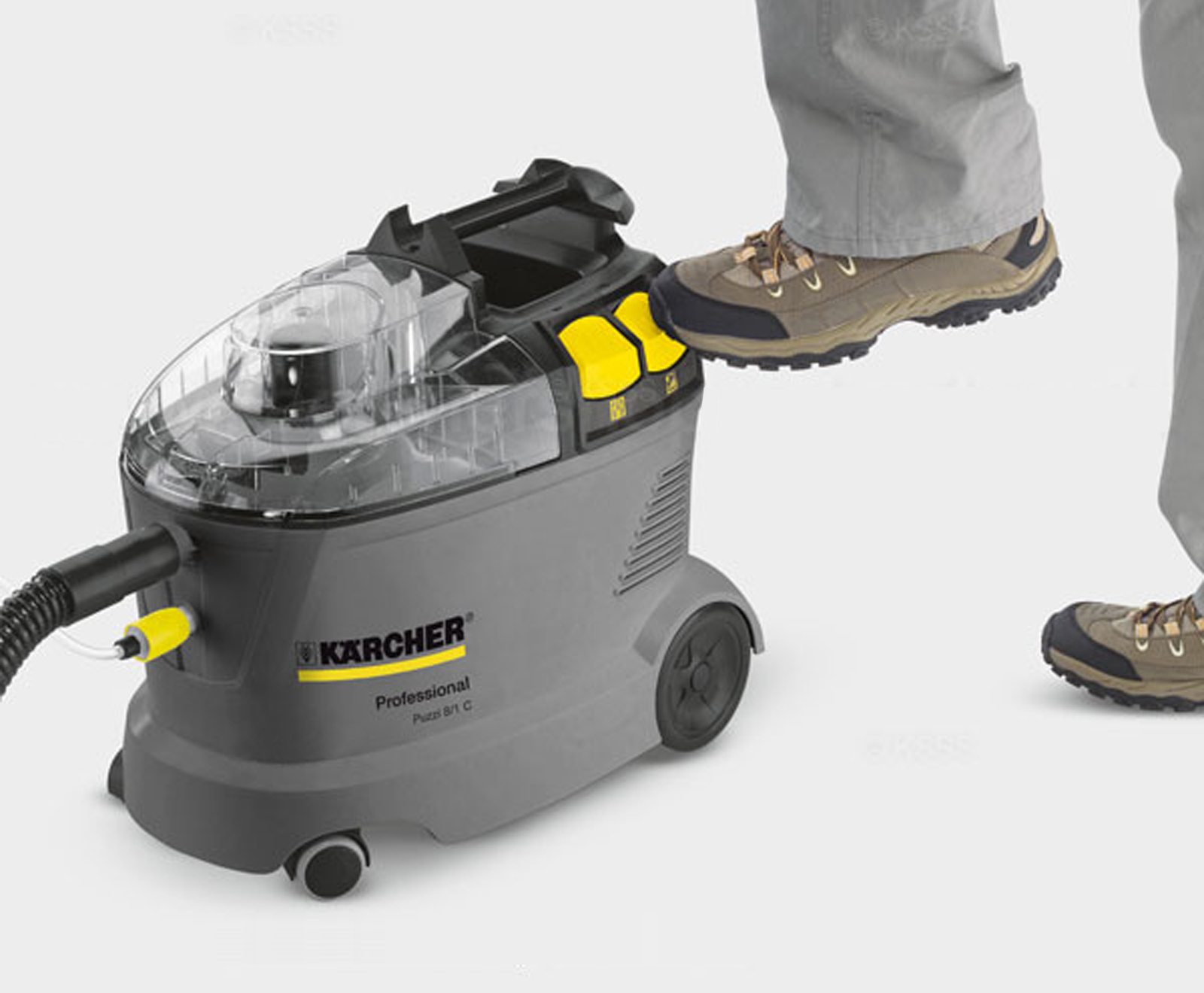

Large foot switch

Cable hook

Use in vehicle interiors

Use in cleaning sofas








DESCRIPTION



Powerful and compact spray extraction machine for cleaning small carpets. It offers the best return suction results of all comparable competitor machines. The Puzzi 8/1 C allows textile surfaces to be used again in no time. The power cord can be positioned on the foldout cable hook. Integrated floor nozzle holder on the machine.



FEATURES AND BENEFITS



Low weight
At 9.8 kg, the Puzzi 8/1 C is easy to carry and 35% lighter than the competition.
Ideal for intermediate cleaning, thanks to rapid drying. Easily transported, even over obstacles and stairs.
Integrated carrying handle for transport with one hand.


Compact design
The Puzzi 8/1 C also shows its strengths when cleaning upholstery and vehicle interiors.
Compact, space-saving design.


Convenient handling and good accessibility
Easily removable dirty water tank, easy disposal of dirty water and refilling of the fresh water tank.


User-friendly operation
A large foot switch for ergonomic operation makes it easier to concentrate on the cleaning task.



SPECIFICATIONS



Technical data

Equipment



Max. area performance (m²/h)
12 - 18

Air flow rate (l/s)
61

Vacuum (mbar/kPa)
230 / 23

Spray rate (l/min)
1

Spray pressure (bar)
1

Fresh/dirty water tank (l)
8 / 7

Turbine power (W)
1200

Pump power (W)
40

Voltage (V)
220 - 240

Frequency (Hz)
50 - 60

Weight without accessories (kg)
9.8

Ship weight incl. packaging (kg)
13.4

Dimensions (L × W × H) (mm)
530 x 330 x 440

Spray hose with integrated water feed, 2.5 m
Integral accessory holder for manual nozzle
Power cord, 7.5 m
Upholstery nozzle
Cable hook
Handle with trigger



DOWNLOADS



Product information

Operating Instructions

Quickstart instructions

Safety instructions

  Specification   Operating instructions   Quickstart instructions   Safety instructions



Puzzi 8/1 C

The Puzzi 8/1 C is a powerful entry-level spray extraction machine. The spray extraction machine can be used for upholstery cleaning or for removing stains on carpets. Because an extremely small amount of residual moisture remains after cleaning, cleaned carpets and upholstery can be quickly used again. Equipped as standard with a spray vacuum hose and ergonomic hand nozzle.





1 / 8
Puzzi 8/1 C (part number: 1.100-225.0)
2 / 8
Carrying handle
3 / 8
Upholstery nozzle
4 / 8
Removable dirty water tank
5 / 8
Large foot switch
6 / 8
Cable hook
7 / 8
Use in vehicle interiors
8 / 8
Use in cleaning sofas

Puzzi 8/1 C (part number: 1.100-225.0)

Carrying handle

Upholstery nozzle

Removable dirty water tank

Large foot switch

Cable hook

Use in vehicle interiors

Use in cleaning sofas








DESCRIPTION



Powerful and compact spray extraction machine for cleaning small carpets. It offers the best return suction results of all comparable competitor machines. The Puzzi 8/1 C allows textile surfaces to be used again in no time. The power cord can be positioned on the foldout cable hook. Integrated floor nozzle holder on the machine.



FEATURES AND BENEFITS



Low weight
At 9.8 kg, the Puzzi 8/1 C is easy to carry and 35% lighter than the competition.
Ideal for intermediate cleaning, thanks to rapid drying. Easily transported, even over obstacles and stairs.
Integrated carrying handle for transport with one hand.


Compact design
The Puzzi 8/1 C also shows its strengths when cleaning upholstery and vehicle interiors.
Compact, space-saving design.


Convenient handling and good accessibility
Easily removable dirty water tank, easy disposal of dirty water and refilling of the fresh water tank.


User-friendly operation
A large foot switch for ergonomic operation makes it easier to concentrate on the cleaning task.



SPECIFICATIONS



Technical data

Equipment



Max. area performance (m²/h)
12 - 18

Air flow rate (l/s)
61

Vacuum (mbar/kPa)
230 / 23

Spray rate (l/min)
1

Spray pressure (bar)
1

Fresh/dirty water tank (l)
8 / 7

Turbine power (W)
1200

Pump power (W)
40

Voltage (V)
220 - 240

Frequency (Hz)
50 - 60

Weight without accessories (kg)
9.8

Ship weight incl. packaging (kg)
13.4

Dimensions (L × W × H) (mm)
530 x 330 x 440

Spray hose with integrated water feed, 2.5 m
Integral accessory holder for manual nozzle
Power cord, 7.5 m
Upholstery nozzle
Cable hook
Handle with trigger



DOWNLOADS



Product information

Operating Instructions

Quickstart instructions

Safety instructions

  Specification   Operating instructions   Quickstart instructions   Safety instructions



Puzzi 8/1 C

The Puzzi 8/1 C is a powerful entry-level spray extraction machine. The spray extraction machine can be used for upholstery cleaning or for removing stains on carpets. Because an extremely small amount of residual moisture remains after cleaning, cleaned carpets and upholstery can be quickly used again. Equipped as standard with a spray vacuum hose and ergonomic hand nozzle.





1 / 8
Puzzi 8/1 C (part number: 1.100-225.0)
2 / 8
Carrying handle
3 / 8
Upholstery nozzle
4 / 8
Removable dirty water tank
5 / 8
Large foot switch
6 / 8
Cable hook
7 / 8
Use in vehicle interiors
8 / 8
Use in cleaning sofas







DESCRIPTION



Powerful and compact spray extraction machine for cleaning small carpets. It offers the best return suction results of all comparable competitor machines. The Puzzi 8/1 C allows textile surfaces to be used again in no time. The power cord can be positioned on the foldout cable hook. Integrated floor nozzle holder on the machine.



FEATURES AND BENEFITS



Low weight
At 9.8 kg, the Puzzi 8/1 C is easy to carry and 35% lighter than the competition.
Ideal for intermediate cleaning, thanks to rapid drying. Easily transported, even over obstacles and stairs.
Integrated carrying handle for transport with one hand.


Compact design
The Puzzi 8/1 C also shows its strengths when cleaning upholstery and vehicle interiors.
Compact, space-saving design.


Convenient handling and good accessibility
Easily removable dirty water tank, easy disposal of dirty water and refilling of the fresh water tank.


User-friendly operation
A large foot switch for ergonomic operation makes it easier to concentrate on the cleaning task.



SPECIFICATIONS



Technical data



Max. area performance (m²/h)
12 - 18


Air flow rate (l/s)
61


Vacuum (mbar/kPa)
230 / 23


Spray rate (l/min)
1


Spray pressure (bar)
1


Fresh/dirty water tank (l)
8 / 7


Turbine power (W)
1200


Pump power (W)
40


Voltage (V)
220 - 240


Frequency (Hz)
50 - 60


Weight without accessories (kg)
9.8


Ship weight incl. packaging (kg)
13.4


Dimensions (L × W × H) (mm)
530 x 330 x 440



Equipment



Spray hose with integrated water feed, 2.5 m


Integral accessory holder for manual nozzle


Power cord, 7.5 m


Upholstery nozzle


Cable hook


Handle with trigger



DOWNLOADS



Product information

Operating Instructions

Quickstart instructions

  Specification   Operating instructions   Quickstart instructions


Safety instructions

  Safety instructions


VIDEOS



  • Kärcher Business Solutions: Transport

  •
  • Application Demostration of Different Machines



APPLICATION AREAS



Vehicle interiors


Houses


Carpets
