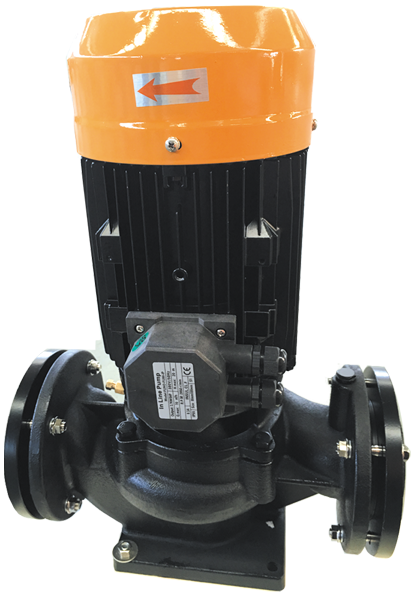

| Fuho pumps are in-line type and used for lower head applications. The suction and discharge are connected in a straight line making it less costly and simpler to install. The pumps are usually used in buildings for air conditioning and heating applications. |
| |
|
| Features |
| |
|
| • |
Compact size and light weight |
| • |
High efficiency and low operating noise level |
| • |
Can be installed either vertically and horizontally along piping |
| • |
Reliable high power motor provides maximum output and longer life |
| • |
High precision mechanical seal prevents leakage |
| |
|
| Technical Data |
| |
|
| • |
Maximum capacity: 1750 L/min |
| • |
Maximum head: 24 m |
| • |
Inlet/Outlet diameter: 32 mm to 100 mm |
| • |
Power: 0.5 HP to 10 HP |
| • |
Speed: 2850 rpm |
| |
|
| Applications |
| |
|
| • |
Domestic and commercial heating systems |
| • |
Domestic and commercial cooling systems |
| • |
Water circulation systems |
| • |
Water supply systems |
| • |
Drainage systems |
| • |
Water towers |
| |
|
| |
|
