| APE / CVF series are vertical multistage, in-line design with DIN flange or Victaulic coupling. All pumps are fitted with mechanical seals. |
| |
|
| Pump |
| |
|

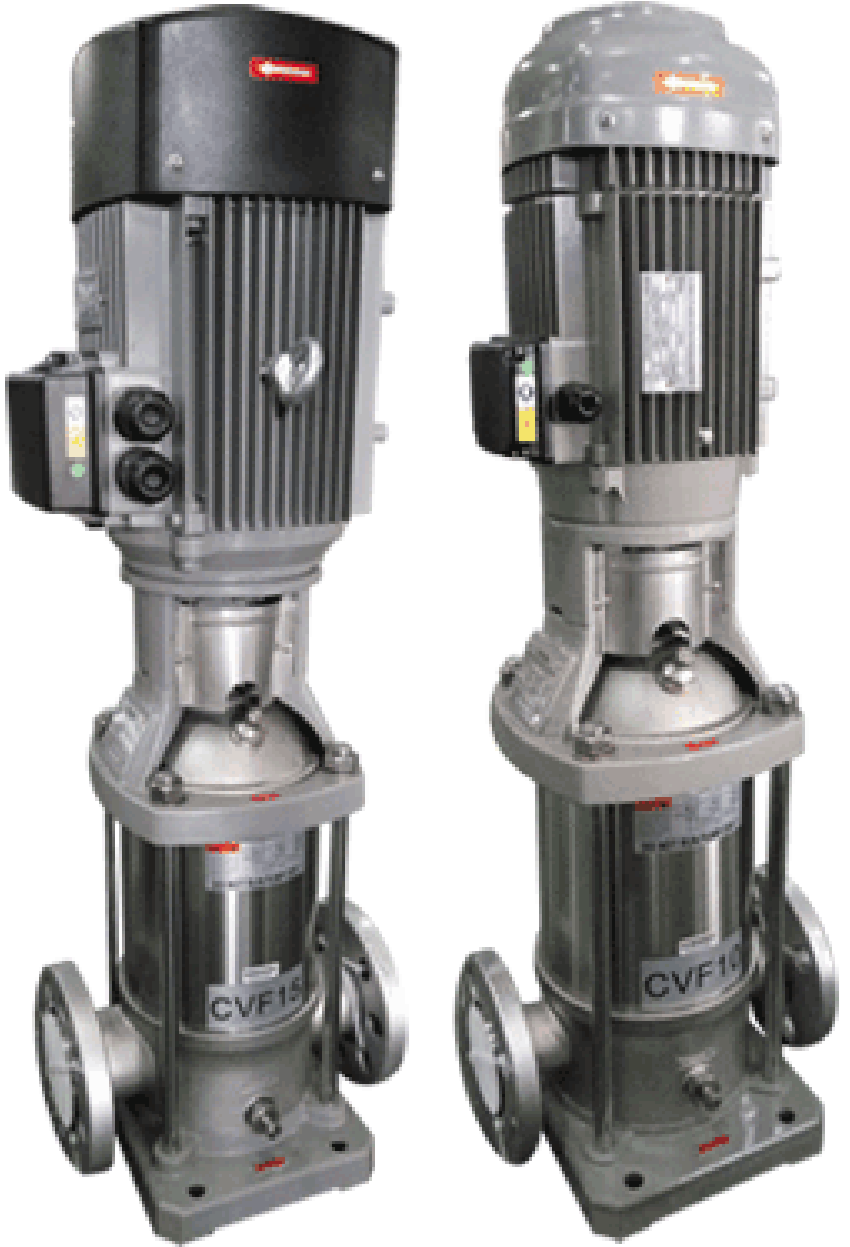

| The APE / CVF series water pumps are non-self-priming, vertical multistage centrifugal pumps, in-line design with suction and discharge ports in the same horizontal plane, available in DIN Flange or Victaulic connection. APE is with stainless steel 304. CVF is with stainless steel 316. The pumps are suitable for transporting clean water without aggressive chemical without solid particles. |
| |
|
| Operating Conditions |
| |
|
| • |
Liquid Temperature: -15 °C to +110 °C |
| • |
Maximum Ambient Temperature: +40 °C |
| • |
Flow Rate: 0.2 to 120 m3/h |
| • |
Head: up to 330 m |
| |
|
| Electrical Motor |
| |
|
| • |
Motor Efficiency: IEC, IE3 |
| • |
Electricity: 380/3/50 |
| • |
Insulation Class: F |
| • |
Protection Class: IP55 |
| |
|
| Applications |
| |
|
| • |
Agriculture |
| • |
Water supply and pressure boosting for buildings, water stations, water supply network |
| • |
Irrigation and agriculture |
| • |
Washing and cleaning systems |
| • |
Fire fighting systems |
| • |
Process water systems |
| • |
Water treatment systems |
| • |
Heating, ventilation and air-conditioning |
| • |
RO water and desalination application |
| |
|
| |
|
